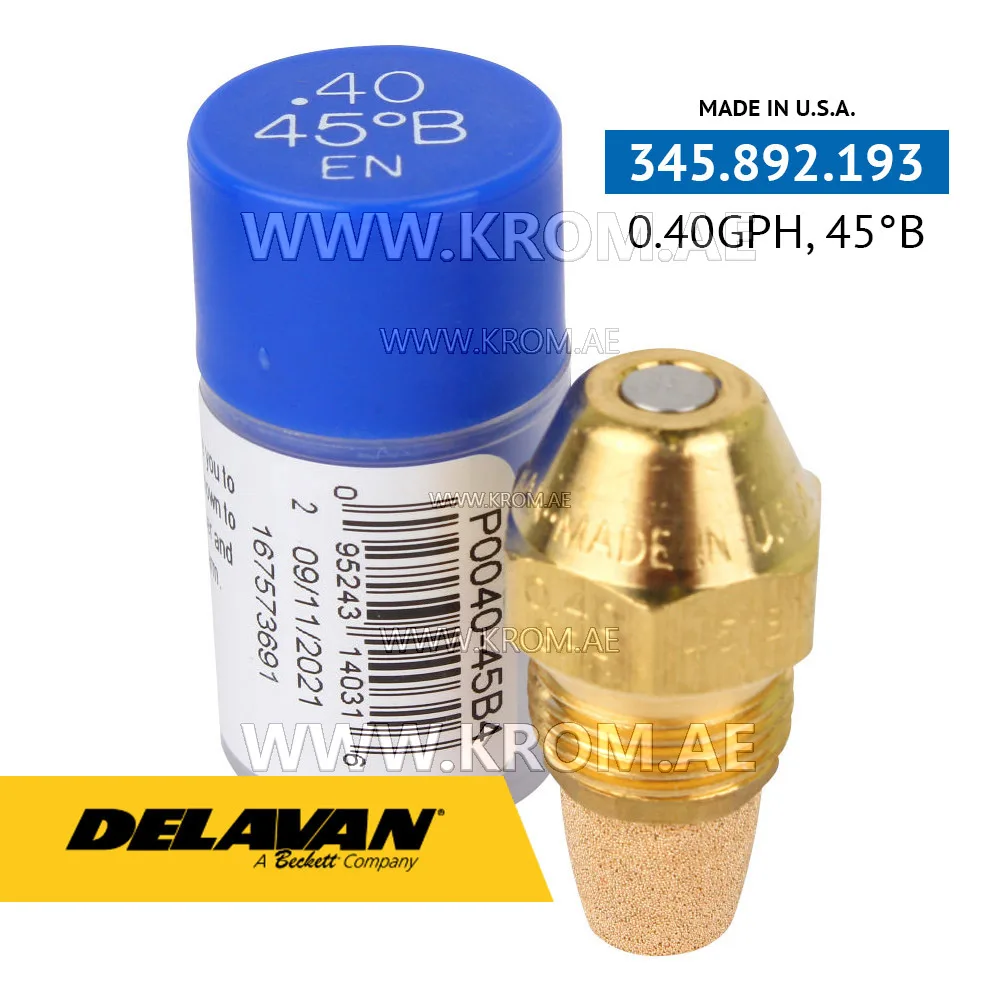

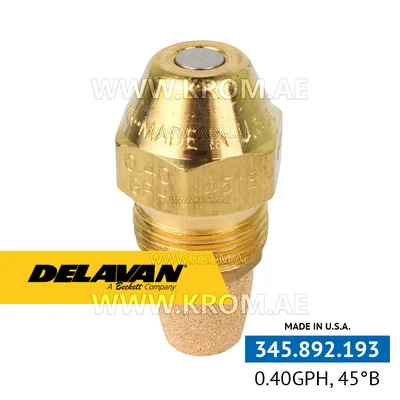

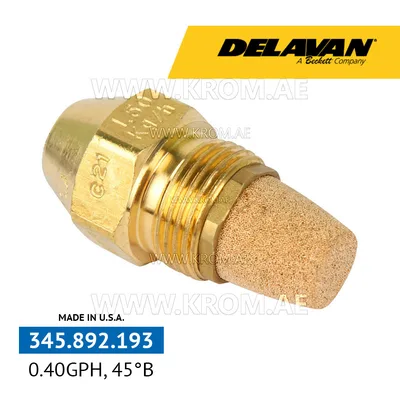

Delavan 0.40GPH, 45B (4) nozzle

Delavan P0040-45B4 oil nozzles play an important role in the burner, ensuring efficient and controlled combustion of fuel. The Delavan 0.40GPH, 45B (4) nozzles are responsible for spraying fuel into the smallest droplet, facilitating its effective ignition and combustion inside the burner. Delavan 0.40GPH, 45B (4) oil burner nozzles have different sizes and spray angles, allowing precise fuel distribution according to the specific requirements of the burner and heating system. The correct selection and installation of Delavan nozzles is necessary to achieve optimal combustion efficiency, reduce emissions and maximize overall burner performance. Proper maintenance and periodic replacement of nozzles are also necessary to ensure optimal burner operation. Delavan 0.40GPH, 45B (4) oil burner nozzle technical data: Capacity: 0.4 gallons/hour Spray angle: 45 degrees Nozzle type: B Delavan 0.40GPH, 45B (4) type B nozzles - nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
