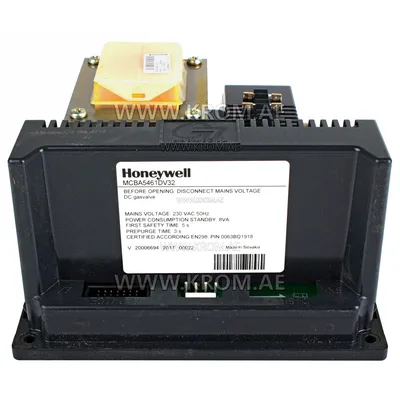

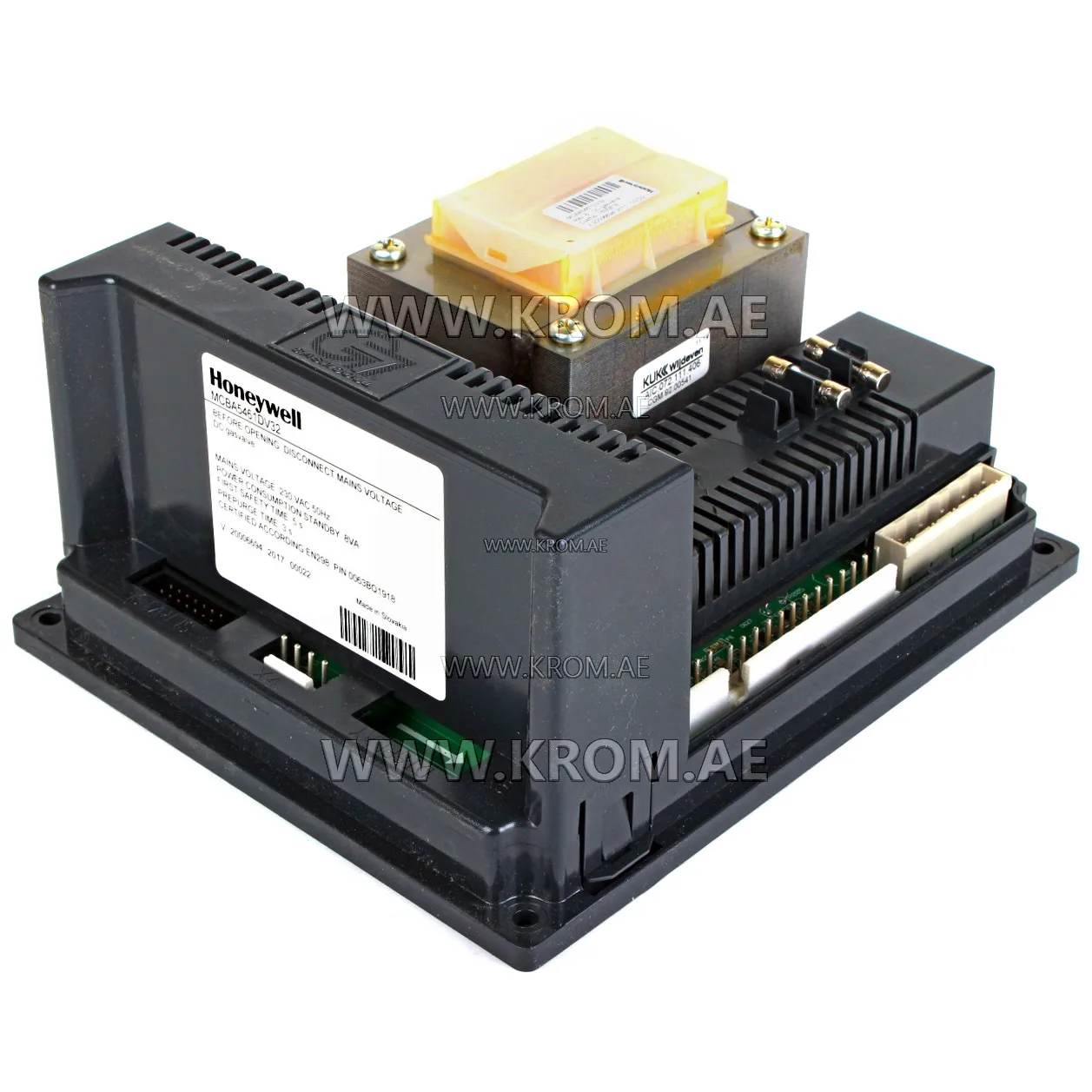

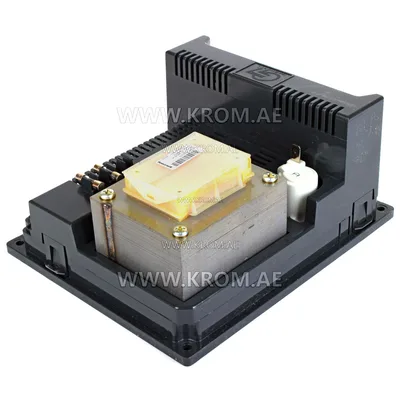

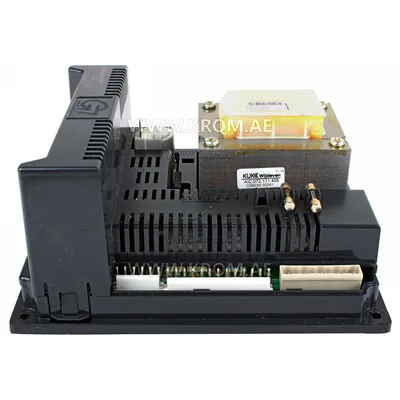

De Dietrich S59942 MCBA5461DV32 controller

A burner control (also called a control box or flame safeguard) orchestrates the ignition and safety sequence of an oil or gas burner. It starts the fan for pre-purge, checks the air pressure switch for correct airflow, energises the ignition transformer, opens the fuel valve, and then monitors the flame signal from the ionisation electrode or UV/IR detector. If the flame is not proven within the set safety time, the control locks out and must be manually reset. It also reads limit and safety pressure switches and drives the gas valve, oil solenoid, fan motor, and ignition transformer in the correct timed order. Such controls are selected by their exact series, supply voltage, safety and pre-purge times, flame detection method, and the physical connection pattern (base or plug). A replacement must match these parameters exactly. Even within the same brand, a control from a different series is not interchangeable; a mismatch in safety time creates a serious hazard, not just a nuisance. For modern wall-hung boilers, the same role is often performed by an electronic PCB that is matched to the boiler model. The De Dietrich S59942 MCBA5461DV32 controller, catalogue article 534.124.010, is a burner control box from this category. The part numbers shown are the manufacturer codes. When sourcing a direct replacement, always verify the series, supply voltage, and safety time rating against the original part’s label or the appliance documentation.
