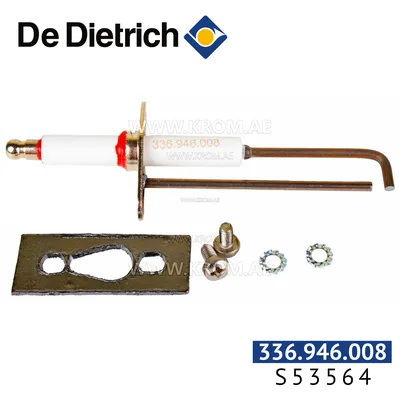

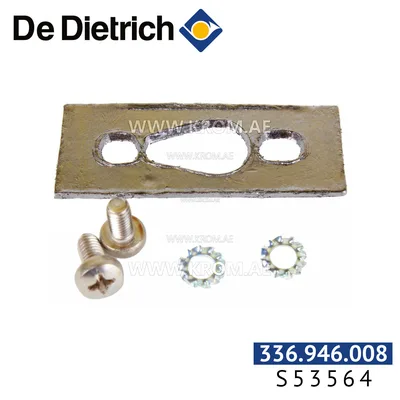

De Dietrich S53564 ignition electrode

This ignition electrode, listed under De Dietrich part reference S53564 and catalogue number 336.946.008, belongs to the category of ignition and ionization electrodes. Such components are located in the burner’s flame zone and serve either to generate the spark during the start sequence or to prove the flame by conducting a small rectified current through it. An ignition electrode is energized by the ignition transformer when the burner control calls for heat, creating a spark across a preset gap to light the fuel-air mixture. After flame is established, an ionization electrode (often a separate part but sometimes integrated into the same assembly) sends a flame signal to the burner control, which then maintains the gas valve open. When selecting an ignition electrode of this type, the key parameters include the electrode length and bend, the insulator diameter, the spark gap, the mounting flange geometry, and the specific burner series for which the shape was designed. These dimensions ensure correct positioning within the burner head and proper spark delivery. Typical failure modes on such electrodes include tip erosion from repeated sparking, cracking of the ceramic insulator due to thermal stress, sooting that shorts the spark, and a drifting gap that lengthens ignition time. A pilot burner, used in some burner designs, holds a small permanent or intermittent flame that lights the main burner and provides the flame signal; in such systems the ignition electrode may serve only for the pilot. This part works in conjunction with the ignition transformer, which steps up the mains voltage to create the high-energy spark, and with the burner control that sequences the pre-purge, spark, fuel admission, and flame verification phases. When replacing an electrode of this general type, always check the gap with a feeler gauge and ensure the ceramic insulator is free of cracks before installation. The electrode must be correctly seated and aligned with the pilot or main burner nozzle to avoid spark-to-ground faults.
