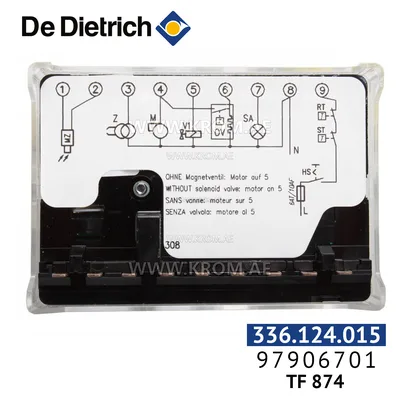

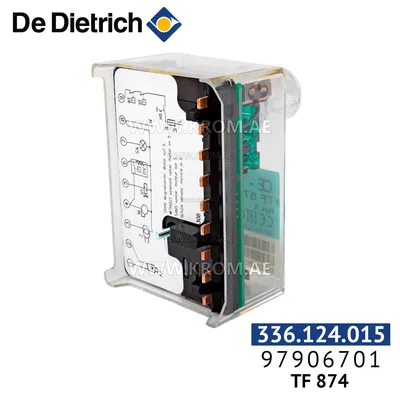

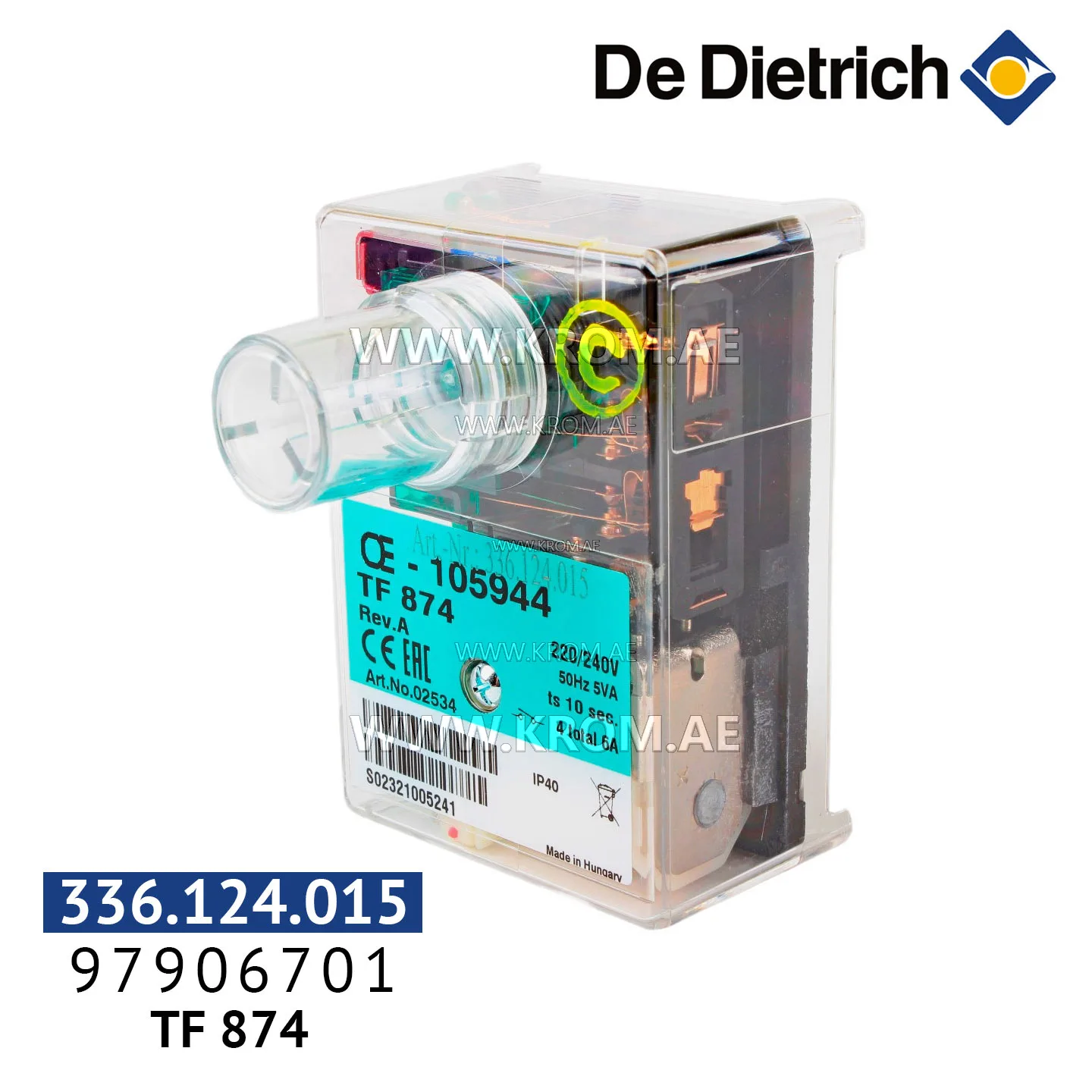

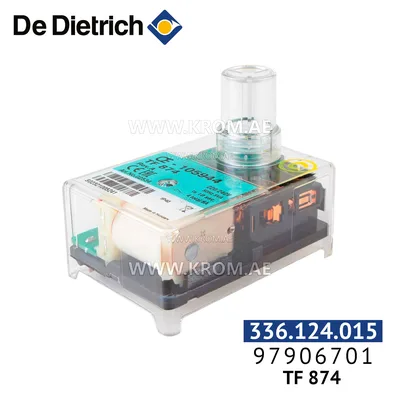

De Dietrich 97906701 safety control box TF874

The De Dietrich 97906701 safety control box TF874 is listed under catalogue article 336.124.015. This article is a burner control (flame safeguard) of the type that orchestrates the ignition and safety sequence for a boiler or industrial burner. Parts of this type manage the pre-purge, ignition, fuel admission, flame proving, and lockout stages. They read signals from pressure switches and the flame detector, and drive the ignition transformer, gas or oil valve, and fan. When selecting a control box of this type, the critical parameters are the exact series and type designation, the supply voltage, the safety and pre-purge times, and the flame detection method (ionisation, UV, or IR). The base or plug pattern must also match the existing wiring. A control box is normally not interchangeable across series even within the same brand; a mismatched safety time creates a safety hazard, not just a functional issue. For this specific De Dietrich article, verify the physical and electrical pattern against the existing control before ordering. No further specifications—such as voltage, dimensions, or compatibility with particular boiler models—are available from the catalogue entry; rely on the markings on the original part and the appliance documentation.
