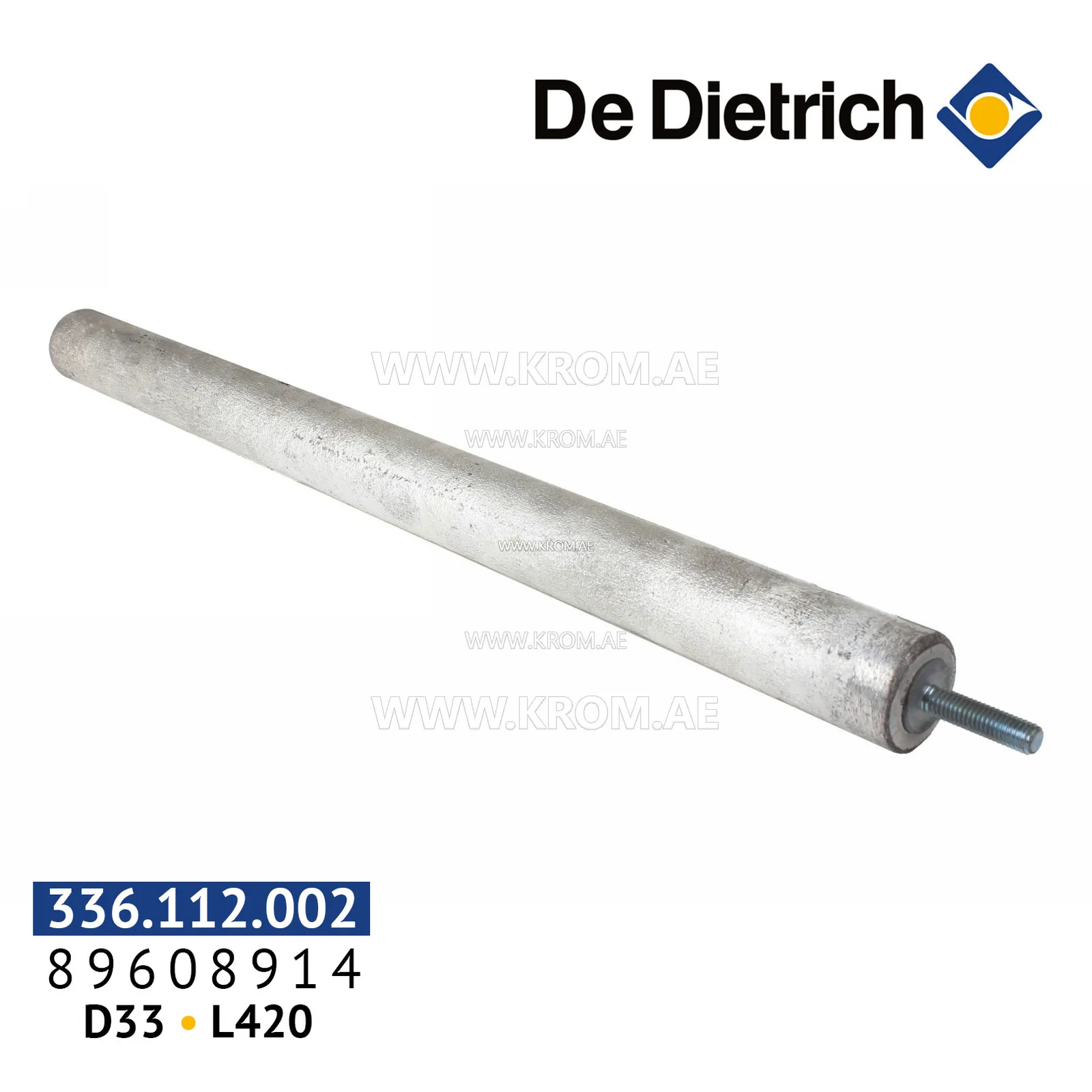

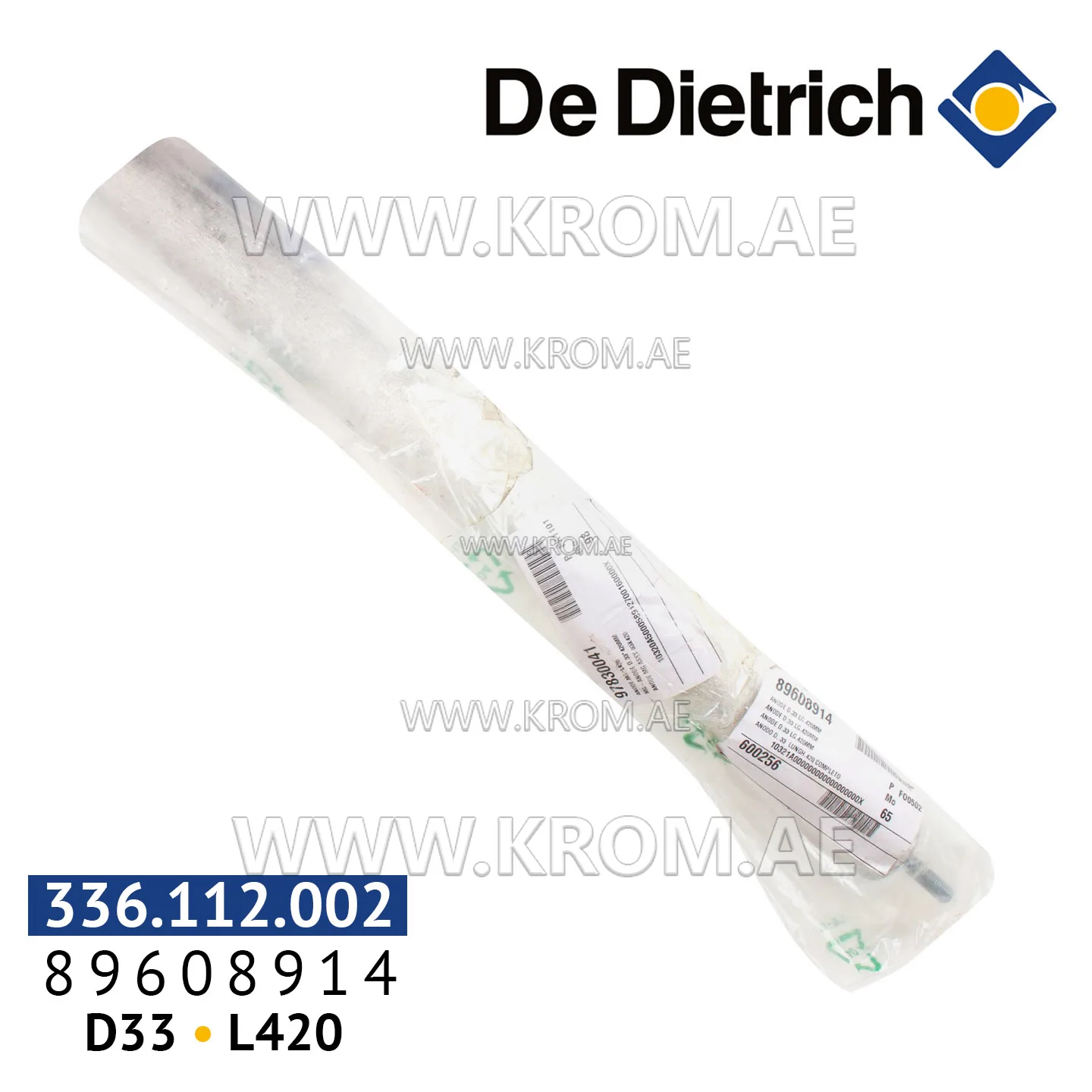

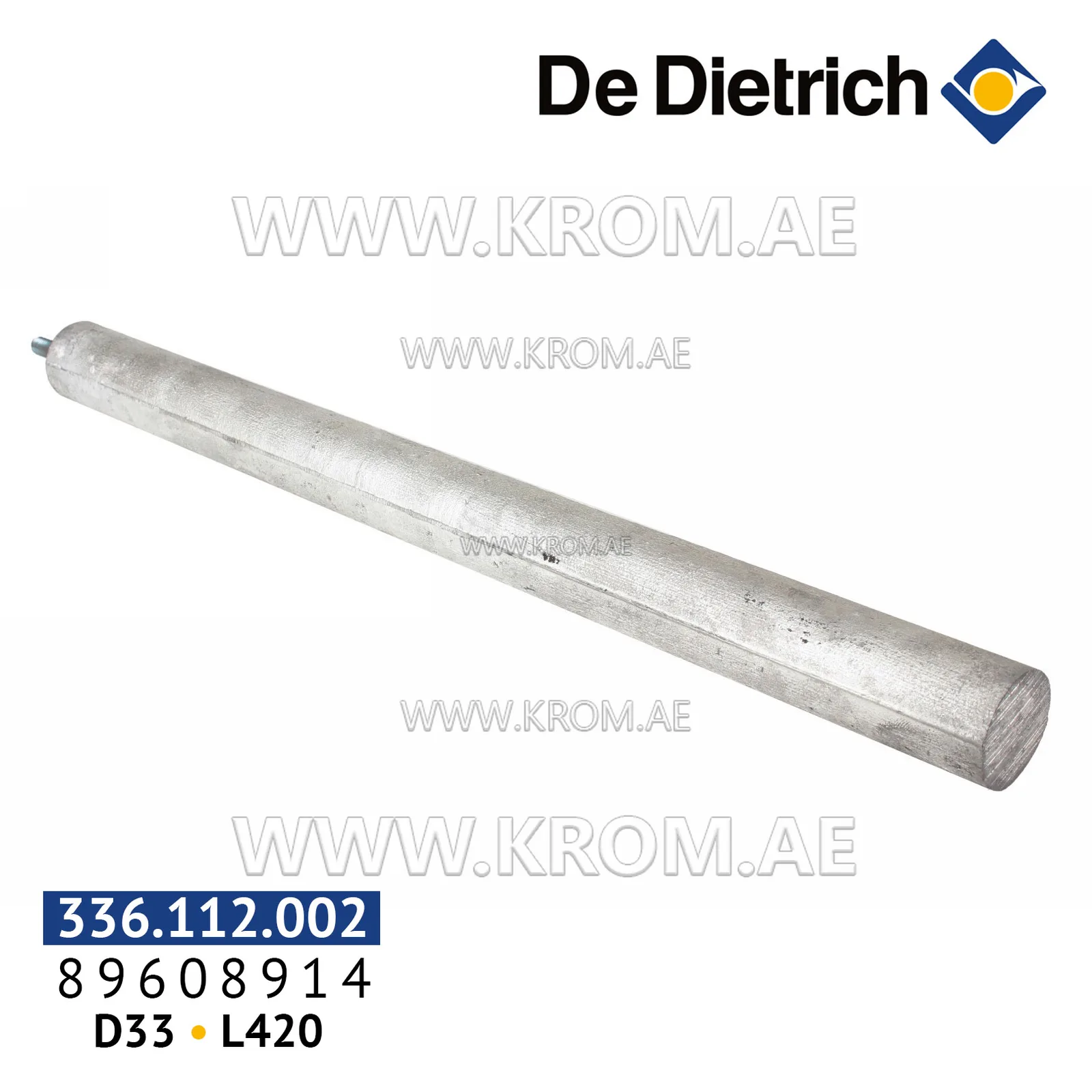

De Dietrich 89608914 anode D33 mm, L420 mm

The De Dietrich 89608914 anode, also listed as catalogue article 336.112.002, is a magnesium anode with a diameter of 33 mm and a length of 420 mm. Parts of this type are installed inside the enamelled cylinder of a boiler or hot water storage tank. Their function is to protect the cylinder lining from corrosion by acting as a sacrificial element: the magnesium reacts with the water instead of the enamel, gradually wearing away in the process. Because the anode is consumed over time, it is a service item that must be checked at regular intervals and replaced before it is fully depleted. Selection of such anodes is based on dimensional fit – diameter and length – and on the thread or fixing arrangement, which must match the boss on the cylinder. Using an anode with incorrect dimensions may leave parts of the cylinder unprotected or prevent proper installation. The material is typically magnesium, chosen for its electrochemical properties in domestic and commercial water systems. When replacing an anode of this type, verify that the new part corresponds to the original in diameter, length, and thread pattern; the part numbers provided (89608914 and 336.112.002) help identify the correct specification. During routine maintenance, inspect the anode for significant reduction in size or heavy pitting. If the anode has worn to below half its original diameter, replacement is due. Neglecting a spent anode can lead to corrosion of the cylinder and eventual leakage. The anode itself does not interact with the burner control sequence; it is a passive component on the water side, but its condition is essential for the longevity of the enclosure that holds the heated water.
