De Dietrich 88055602 Diematic-m Delta central unit board

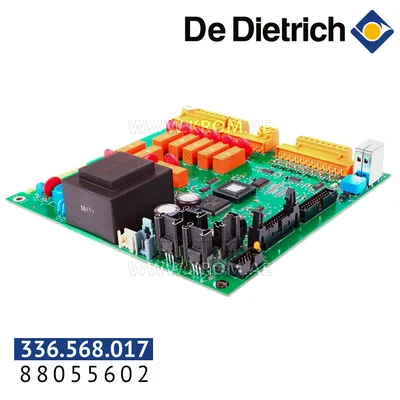

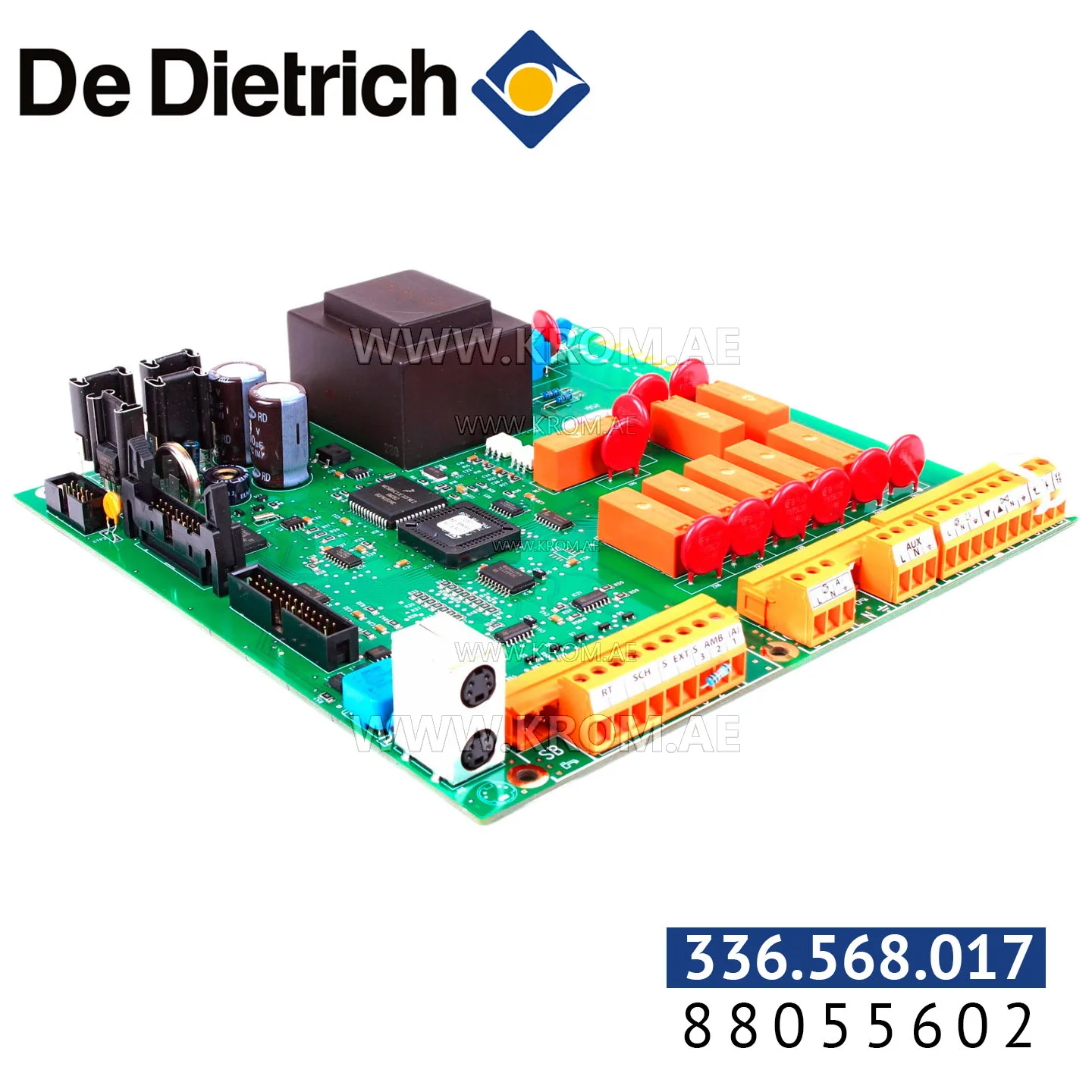

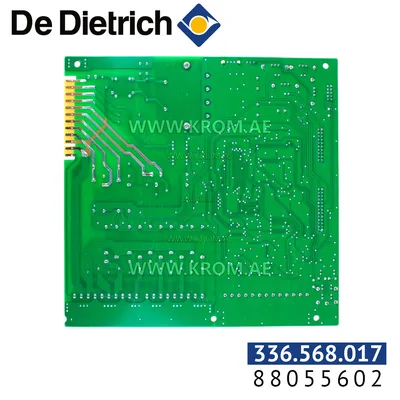

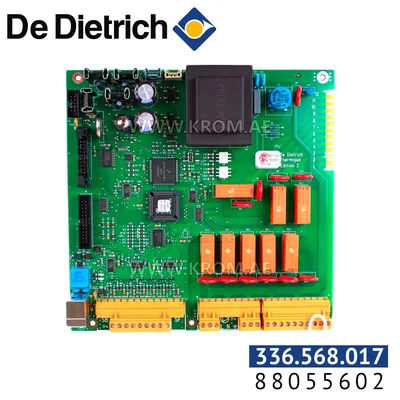

This is a De Dietrich 88055602 Diematic-m Delta central unit board, listed under catalogue article 336.568.017. It is an electronic control board (PCB) for a De Dietrich wall-hung boiler. In modern boilers, the electronic control board performs the same role as a traditional burner control (flame safeguard): it manages the ignition sequence, enforces safety times (pre-purge, ignition, flame proving, lockout), reads signals from pressure switches, temperature sensors and the flame detector, and drives the fan, gas valve and ignition transformer. The board also handles modulation of output and communication with external controllers. Because these boards are specific to a boiler model and control logic, they are not interchangeable across different series, even within the same brand. A mismatched board can lead to incorrect safety times or communication faults, which is a safety issue. When replacing such a board, the exact manufacturer code (88055602 or 336.568.017) and the boiler model must be verified. The board is matched to the boiler's electrical configuration and connector layout; a visual check of the existing board part number is the recommended way to confirm compatibility. In the system, this central unit board connects to the gas valve, fan, ignition transformer, ionisation electrode or flame sensor, NTC thermistors, the circulation pump, and any modulating actuators. It also interfaces with room thermostats or bus systems. The board contains the software that governs the operating sequence and fault handling. No further technical specifications about this specific article are available from the source data.
