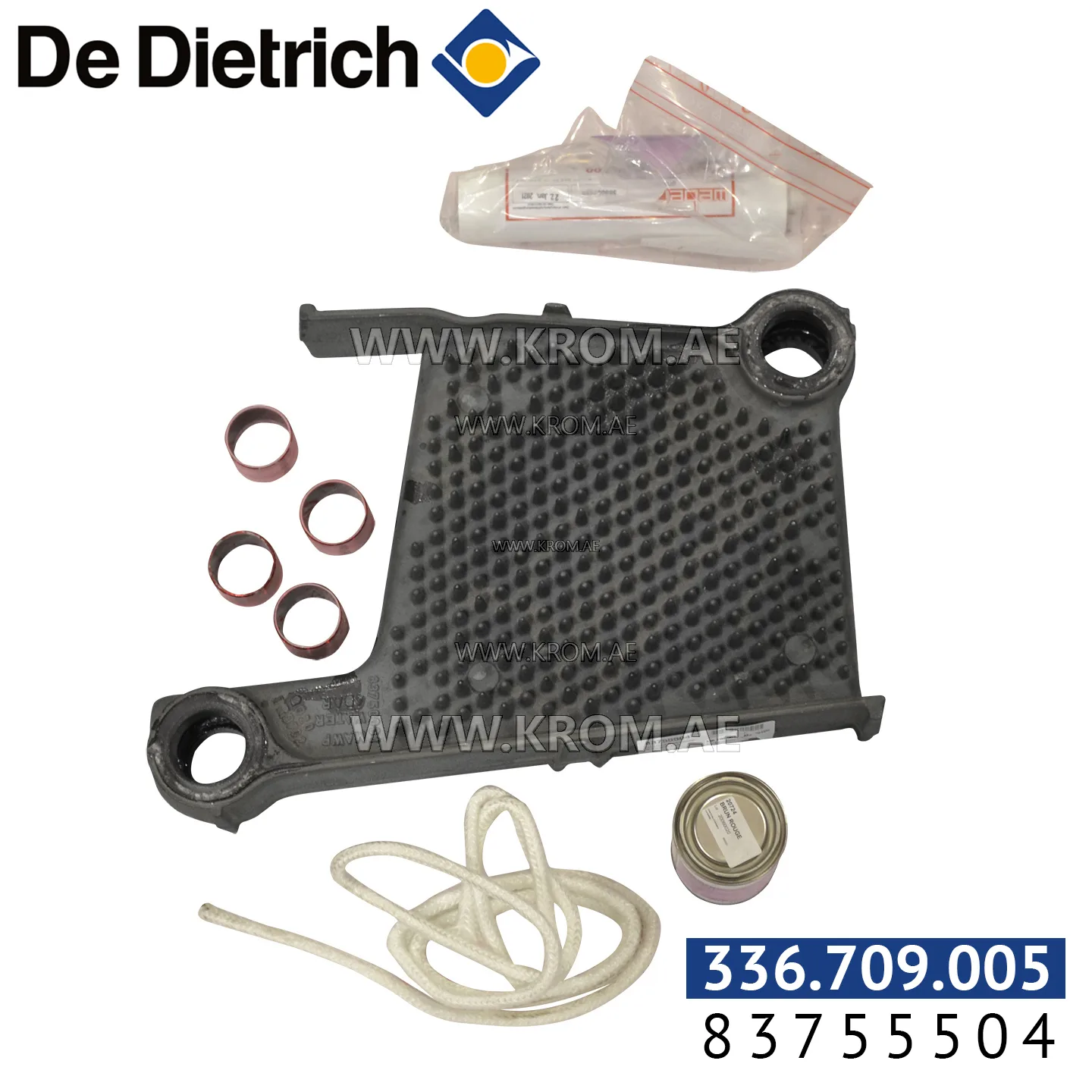

De Dietrich 83755504 intermediate section

This is a De Dietrich intermediate section, listed under heat exchangers. Parts of this type form the central modules of a sectional heat exchanger. In such an assembly, several intermediate sections are bolted together between the front and rear sections to create the desired heating capacity. Each section contains internal water passages and flue gas ways; the flue gases from the burner travel through these passages and transfer heat to the water circulating around them. Intermediate sections are distinguished from end sections by having no integrated burner mounting or return connections. When selecting an intermediate section, the key parameters are the section's dimensions, the number and pattern of the flue gas ways, and the gasket arrangement that seals the joints between sections. These dimensions must match the boiler model's existing stack because sections are not interchangeable between different series or manufacturers. An incorrect section will not align with the water and gas paths, causing leaks or poor heat transfer. Common failures in this type of component include scaling on the water side, which reduces heat transfer and can cause localised overheating, and soot buildup on the gas side, which similarly impairs efficiency. Gasket leaks between sections are another frequent issue, especially after thermal cycling. During replacement, inspect the mating surfaces for corrosion or pitting and always use new gaskets of the correct type. In condensing boilers, also check for condensate-induced corrosion where flue gases cool below the dew point.
