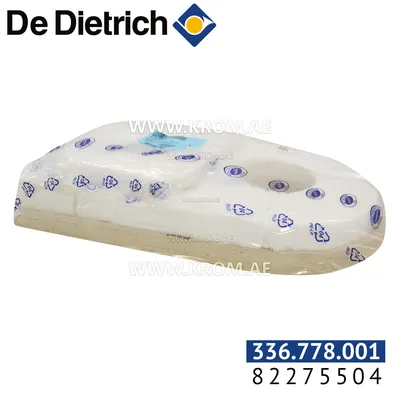

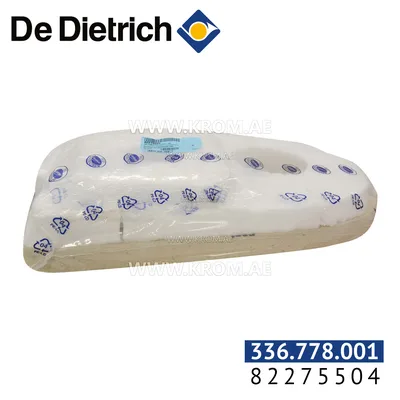

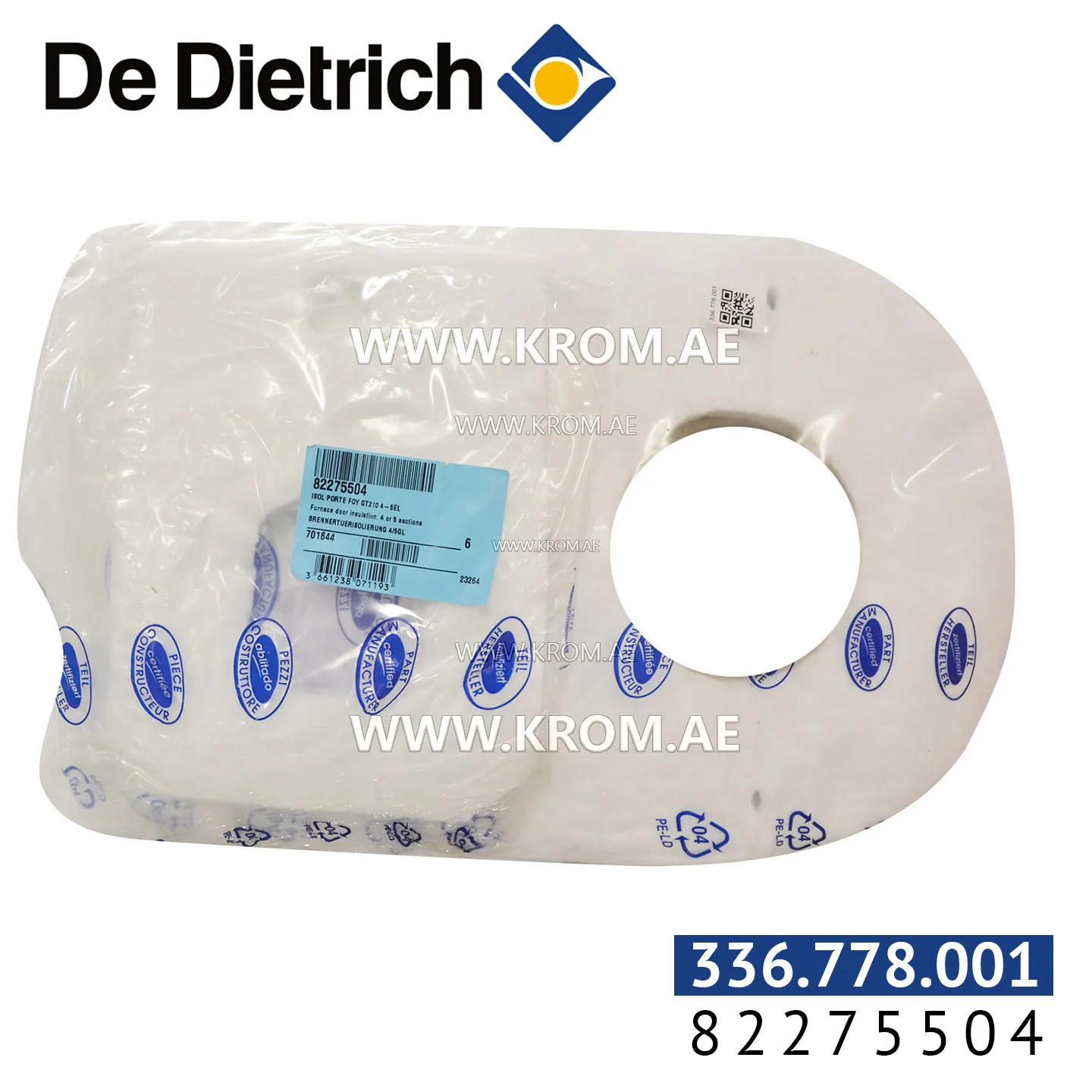

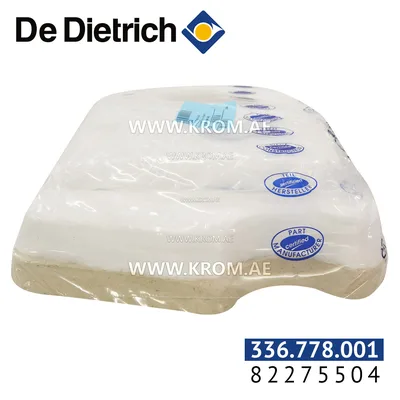

De Dietrich 82275504 furnace door insulation, 4 or 5 sections

This part is a furnace door insulation set, designed for use on a boiler or thermal unit that has a sectional furnace door. Parts of this type sit between the door and the combustion chamber, sealing the opening and preventing heat loss to the casing. They also protect the door structure from direct flame and high temperature. The insulation typically consists of several pre-cut sections that together cover the entire door surface. Selection of such insulation is always determined by the specific appliance model and the exact location on the assembly – there is no universal size or rating that applies across different units. The geometry must match the original factory part exactly. Combustion chamber insulation degrades over time due to repeated heat cycling; cracks, crumbling, or compression reduce its effectiveness and can lead to hot spots on the door or casing. When replacing, using the correct shape and thickness is essential to maintain a proper seal and even thermal protection. This article from De Dietrich carries manufacturer code 82275504 and catalogue code 336.778.001. It is identified as furnace door insulation for units with a door of either four or five sections – the set accommodates both configurations. No further technical specifications are available from the manufacturer’s data; verification against the original part number and appliance model is recommended before ordering.
