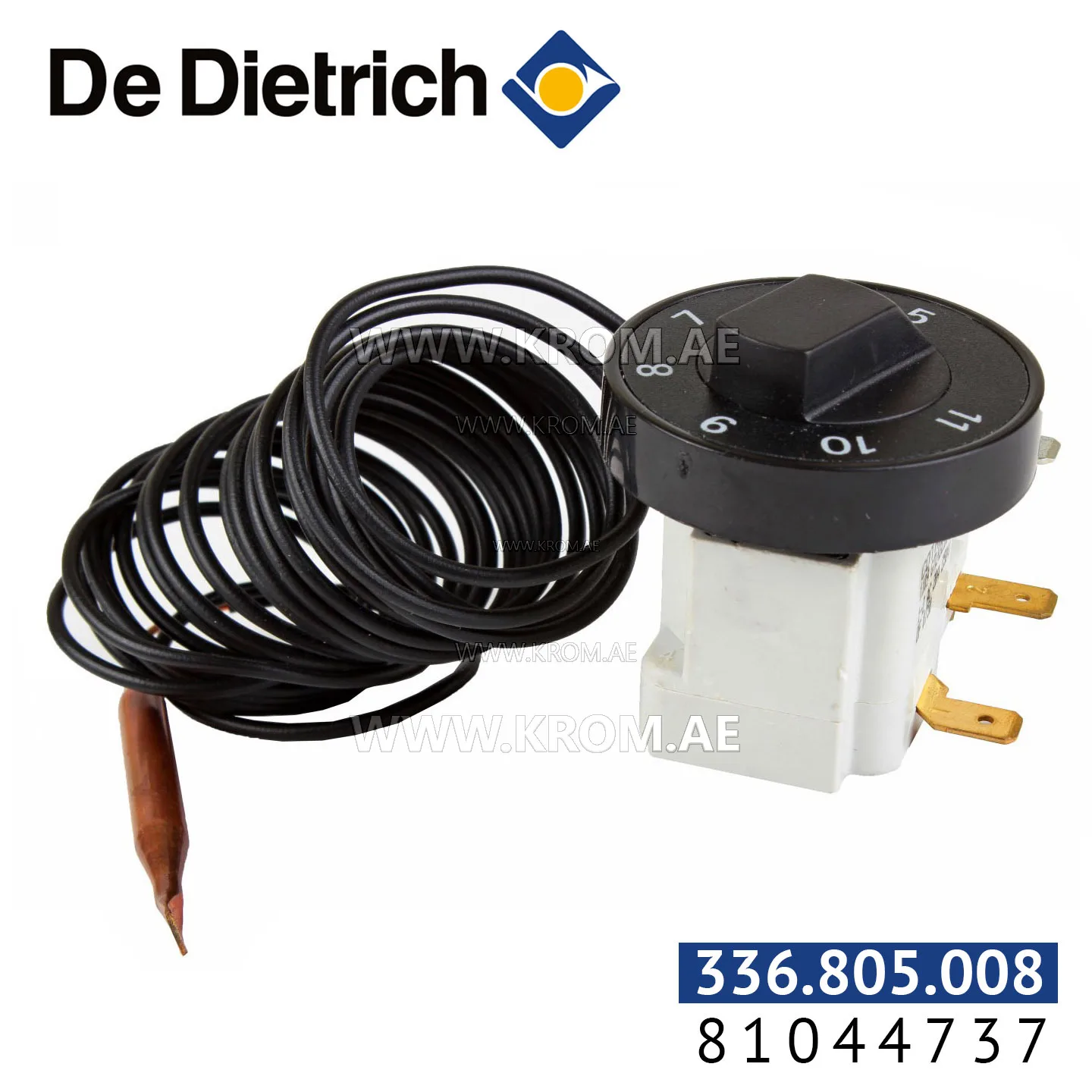

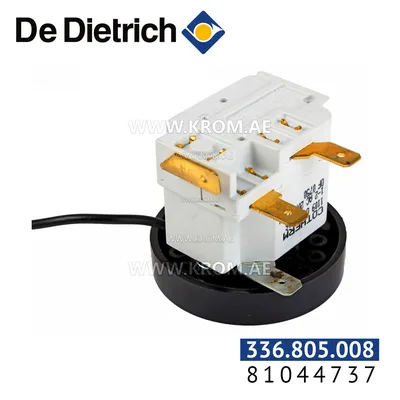

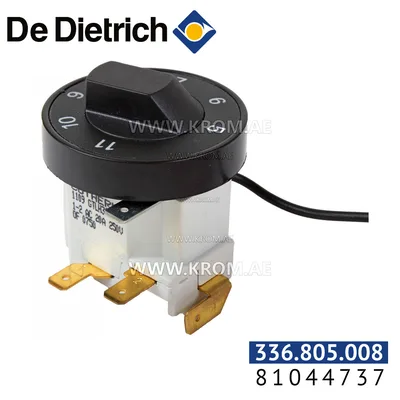

De Dietrich 81044737 1st/2nd stage boiler thermostat 50-105C

This is a 1st/2nd stage boiler thermostat from De Dietrich, with a temperature range of 50 to 105 °C. Parts of this type serve as temperature-sensitive switches that open or close a circuit when the water temperature reaches a set point. In a two-stage burner system, such a thermostat can be used to switch between low and high firing rates, or to act as a high-limit safety device that interrupts the burner if the water overheats. Unlike NTC sensors that send a variable resistance signal to the control board, a mechanical thermostat like this one operates directly – it physically makes or breaks the electrical connection at its switching temperature. When selecting a replacement, the key parameters are the switching temperature range, the differential (the difference between the cut-in and cut-out temperatures), the contact configuration (normally open or normally closed), and the reset type – automatic or manual. The electrical rating and the capillary tube length (if present) also matter for correct installation. Typical failures include drifting of the switching point, which can cause short-cycling or failure to cut off, and corrosion or mechanical wear that prevents the contacts from closing properly. Before fitting a new thermostat, check that the control circuit it is part of is compatible with the contact rating and that the immersion pocket or clamp-on mounting corresponds to the original installation. If the part is used as a safety limit, verify the reset method matches the system requirements – a manual reset thermostat will hold the burner in lockout until physically reset, while an auto-reset one will allow the burner to restart once the temperature drops.
