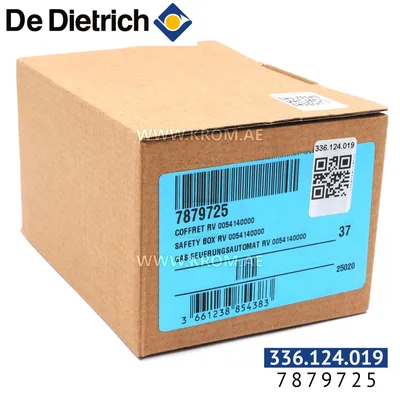

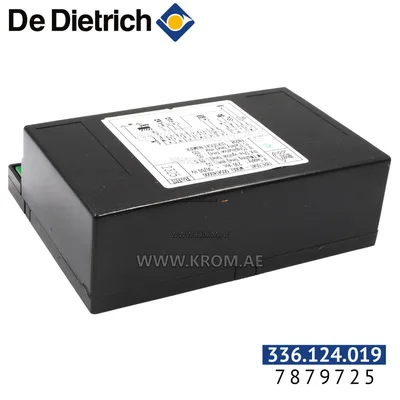

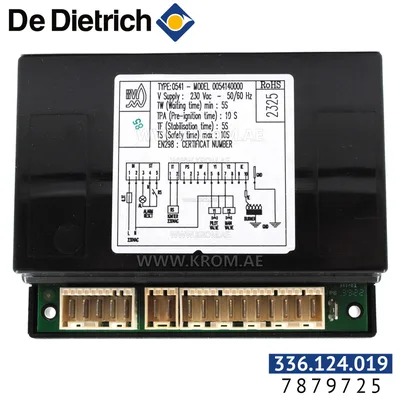

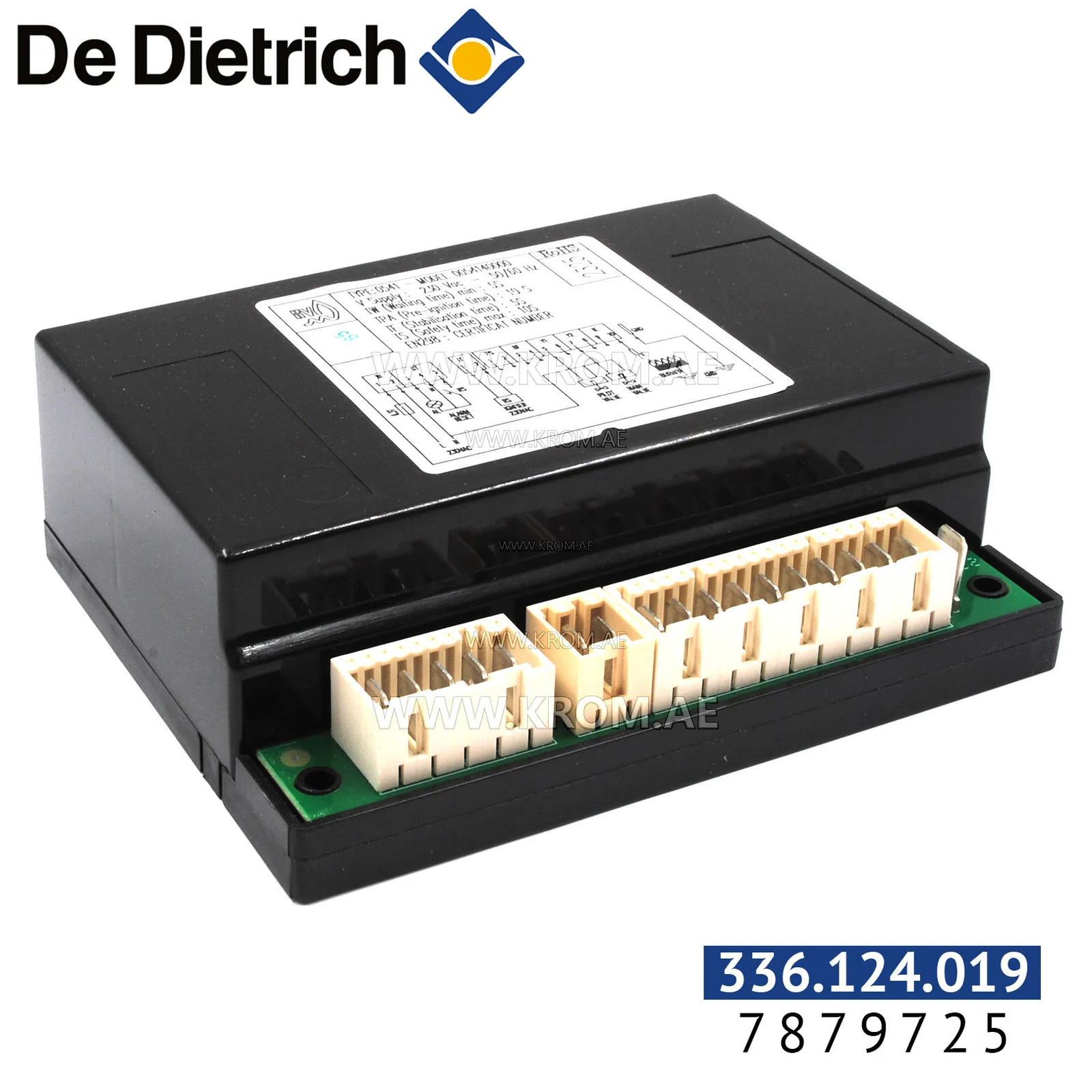

De Dietrich 7879725 Control Unit

De Dietrich 7879725 Control Unit is listed under catalogue article 336.124.019 in the Control boxes category. This is a burner control (flame safeguard) unit, which manages the ignition and safety sequence for a burner or boiler system. Parts of this type govern the start-up cycle: they initiate pre-purge, energise the ignition transformer, open the gas valve or oil solenoid, and monitor the flame signal within a set safety time. If no flame is confirmed, the control locks out. The unit reads inputs from pressure switches (air, gas) and from the flame detector (ionisation electrode for gas, UV or IR sensor for oil). It drives the fan, the ignition transformer, and the fuel valve. Selection for a replacement of this type depends on the exact series designation, supply voltage, safety and pre-purge times, flame detection method, and the base or plug pattern. A mismatched safety time is a safety issue, not a mere compatibility problem; controls are normally not interchangeable across series even within the same brand. In modern wall-hung boilers, electronic control boards (PCB) perform the same role and are matched to the specific boiler model.
