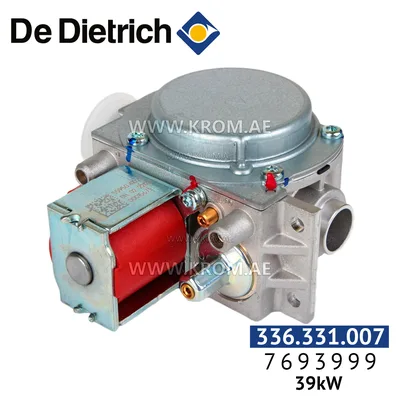

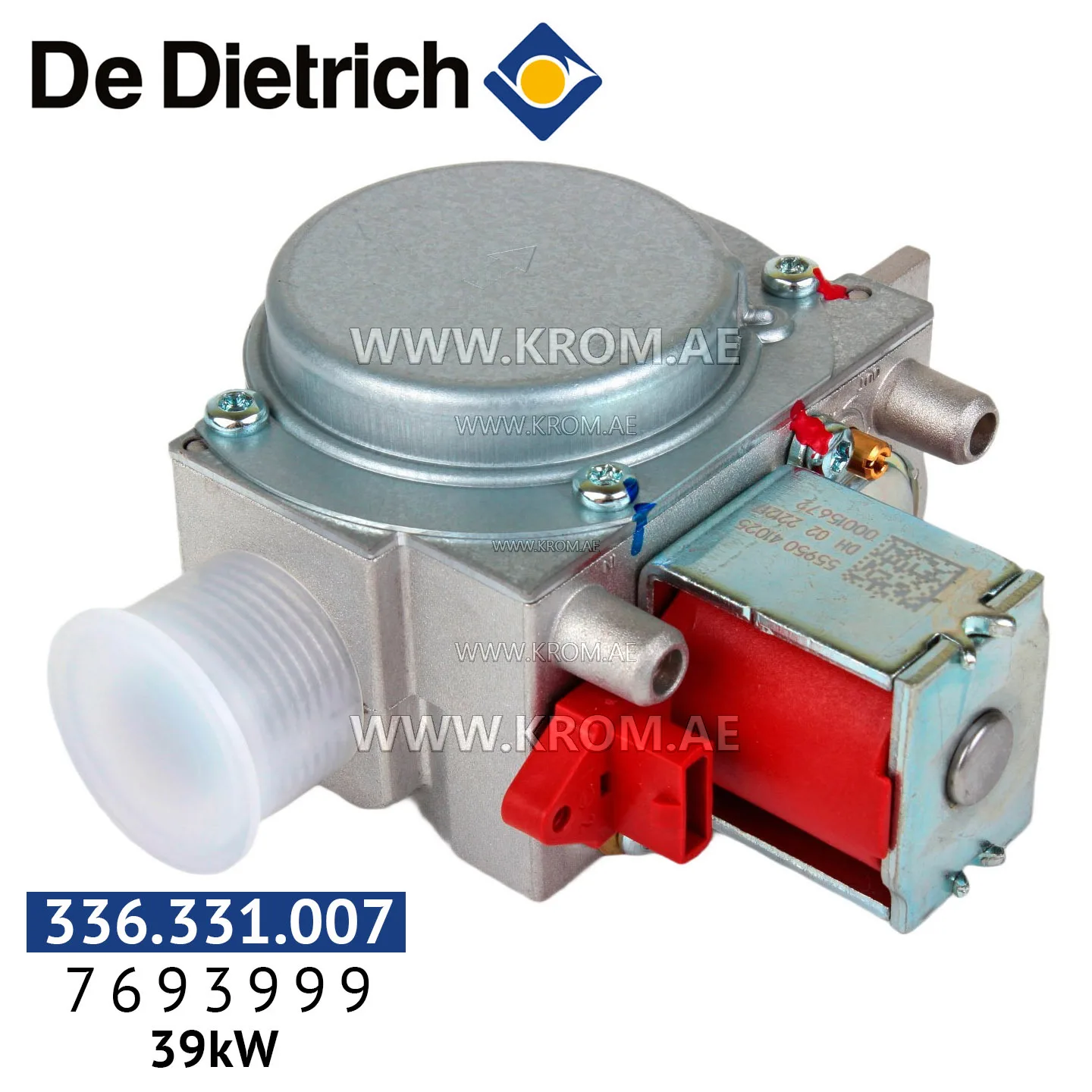

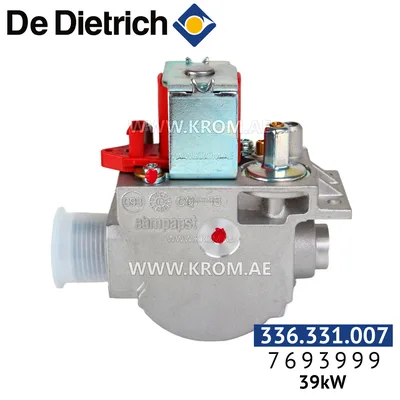

De Dietrich 7693999 gas valve 39 kW

The De Dietrich 7693999 gas valve (also listed as catalogue article 336.331.007) is a component rated at 39 kW. The brand, codes, and power figure are the only specifics available for this article. Parts of this type – gas valves – shut off and meter the gas supply to the burner. They open on command from the burner control and only when the gas pressure switch permits; in premix boilers a pneumatic gas/air link ties the valve to the fan. Such valves are selected by brand and series, connection size (typically Rp 1/2" to 2" or flanged), coil voltage (230 V or 24 V AC/DC), and function (single/double solenoid, slow opening, servo-regulated, or multiblock with filter and regulator). Common failures include coil burnout, leaking seat, drifting outlet pressure, and seized servo regulator. The coil is often replaceable separately from the valve body. In the system, the gas valve works directly with the burner control, the gas pressure switch, and the gas filter. During the ignition sequence, the burner control energises the valve only after pre-purge and air pressure confirmation; flame proving is done via an ionisation electrode. When replacing a valve of this class, ensure the operating voltage and connection size match the existing installation, and verify that the valve’s function (e.g., single vs. double solenoid) is consistent with the burner control logic.
