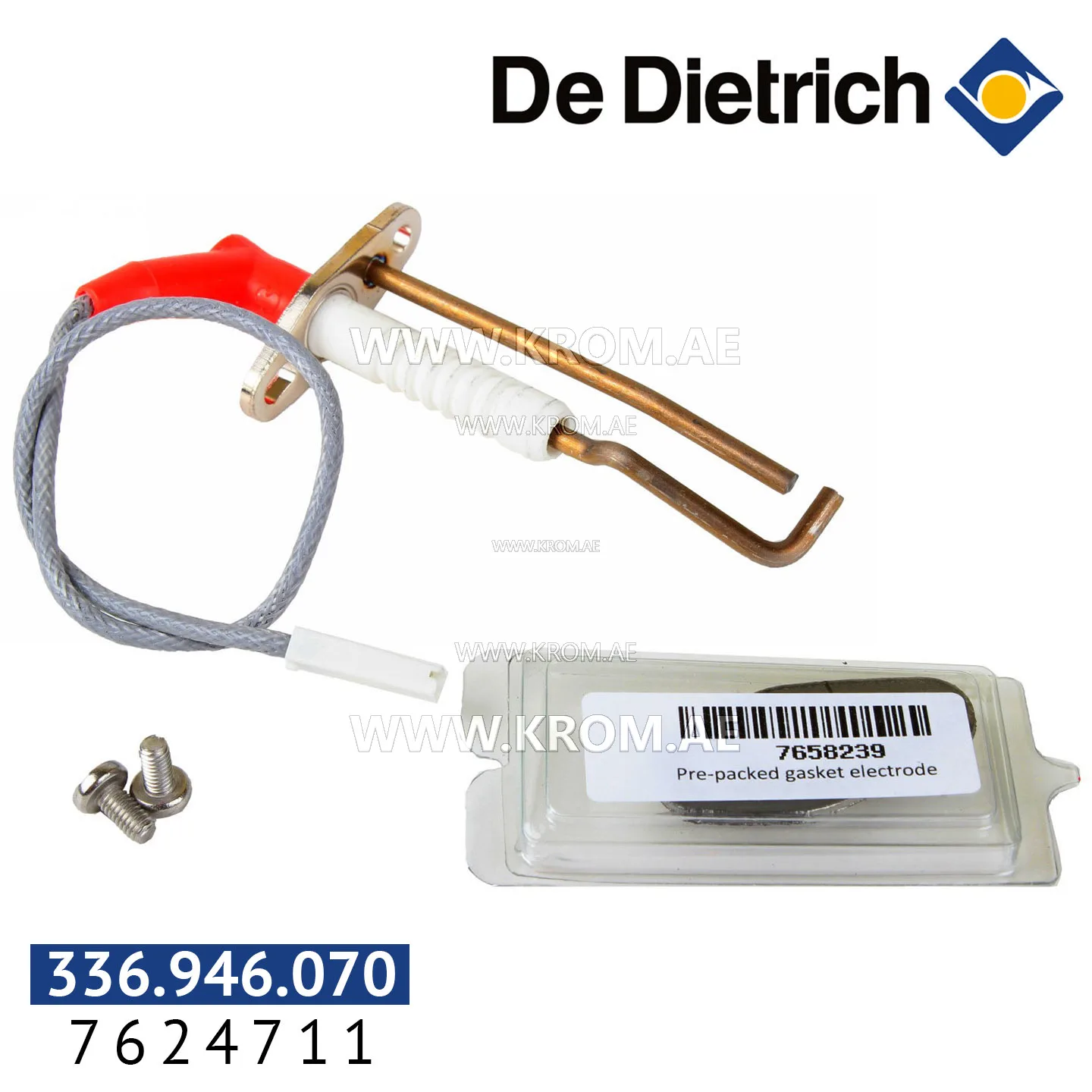

De Dietrich 7624711 ignition electrode

The De Dietrich 7624711 ignition electrode is a spare part listed under the catalogue article numbers 7624711 and 336.946.070, within the category of ionization and ignition electrodes. As an ignition electrode, its function is to deliver the spark that ignites the fuel-air mixture during the burner start-up sequence. It is located in the flame zone and is a consumable component, subject to wear from thermal stress and combustion by-products. Ignition electrodes of this type are selected primarily by physical dimensions: the length and bend of the electrode rod, the diameter and condition of the ceramic insulator, the electrode gap, and the design of the mounting flange. These parameters must match the burner head for which the electrode was originally shaped. Common failure modes include erosion of the tip, cracking of the ceramic insulator, accumulation of soot that shorts the spark, and a gradual drift in the spark gap that leads to unreliable ignition. When replacing an ignition electrode, it is advisable to check the condition of the ignition transformer and the wiring between the transformer and the electrode, as a weak spark may also originate from a failing transformer or poor connections. The electrode working with the ignition transformer is part of the burner control circuit: the control box energises the transformer during the ignition phase, and the spark must reliably light the burner within the safety time. No details on compatibility with specific burner models or appliance brands beyond De Dietrich are available from the supplied data.
