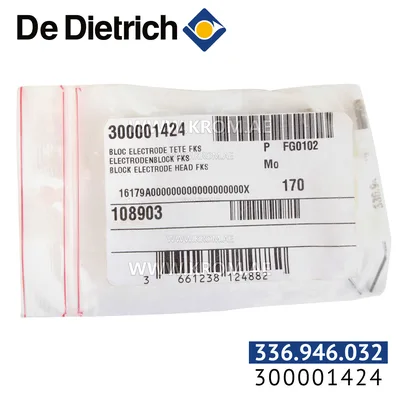

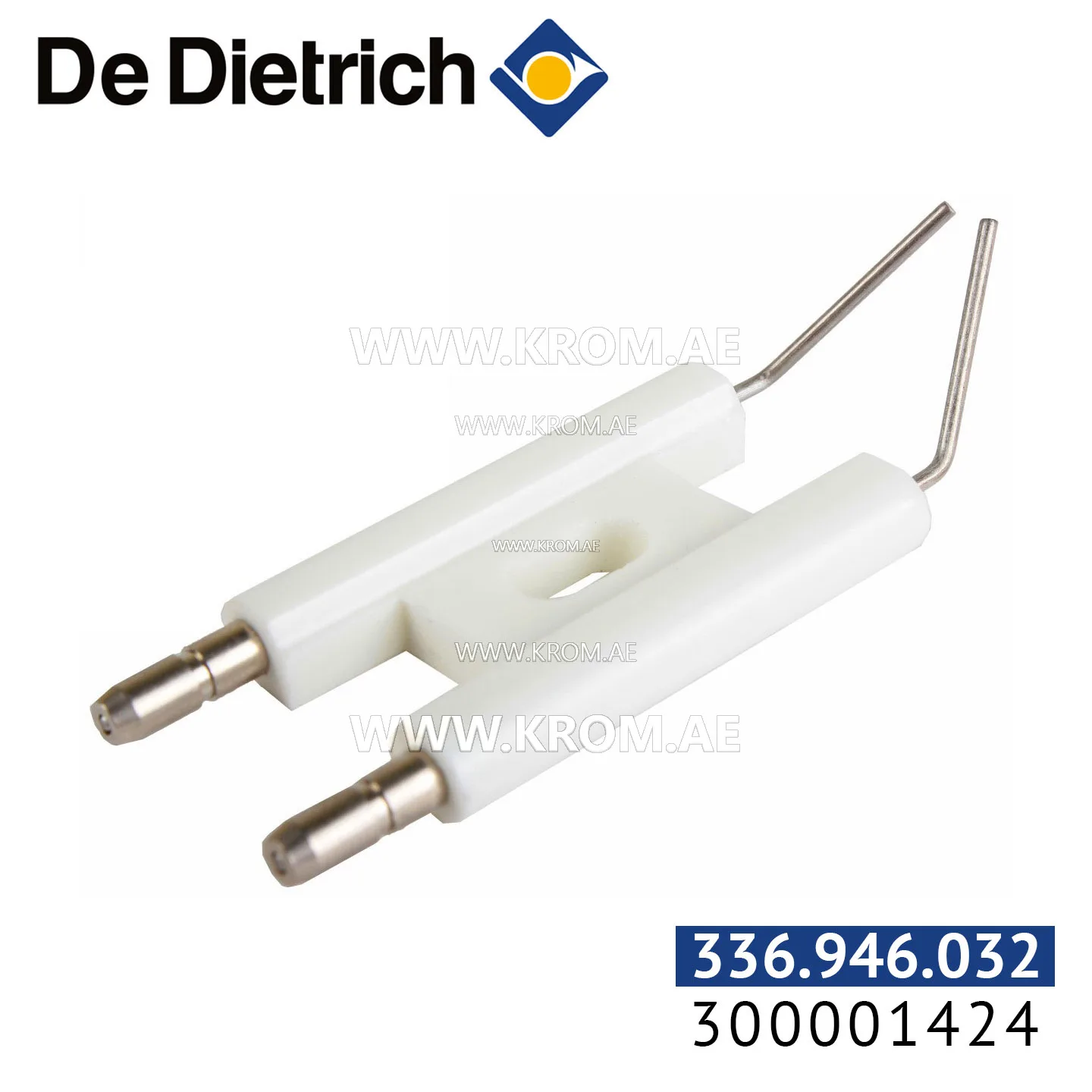

De Dietrich 300001424 ignition electrode

The De Dietrich 300001424 ignition electrode is a spare part listed under the brand De Dietrich, with catalogue article 336.946.032. This component belongs to the category of ignition and ionisation electrodes, which are consumable parts located in the flame zone of a burner. Ignition electrodes of this type deliver the spark that lights the fuel-air mixture. They work together with the ignition transformer and the burner control: when the control initiates the ignition sequence, the transformer produces a high-voltage spark across the electrode gap. The electrode must be correctly positioned relative to the burner head or pilot burner for reliable ignition. Parts of this class are selected by electrode length and bend, insulator diameter, gap, mounting flange, and the burner series for which they were shaped. Typical failure modes include an eroded tip, cracked ceramic insulation, sooting, or a drifted gap that lengthens ignition time. When replacing such an electrode, check the electrode gap and the condition of the ceramic insulator, and ensure the mounting flange seals properly to prevent leakage of combustion gases.
