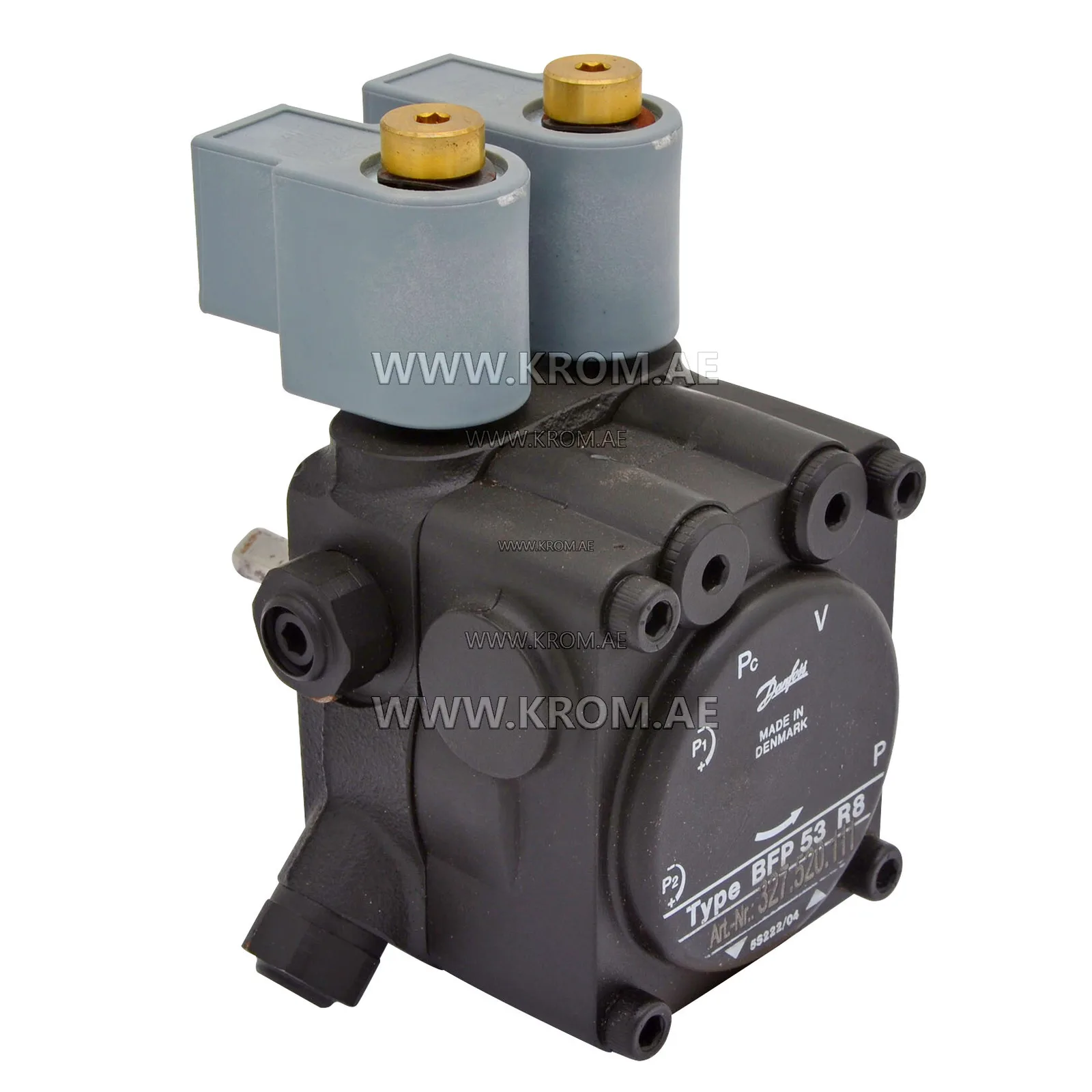

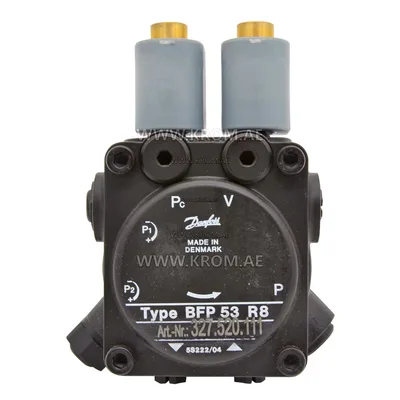

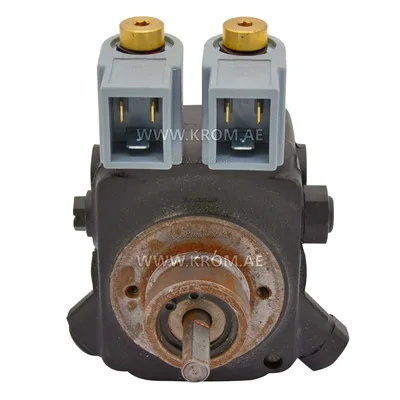

Danfoss 071N6230 BFR53 R8 oil pump

Danfoss BFP53R8 071N6230 gear pumps used in large and medium-sized two-stage domestic burners with a flow rate up to 130 l/h. Danfoss 071N6230 BFP53R8 gear pump technical data: Viscosity range (in the suction line): 1.8-12.0 cSt(mm2/s) Filter area / cross-section: 13/200 cm2/microns Pressure range 1: 7-15 bar Pressure range 2: 12-25 bar Factory settings: 10/13 ±1 bar Max. pressure in the suction/return line: 2 bar Shaft rotation speed: 2400-3450 min Max. starting torque: 0.23 Nm Ambient/transport temperature: -20 to +60 °C Fuel temperature: 0 to +60 °C Coil protection degree: IP40 Shaft: EN225
