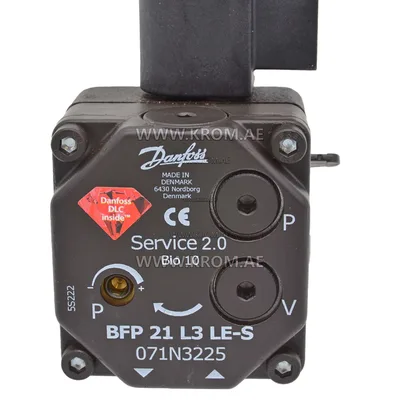

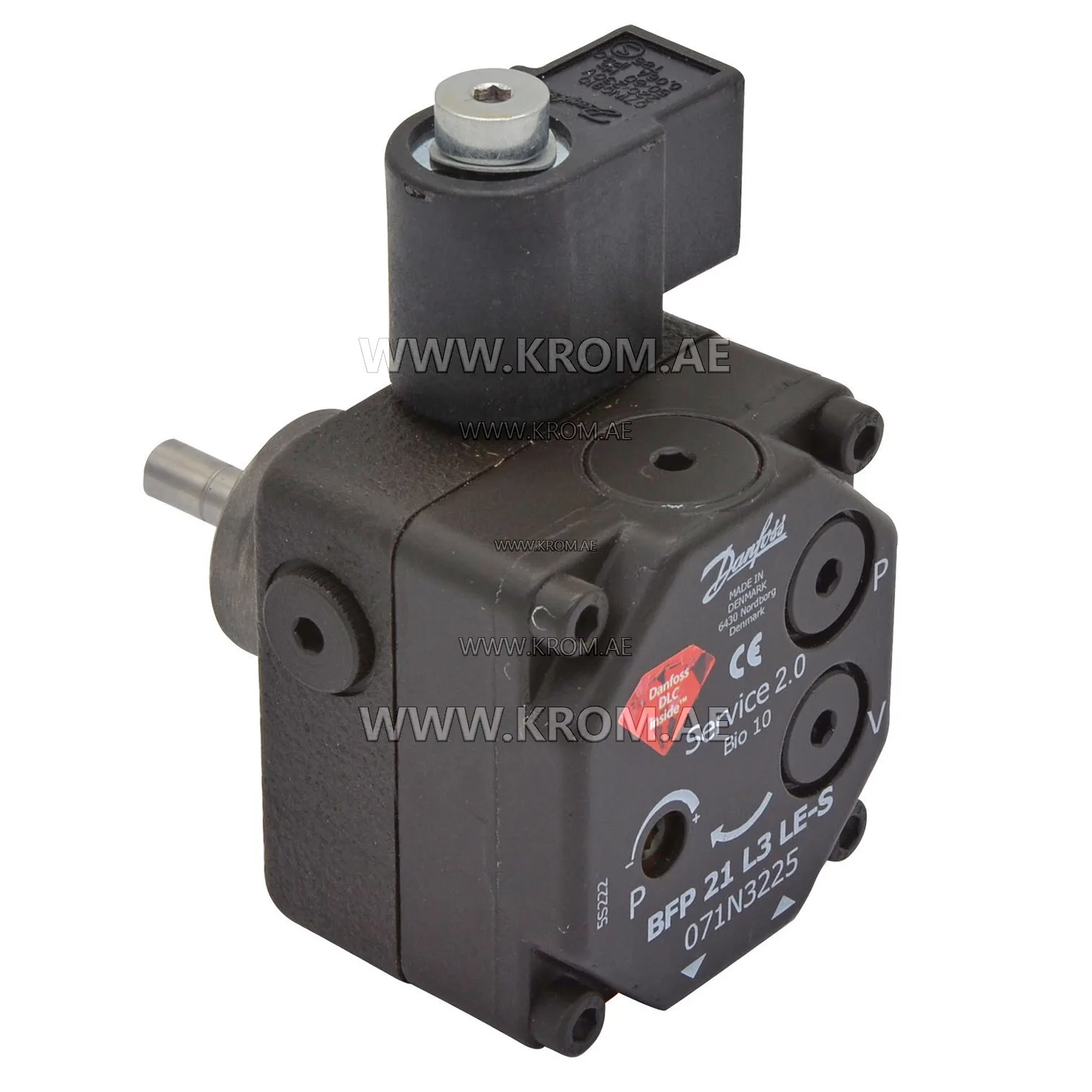

Danfoss 071N3225 BFR21 L3 LE-S oil pump

Danfoss 071N3225 BFP21L3LE-S oil burner pumps used in small and medium-sized household burners with a fuel consumption of up to 42 l/h. Danfoss BFP21L3LE-S 071N3225 oil pump for 1 and 2 pipe modes of operation Danfoss 071N3225 BFP21L3LE-S gear pump technical data: Viscosity range (in the suction line): 1.8-12.0 cSt(mm2/s) Filter area / cross-section: 11/200 cm2/microns Pressure range: 7-20 bar Factory settings: 10 ±1 bar Max. pressure in the suction/return line: 2 bar Shaft rotation speed: 2400-3450 min Max. starting torque: 0.1 Nm Ambient temperature: -20 to +70 °C Storage temperature: -25 to +120 °C Fuel temperature: 0 to +70 °C Coil protection degree: IP40 Shaft: EN225
