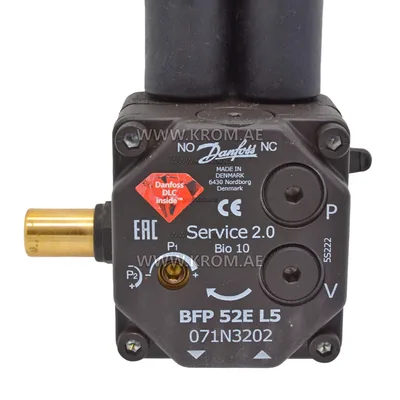

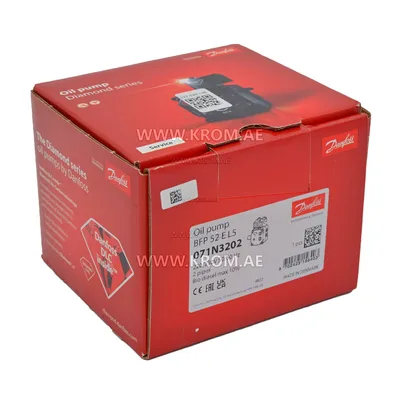

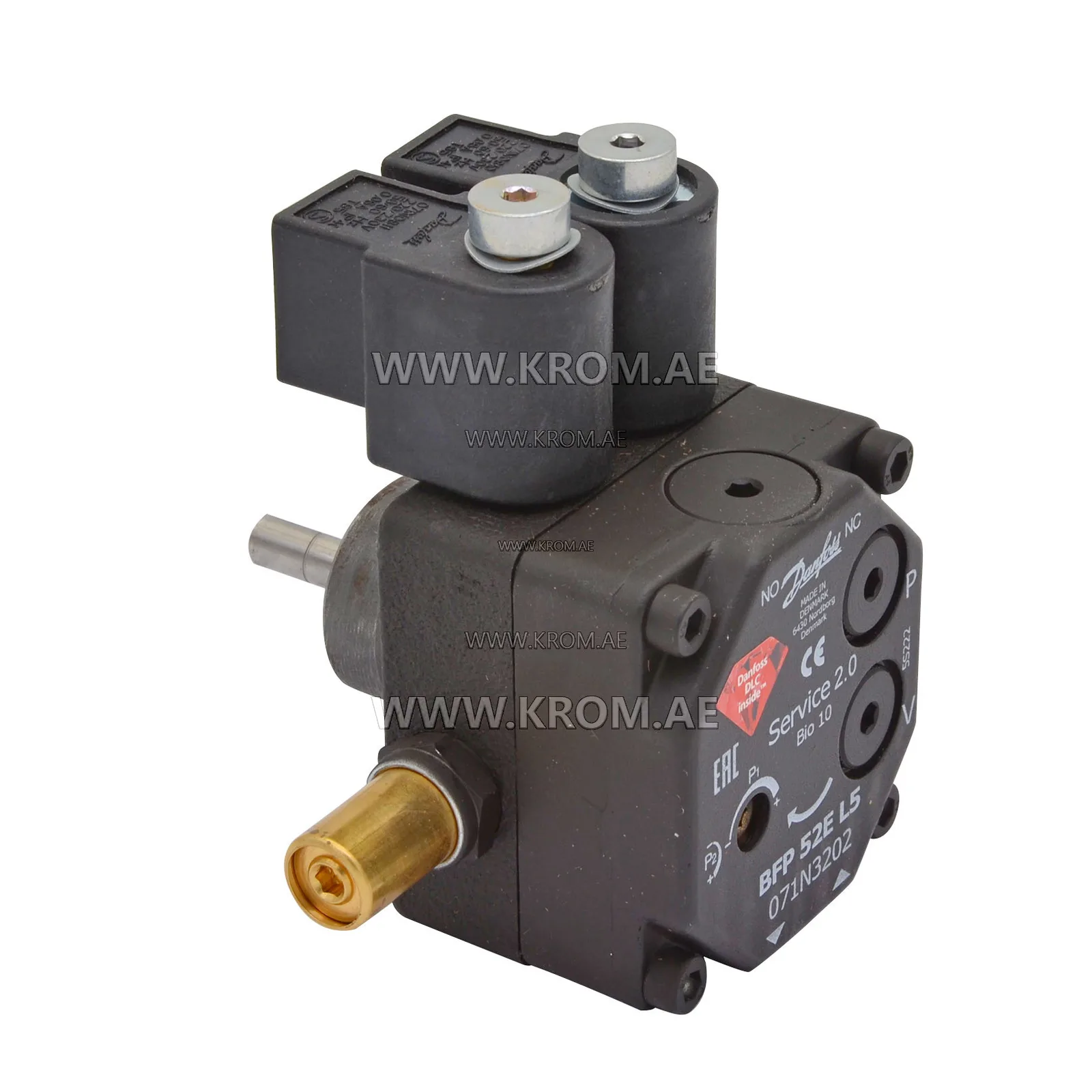

Danfoss 071N3202 BFP52EL5 oil pump

Danfoss BFP52EL5 071N3202 gear pumps used in small and medium-sized 2-level household burners with fuel consumption up to 42 l/h. Danfoss BFP52EL5 071N3202 oil pumps technical data: Viscosity range (in the suction line): 1.8-12.0 cSt(mm2/s) Filter area / cross-section: 11/200 cm2/microns Pressure range 1: 7-15 bar Pressure range 2: 10-25 bar Factory settings: 10/13 ±1 bar Max. pressure in the suction/return line: 2 bar Shaft rotation speed: 1400-3450 min Max. starting torque: 0.12 Nm Ambient/transport temperature: -20 to +70 °C Fuel temperature: 0 to +70 °C Coil protection degree: IP40 Shaft: EN225
