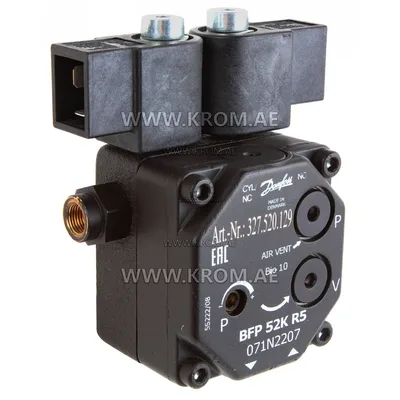

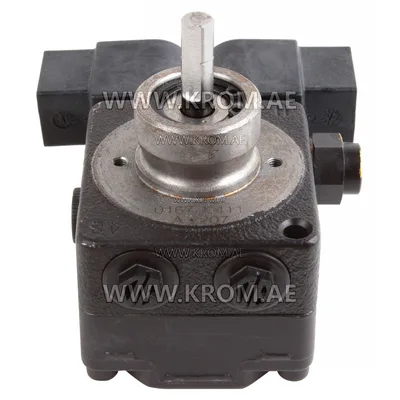

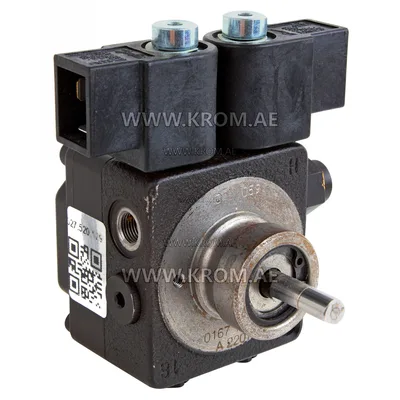

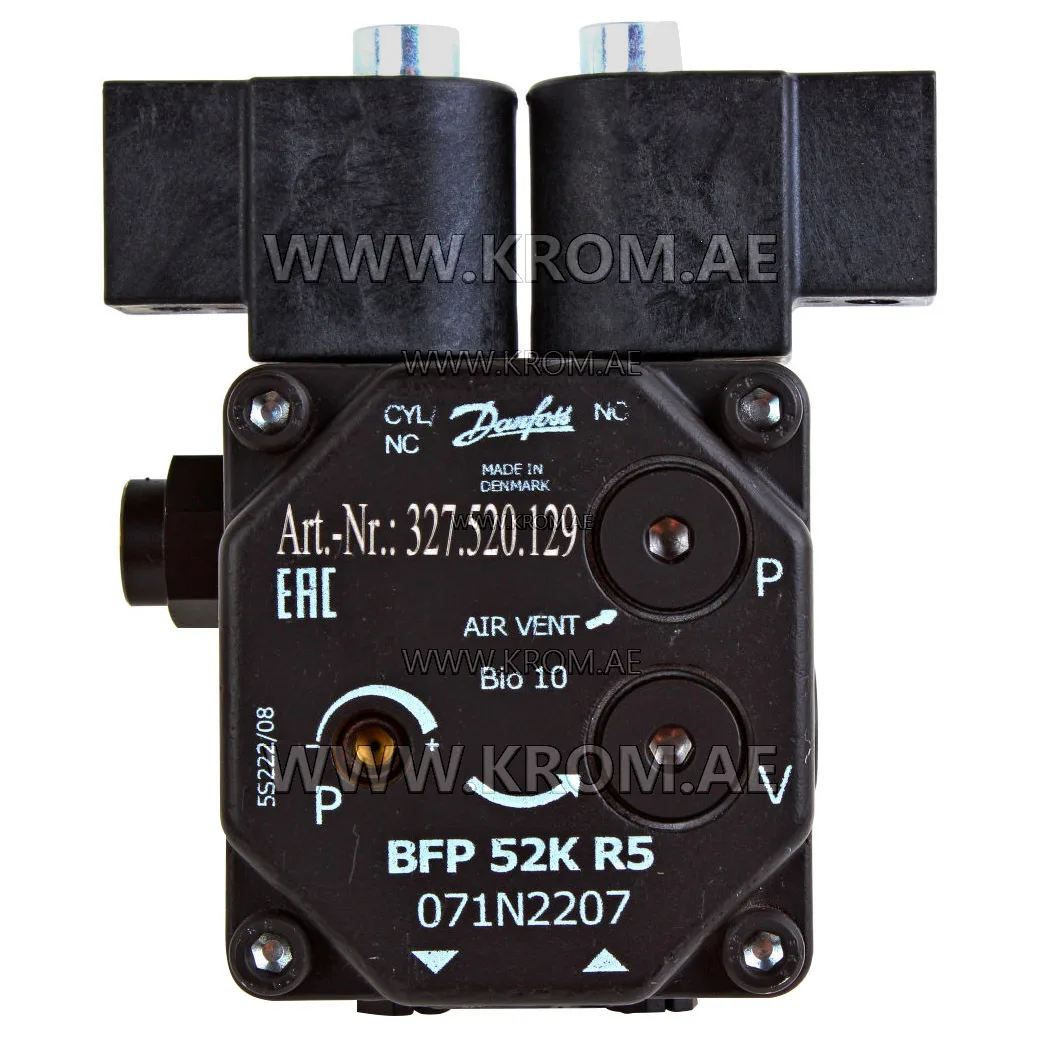

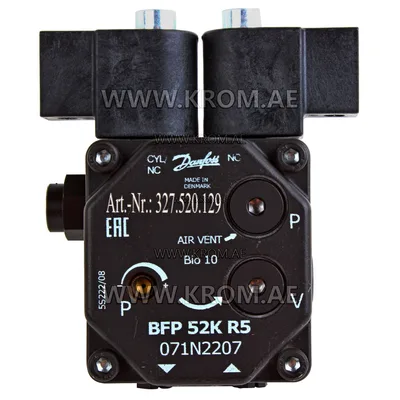

Danfoss 071N2207 BFP52K R5 oil pump

Danfoss BFP52KR5 071N2207 oil burners pumps used in two-stage domestic burners with a flow rate of up to 42 l/h. Fuel passes through the filter to the gear mechanism, where pressure is increased and maintained by the regulator. The NC valve opens the fuel supply to the nozzle, while the NO valve disables the regulator when activated. In two-pipe mode, excess fuel returns to the tank; in one-pipe mode, it goes to the bypass. Danfoss BFP52KR5 071N2207 oil pumps technical data: Viscosity range (in the suction line): 1.8-12.0 cSt(mm2/s) Filter area / cross-section: 11/200 cm2/microns Pressure range 1: 7-15 bar Pressure range 2: 10-25 bar Factory settings: 10/13 ±1 bar Max. pressure in the suction/return line: 2 bar Shaft rotation speed: 1400-3450 min Max. starting torque: 0.12 Nm Ambient/transport temperature: -20 to +70 °C Fuel temperature: 0 to +70 °C Coil protection degree: IP40 Shaft: EN225
