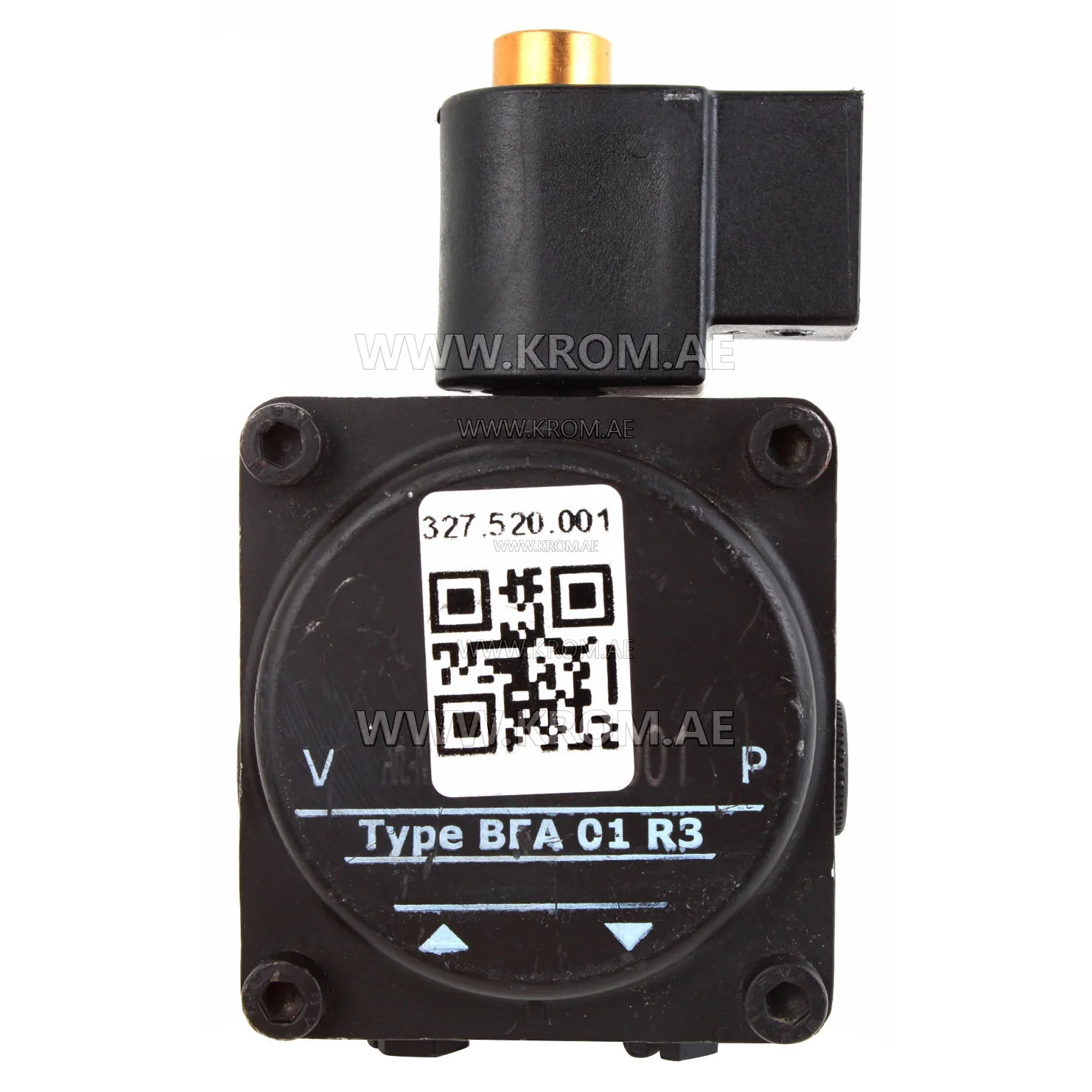

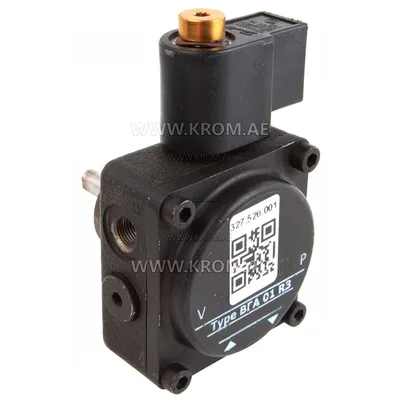

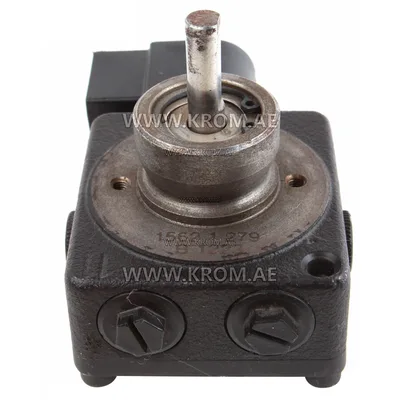

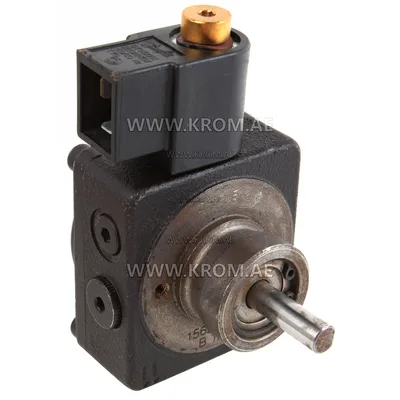

Danfoss 071N1223 BFA01R3 oil pump

Danfoss BFA01R3 071N1223 oil pump is for single-stage systems with kerosene and diesel fuel, with a flow rate up to 24 l/h. Pressure ranges from 7 to 15 bar. Suitable for single and two-pipe connections. Gear mechanism with a 150 µm filter. Compact housing with IP 40 protection. Fuel temperature up to +70°C. Danfoss 071N1223 BFA01R3 gear pump technical data: Strainer Open area: 0.7 cm2 Mesh Filter Hole size: 150 microns Diameter of the axis (shaft): 8 mm Factory pressure settings: 10 bar Operating viscosity: from 1.3 to 12 mm2/s (cSt) Inlet pressure: 2 bar Type of pumped liquid: kerosene, diesel fuel Pump Series: RSA Nozzle pressure range: from 7 to 15 bar Direction of rotation of the shaft (from the shaft side): R: clockwise rotation Fuel consumption: 24 l/h Outlet pressure: 2 bar Rated rotation speed: 2400 rpm Maximum rotation speed: 3450 rpm Torque: 0.1 N·m Voltage of the solenoid valve: 220 - 240 V, 50/60 Hz Electromagnetic valve consumption: 9W Dust and moisture protection class: IP 40 Weight: 1.11 kg
