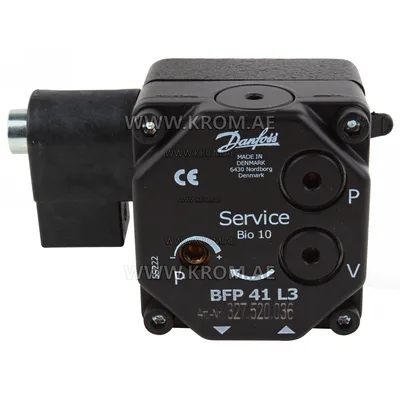

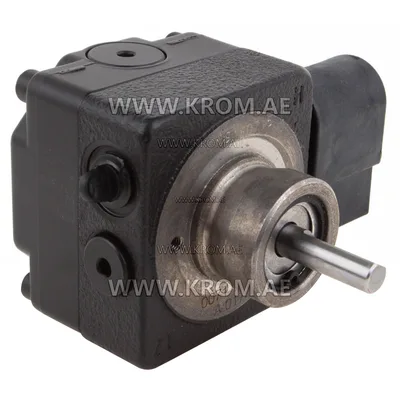

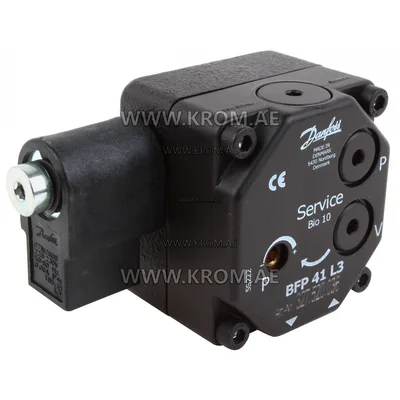

Danfoss 071N0174 BFP41 L3 oil pump

Danfoss BFP41L3 071N0174 oil pumps used in domestic burners with a flow rate up to 42 l/h. Suitable for light fuels and kerosene, supports single and two-pipe systems. Features a single pressure level, built-in pressure regulator, solenoid valve, and cassette filter. Danfoss 071N0174 BFP41L3 oil burner pump technical data: Viscosity range (in the suction line): 1.8-12.0 cSt(mm2/s) Filter area / cross-section: 11/200 cm2/microns Pressure range: 7-20 bar Factory settings: 10 ±1 bar Max. pressure in the suction/return line: 2 bar Shaft rotation speed: 2400-3450 min Max. starting torque: 0.1 Nm Ambient/transport temperature: -20 to +70 °C Fuel temperature: 0 to +70 °C Coil protection degree: IP40 Shaft: EN225
