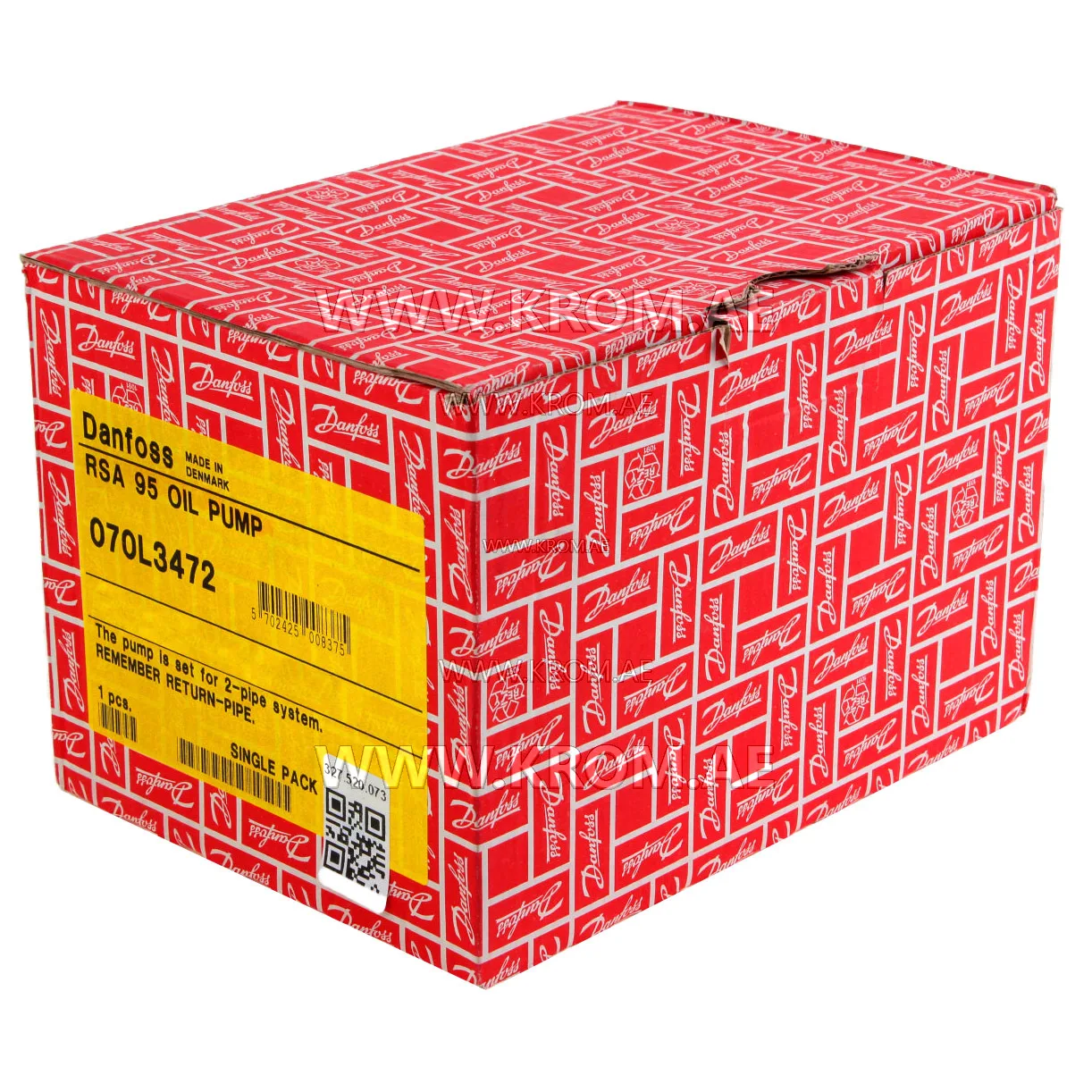

Danfoss 070L3472 RSA95 oil pump

Danfoss 070L3472 RSA95 gear pumps designed for small and medium domestic burners with a fuel flow capacity of up to 255 liters per hour. Danfoss 070L3472 RSA95 oil burner pumps are ideal for transferring light fuels, including kerosene. They offer the flexibility of single or two-pipe operation but are configured for one fixed pressure level. Danfoss RSA95 070L3472 gear pumps also feature an integrated ring filter, making them versatile for use as either transport or feed pumps. Danfoss RSA95 070L3472 gear pump technical data: Viscosity range (in the suction line): 1.3-75cSt(mm2/s) Filter area / section: 75/150 cm2/microns Pressure range: 5.5-21 bar Factory settings: 7+-1 bar Max. pressure in the suction/return line: 4 bar Shaft rotation speed: 1400-3450 min Max. starting torque: 0.30 Nm Ambient temperature: -20 to +70 °C Storage temperature: -25 to +70 °C Fuel temperature: -10 to +70 °C Shaft: EN225
