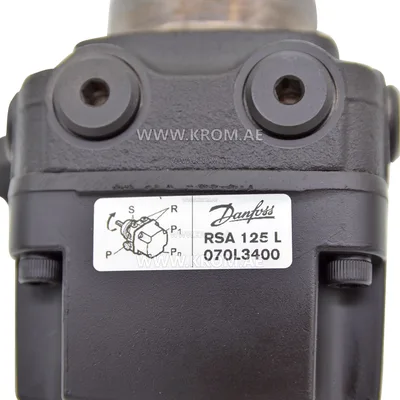

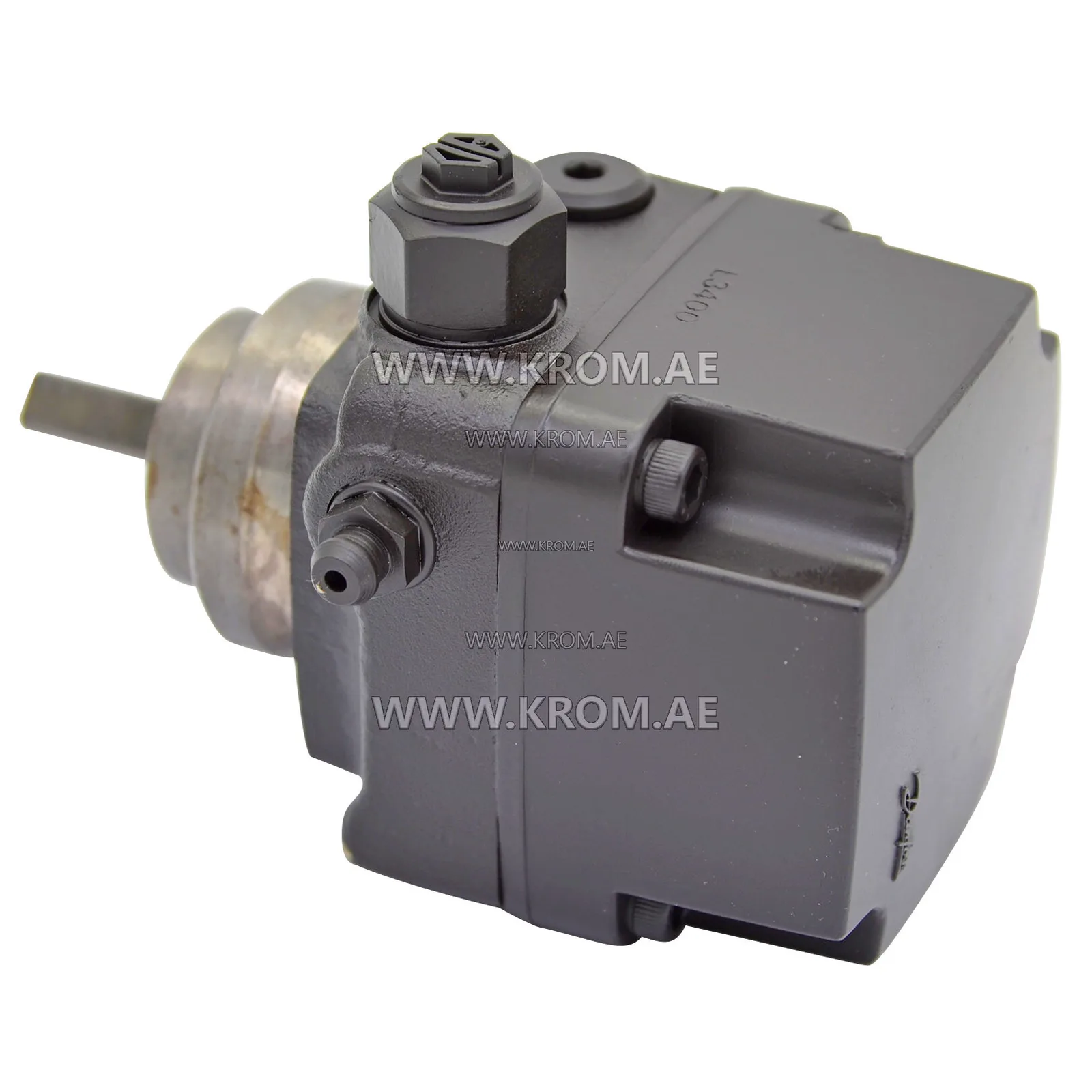

Danfoss 070L3400 RSA125 oil pump

Danfoss 070L3400 RSA125 oil burner pumps used for pumping light fuels and kerosene. It is possible to use 1 and 2 pipe operation modes. It can be used as a transport or feed pump. Danfoss RSA125 070L3400 gear pump technical data: Viscosity range (in the suction line): 1.3-75cSt(mm2/s) Filter area / section: 75/150 cm2/microns Pressure range: 5.5-21 bar Factory settings: 7+-1 bar Max. pressure in the suction/return line: 4 bar Shaft rotation speed: 1400-3450 min Max. starting torque: 0.35 Nm Ambient temperature: -20 to +70 °C Storage temperature: -25 to +70 °C Fuel temperature: -10 to +70 °C Shaft: EN225
