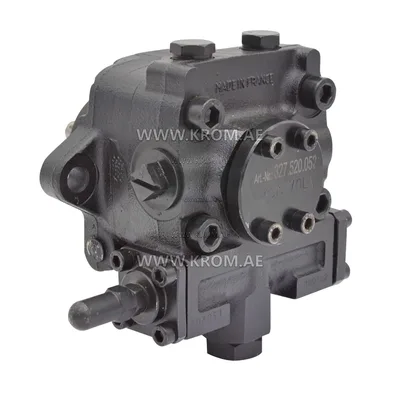

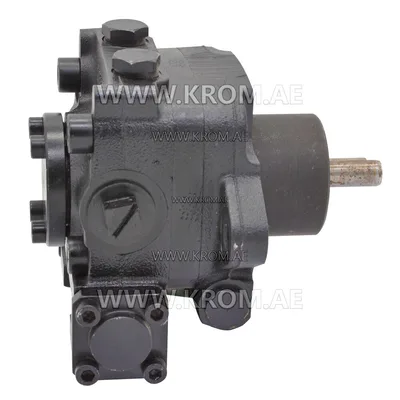

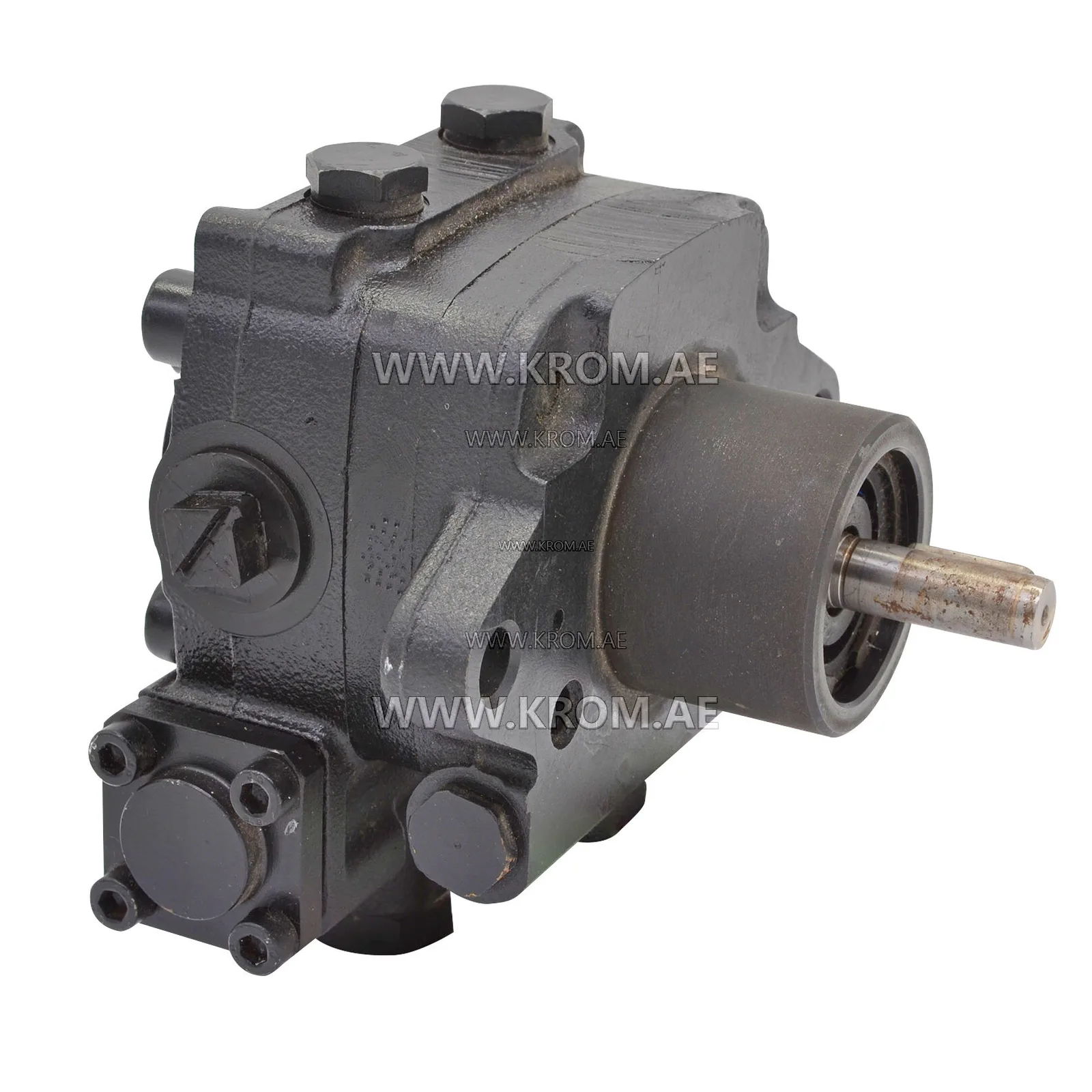

Danfoss 070H0401 KSM70L oil pump

Danfoss KSM70L 070H0401 gear pumps used in large industrial burners with fuel consumption up to 1400 l/h. Danfoss KSM70L 070H0401 oil pumps can also be used as a transport and feed pump. In this case, a special adjusting spring is used. Danfoss KSM70L 070H0401 oil burner pump technical data: All types of fuel 1 and 2-pipe operation mode 1 pressure level Built-in pressure regulator Drilling for the heating cartridge Special spring for use as a transport or feed pump 1 and 2-pipe operation mode 1 pressure level Built-in pressure regulator Drilling for cartridge loading Special spring for use as a transport or feed pump Viscosity range (in the suction line): 2.4-450 cSt(mm2/s) Pressure range: 7-40 bar Max. pressure in the suction/return line: 4 bar Shaft rotation speed: 3450 min Max. starting torque: 0.3 Nm Ambient/transport temperature: -20 to +60 °C Fuel temperature: -10 to +160 °C Weight: 7.7 kg
