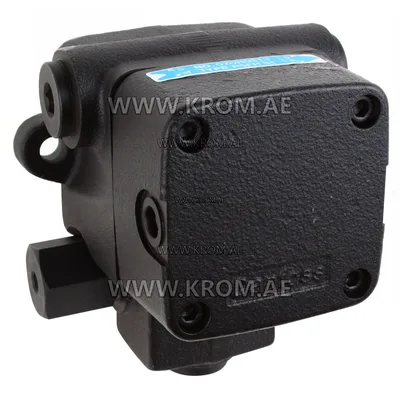

Danfoss 070H0313 RSFH31 oil pump

Danfoss 070H0313 RSFH31 gear pumps used for medium and large household burners with fuel consumption up to 600 l/h. They have a built-in pressure regulator. Danfoss 070H0313 RSFH31 oil burner pump technical data: All types of fuel 1 and 2-pipe operation mode 1 pressure level Built-in pressure regulator Drilling for the heating cartridge Special spring for use as a transport or feed pump Viscosity range (in the suction line): 2.5-450 cSt(mm2/s) Filter area / cross-section: 105/350 cm2/microns Pressure range: 14-30 bar Factory settings: 15 bar Max. pressure in the suction/return line: 4 bar Shaft rotation speed: 1400-3600 min Ambient temperature: -10 to +90 °C Storage temperature: -20 to +120 °C Fuel temperature: -10 to +120 °C Weight: 4.7 kg Shaft: EN225
