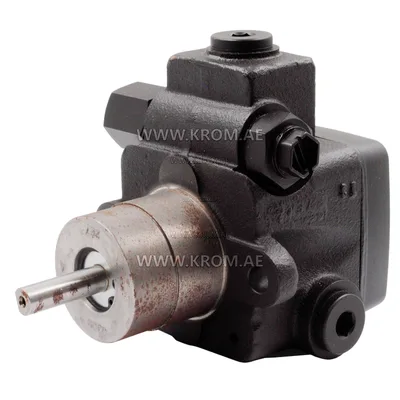

Danfoss 070H0300 RSB20L oil pump

Danfoss 070H0300 RSB20L gear pumps used for medium and large household burners with fuel consumption up to 600 l/h. They have a built-in pressure regulator with a shut-off function and a special spring for use as a transport or feed pump. Danfoss RSB20L 070H0300 oil pump technical data: All types of fuel 1 and 2-pipe operation mode 1 pressure level Built-in pressure regulator Special spring for use as a transport or feed pump Viscosity range (in the suction line): 2.5-200 cSt(mm2/s) Filter area / cross-section: 105/150 cm2/microns Pressure range: 15-35 bar Factory settings: 7-21 bar Max. pressure in the suction/return line: 4 bar Shaft rotation speed: 1400-3600 min Ambient temperature: -10 to +90 °C Storage temperature: -25 to +120 °C Fuel temperature: -10 to +120 °C Weight: 4.7 kg Shaft: EN225
