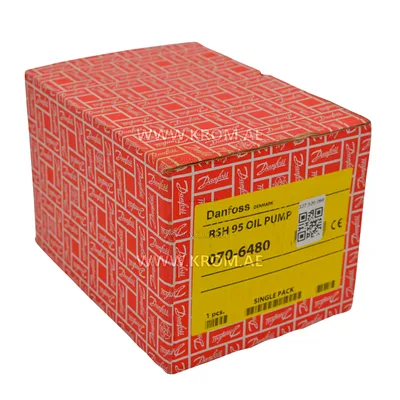

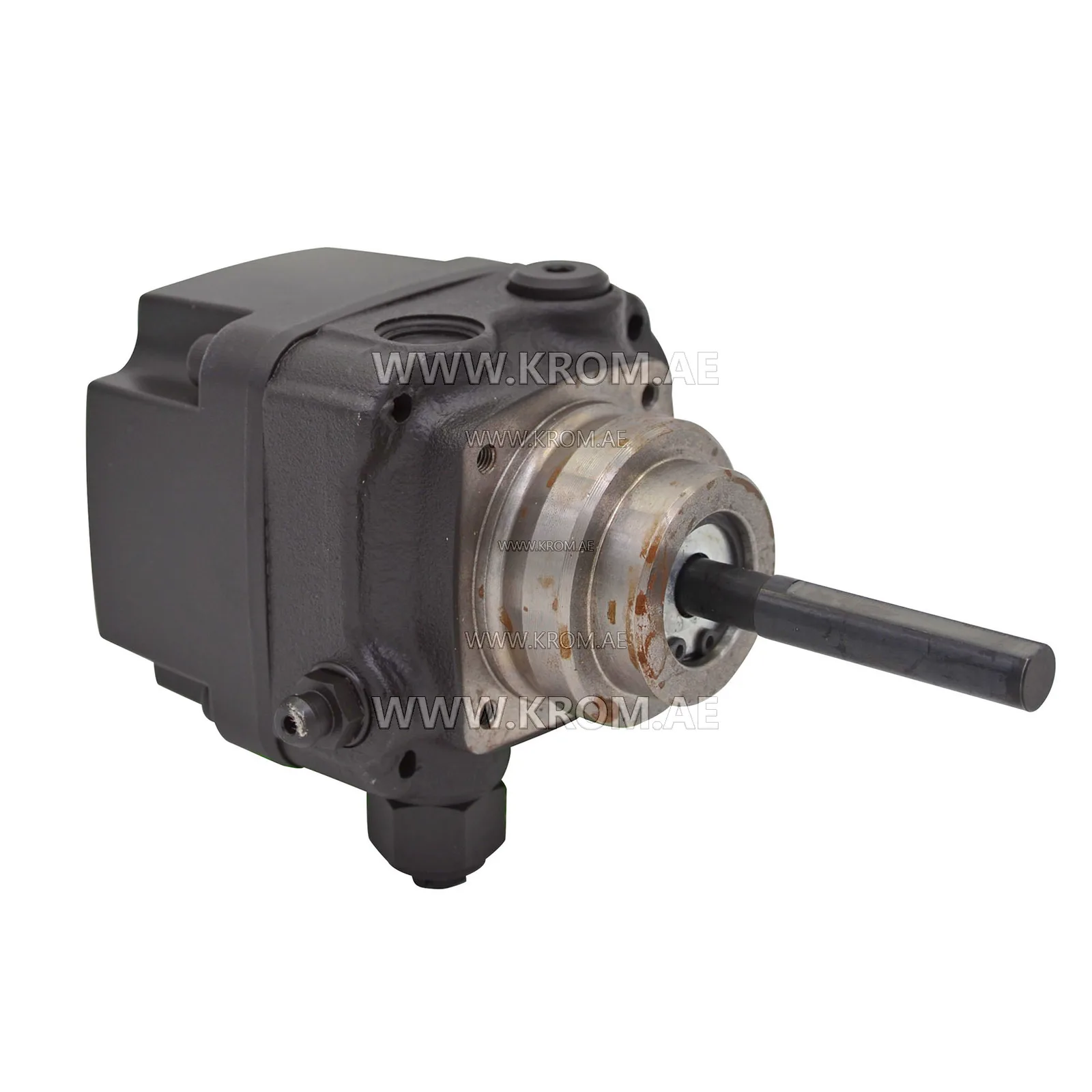

Danfoss 070-6480 RSH95 R oil pump

Danfoss RSH95R 070-6480 gear pumps for small and medium-sized household burners with fuel consumption up to 255 l/h. Danfoss 070-6480 RSH95R oil burner pumps have a built-in regulator with a shut-off function and a special spring. Danfoss 070-6480 RSH95R gear pump technical data: 1 and 2-pipe operation mode 1 pressure level Pressure regulator with shut-off function Ring filter Special spring for use as a transport or feed pump Viscosity range (in the suction line): 2.5-200 cSt(mm2/s) Filter area / cross-section: 170/340 cm2/microns Pressure range: 15-35 bar Factory settings: 21 ±1 bar Max. pressure in the suction/return line: 4 bar Shaft rotation speed: 1400-3450 min Max. starting torque: 0.30 Nm Ambient temperature: -20 to +120 °C Storage temperature: -25 to +120 °C Fuel temperature: -10 to +120 °C Shaft: EN225
