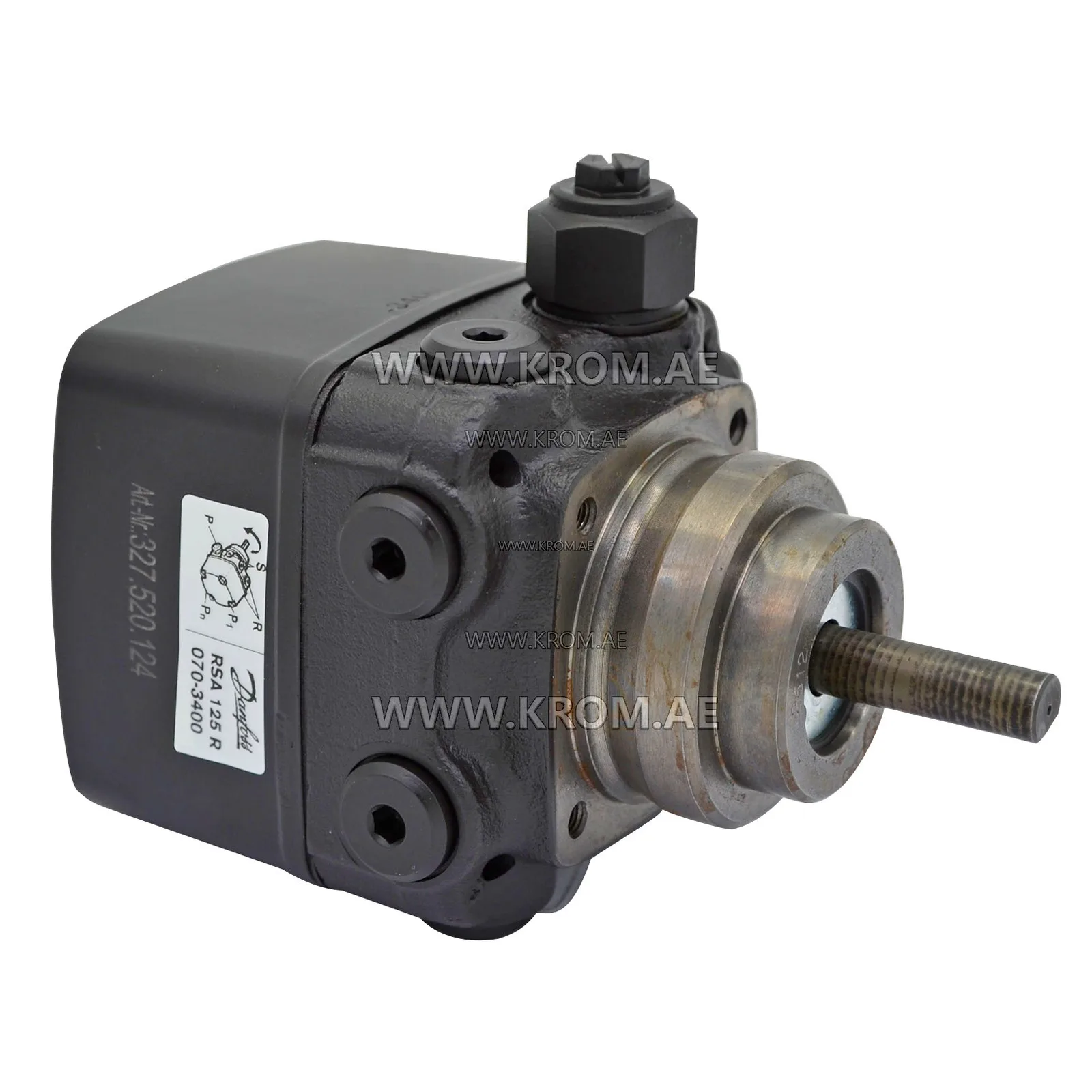

Danfoss 070-3400 RSA125 oil pump

Danfoss RSA125 070-3400 gear pumps for domestic burners with a flow of up to 255 l/h. Danfoss 070-3400 RSA125 oil burner pumps equipped with a pressure regulator and ring filter. Suitable for light fuels, operating in single or two-pipe systems. Danfoss RSA125 070-3400 oil pump technical data: Viscosity range (in the suction line): 1.3-75cSt(mm2/s) Filter area / section: 170/150 cm2/microns Pressure range: 5.5-21 bar Factory settings: 10+-1 bar Max. pressure in the suction/return line: 4 bar Shaft rotation speed: 1400-3450 min Max. starting torque: 0.35 Nm Ambient temperature: -20 to +70 °C Storage temperature: -25 to +70 °C Fuel temperature: -10 to +70 °C Shaft: EN225
