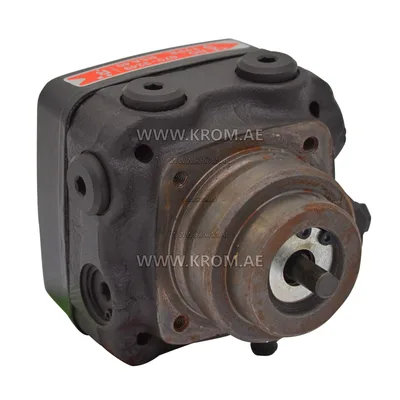

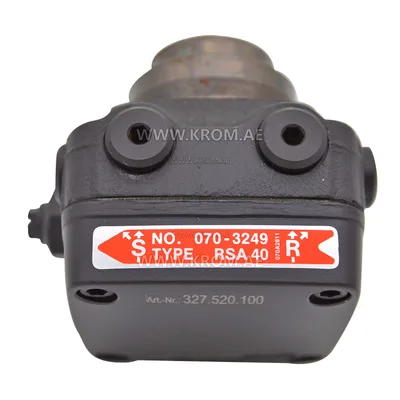

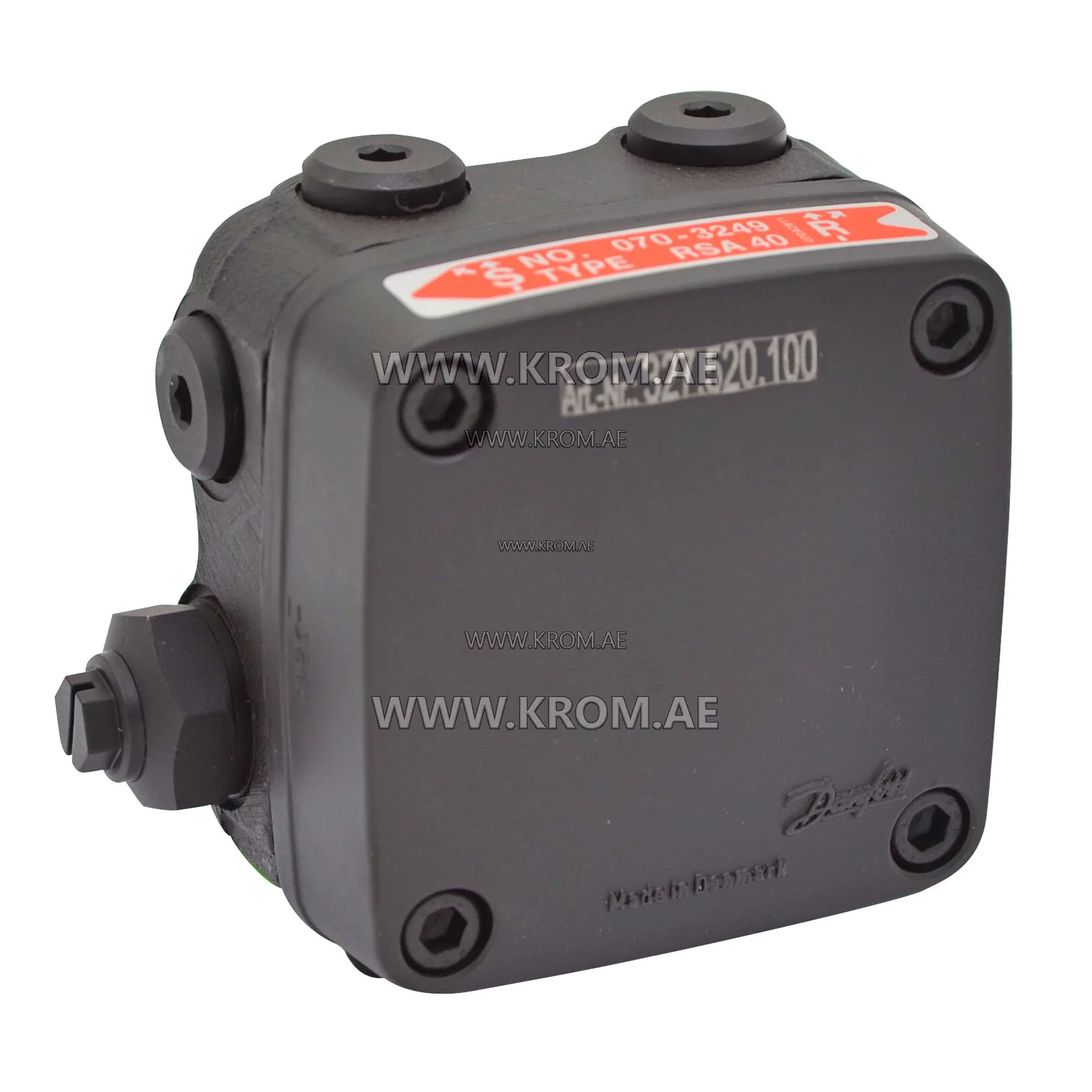

Danfoss 070-3249 RSA40 oil pump

Danfoss 070-3249 RSA40 oil burner pumps designed for small and medium-sized household burners with a maximum fuel consumption of up to 255 liters per hour. They are equipped with a built-in regulator with a locking device function and a special spring, which allows them to be used as transport or feed pumps. Danfoss RSA40 070-3249 gear pumps suitable for pumping light fuel and kerosene. Danfoss RSA40 070-3249 oil pump can operate in both single-tube and double-tube systems, but supports only one pressure level. The built-in pressure regulator and an annular filter ensure reliable operation. They can be used for transportation or fuel supply. Danfoss RSA40 070-3249 gear pump technical data: Viscosity range (in the suction line): 1.3-75cSt(mm2/s) Filter area / section: 75/150 cm2/microns Pressure range: 5.5-21 bar Factory settings: 7+-1 bar Max. pressure in the suction/return line: 4 bar Shaft rotation speed: 1400-3450 min Max. starting torque: 0.22 Nm Ambient temperature: -20 to +70 °C Storage temperature: -25 to +70 °C Fuel temperature: -10 to +70 °C Shaft: EN225
