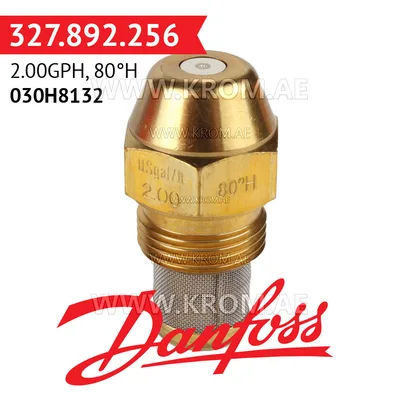

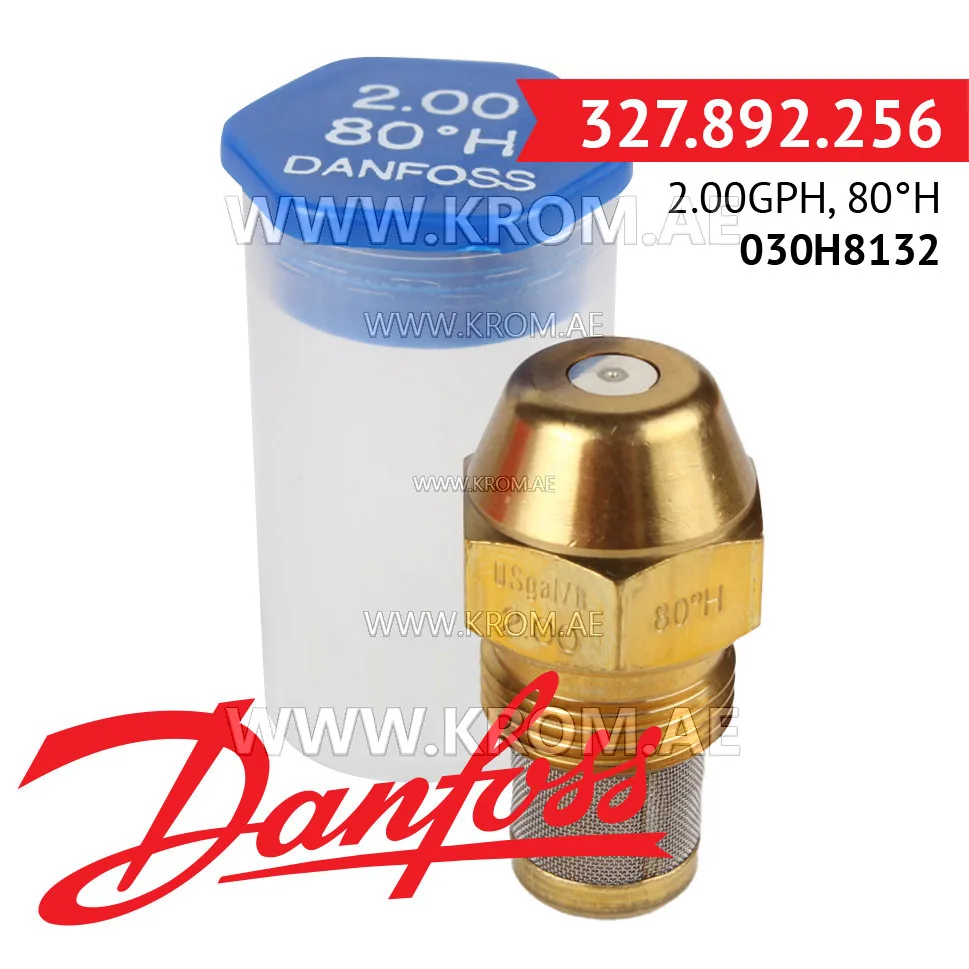

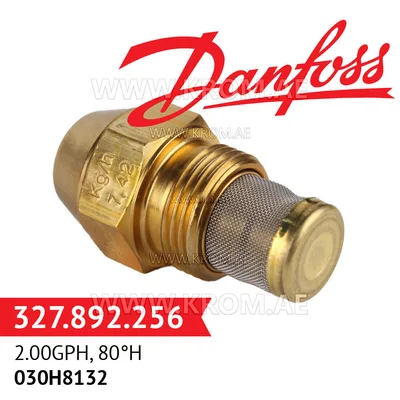

Danfoss 030H8132 2.00GPH, 80H oil nozzle

Danfoss 030H8132 oil nozzles play an important role in the burner, ensuring efficient and controlled combustion of fuel. These small devices are responsible for spraying the fuel into a fine, tiny droplet, facilitating its effective ignition and combustion inside the burner. Danfoss 030H8132 oil burner nozzles have different sizes and spray angles, allowing precise fuel distribution according to the specific requirements of the burner and heating system. The correct selection and installation of Danfoss 030H8132 oil nozzles is necessary to achieve optimal combustion efficiency, reduce emissions and maximize overall burner performance. Proper maintenance and periodic replacement of fuel injectors are also necessary to ensure optimal burner operation. Application Danfoss 030H8132 oil burner nozzles are used in household and industrial high-pressure burners running on all types of fuel. Technical parameters Capacity: 7.42 kg/h Capacity: 2 gallons/hour Spray angle: 80° Spray Pattern: Hollow Spray pattern marking: H Nozzle type: OD H Filter grade: 140 µm Filter Type: Monel strainer Safety Valve: No Material type: Brass Shape: Conical Gross weight: 0.035 kg Net weight: 0.033 kg
