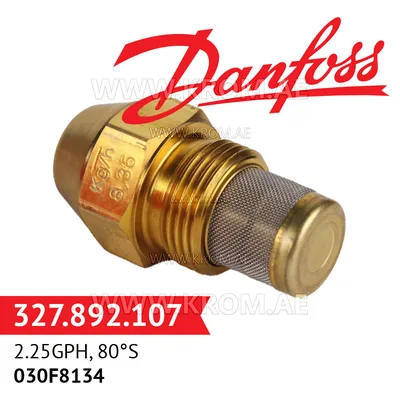

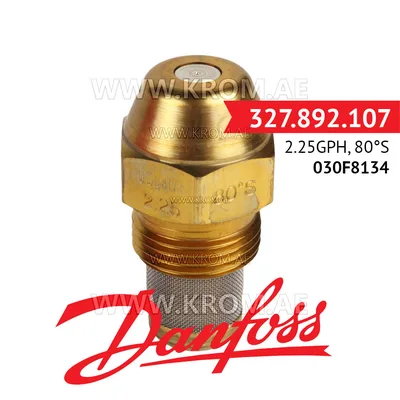

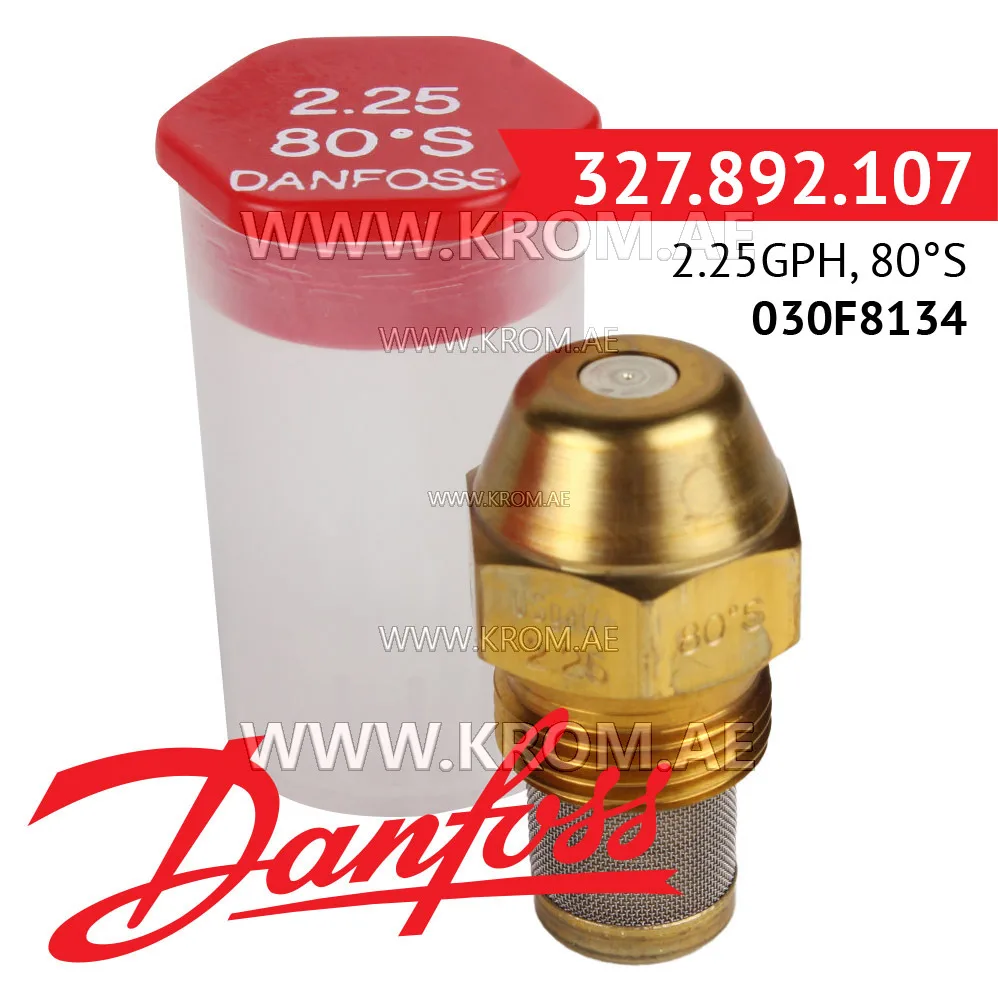

Danfoss 030F8134 2.25GPH, 80S oil nozzle

Danfoss 030F8134 oil burner nozzles in burners play an important role in the fuel combustion process, ensuring efficient mixing with air and regulating the fuel supply for optimal combustion. Despite the importance of Danfoss 030F8134 oil nozzles, regular maintenance and operation monitoring are necessary to prevent possible breakdowns and ensure long-term and efficient operation of the heating system. Technical parameters Capacity: 8.35 kg/h Capacity: 2.25 gallons/hour Spray angle: 80° Spray Pattern: Solid Spray pattern marking: S Nozzle type: OD S Filter grade: 140 µm Filter Type: Monel strainer Safety Valve: No Material type: Brass Shape: Conical Gross weight: 0.035 kg Net weight: 0.034 kg
