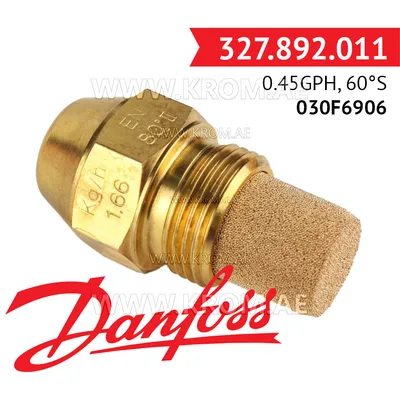

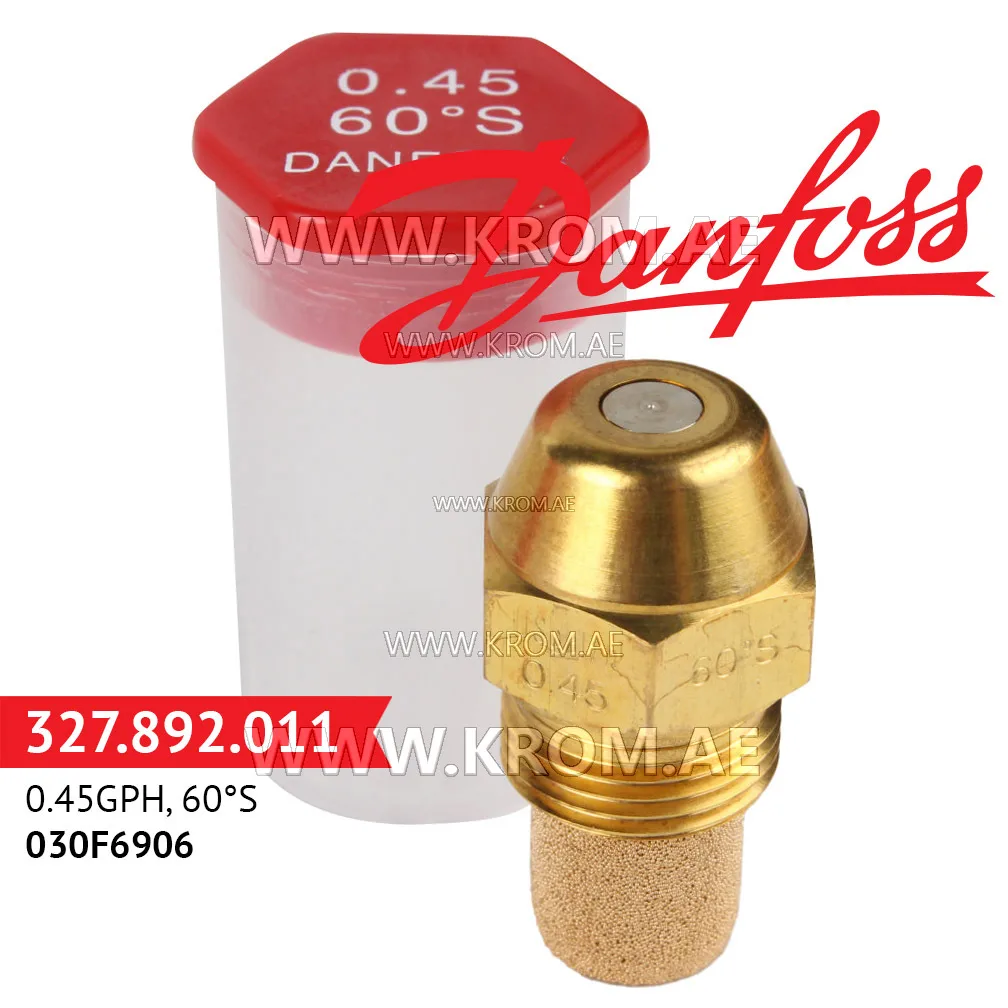

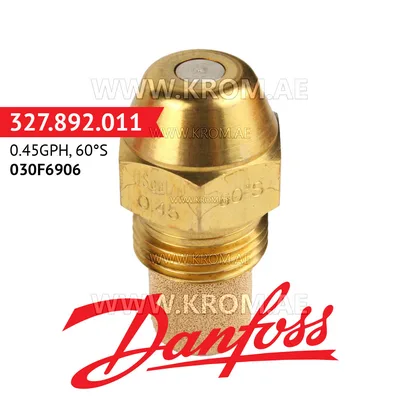

Danfoss 030F6906 0.45GPH, 60S oil nozzle

Danfoss 030F6906 oil burner nozzles in burners are used to spray fuel, providing optimal combustion conditions. Danfoss 030F6906 oil nozzles supply fuel under pressure into a special channel, where it is dispersed into the smallest droplets or scattered into the air. The design of the injectors depends on the type of fuel and the requirements of the process. Danfoss 030F6906 oil nozzles may have additional elements, for example, a preheater or pressure regulators. Problems with injectors include clogging, wear and leaks, so regular maintenance and replacement are necessary for efficient operation. Danfoss 030F6906 oil burner nozzle product details: Capacity: 1.66 kg/h Capacity: 0.45 gallons/hour Spray angle: 60° Spray Pattern: Solid Spray pattern marking: S Nozzle type: OD S Filter grade: 45 µm Filter Type: Sinter Safety Valve: No Material type: Brass Shape: Conical Gross weight: 0.035 kg Net weight: 0.034 kg
