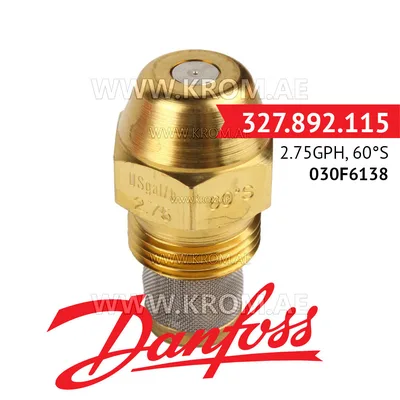

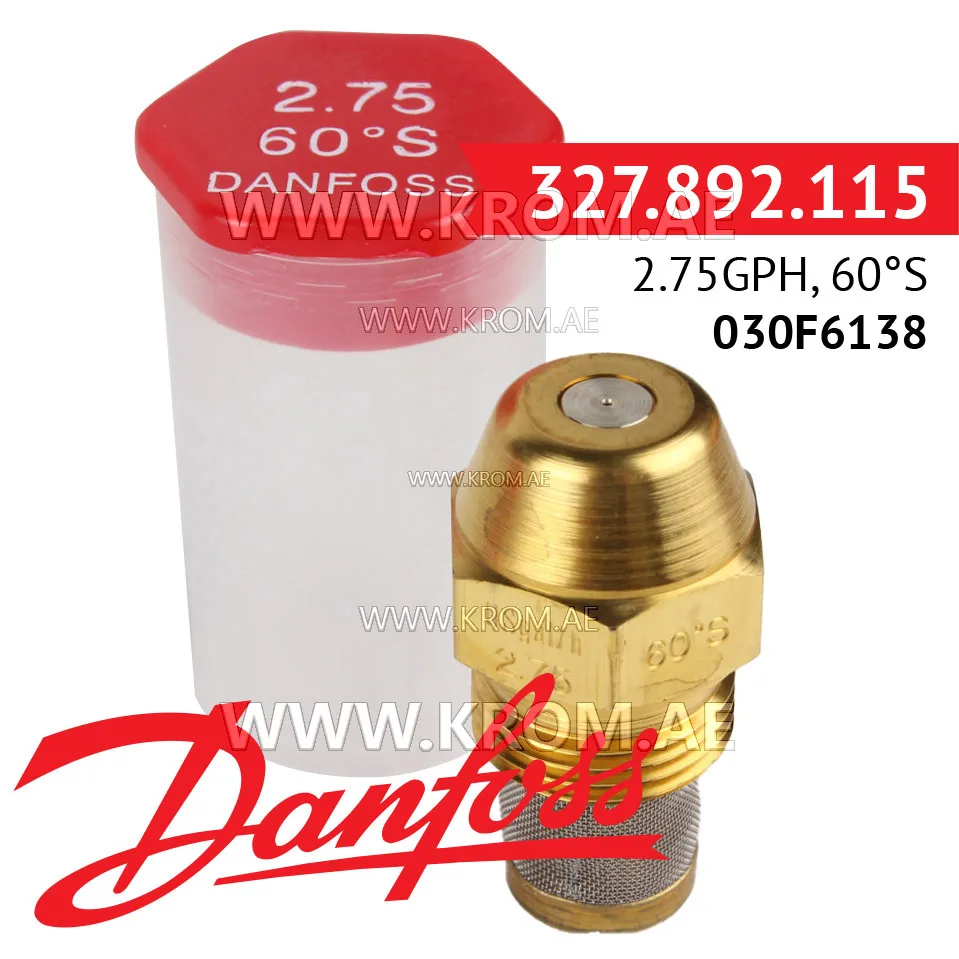

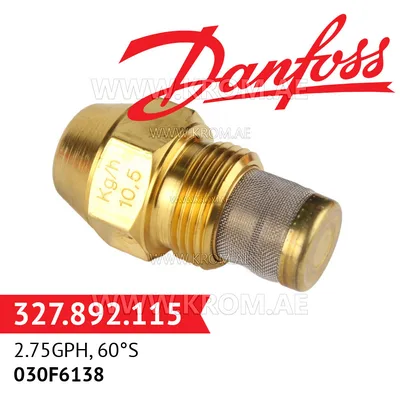

Danfoss 030F6138 2.75GPH, 60S oil nozzle

Danfoss 030F6138 oil nozzles in burners are designed to spray fuel before it enters the burner or combustion chamber. These components play an important role in the system, ensuring efficient mixing of fuel with air and creating optimal conditions for the combustion process. Danfoss 030F6138 oil burner nozzles are used in various technical devices, including heating boilers, gas stoves and even aircraft engines. The principle of operation of the Danfoss 030F6138 oil nozzles is based on the mechanism of liquid dispersion into the smallest droplets. Under the influence of high pressure, the fuel passes through a narrow channel in the nozzle, where it is separated into the smallest particles. These fuel droplets are then evenly sprayed in the air stream, creating a mixture of fuel and air with an optimal ratio for efficient combustion. Danfoss 030F6138 oil burner nozzles play a key role in ensuring fuel combustion efficiency, which is a critical factor for saving energy, reducing emissions and ensuring stable operation of various technical devices. Danfoss 030F6138 oil burner nozzle product details: Capacity: 10.48 kg/h Capacity: 2.75 gallons/hour Spray angle: 60° Spray Pattern: Solid Spray pattern marking: S Nozzle type: OD S Filter grade: 140 µm Filter Type: Monel strainer Safety Valve: No Material type: Brass Shape: Conical Gross weight: 0.035 kg Net weight: 0.034 kg
