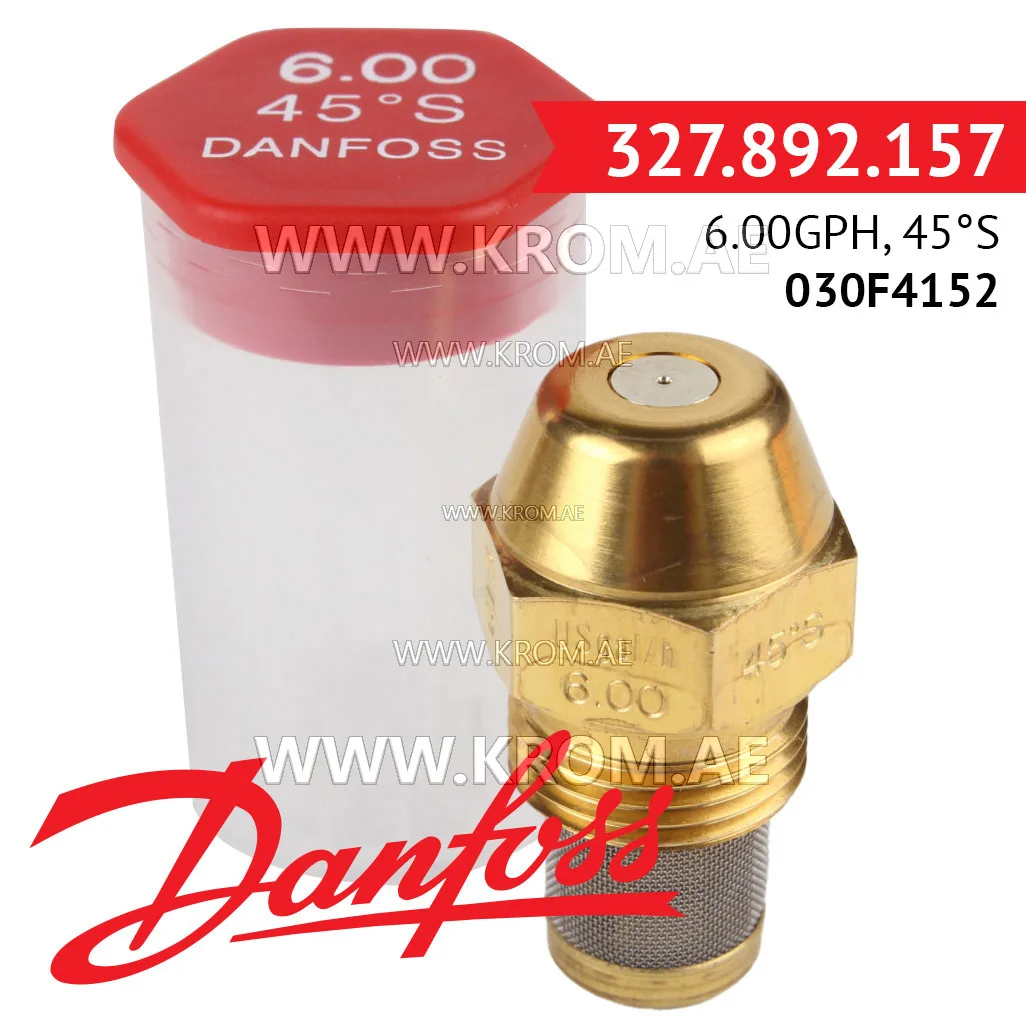

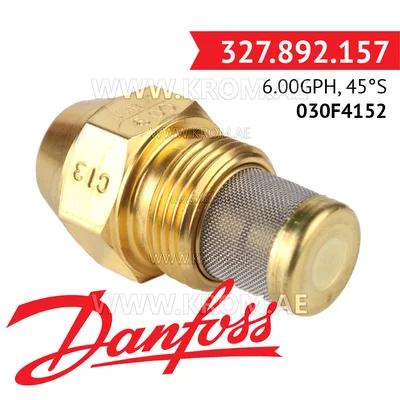

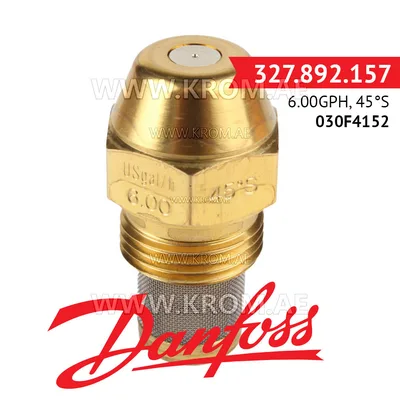

Danfoss 030F4152 6.00GPH, 45S oil nozzle

Danfoss 030F4152 oil nozzles are used in household and industrial high-pressure burners running on all types of fuel. Danfoss 030F4152 oil burner nozzles play an important role in the burner, ensuring efficient and controlled combustion of fuel. These small devices are responsible for spraying the fuel into a fine, tiny droplet, facilitating its effective ignition and combustion inside the burner. Danfoss 030F4152 oil nozzles have different sizes and spray angles, allowing precise fuel distribution according to the specific requirements of the burner and heating system. The correct selection and installation of Danfoss diesel injectors is necessary to achieve optimal combustion efficiency, reduce emissions and maximize overall burner performance. Proper maintenance and periodic replacement of fuel injectors are also necessary to ensure optimal burner operation. Danfoss 030F4152 oil burner nozzle product details: Capacity: 23.35 kg/h Capacity: 6 gallons/hour Spray angle: 45° Spray Pattern: Solid Spray pattern marking: S Nozzle Type: OD S Filter grade: 140 µm Filter Type: Monel strainer Safety Valve: No Material type: Brass Shape: Conical Gross weight: 0.035 kg Net weight: 0.034 kg
