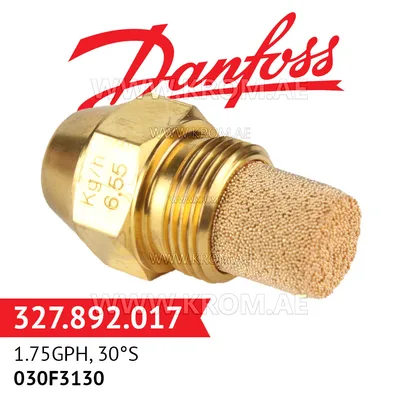

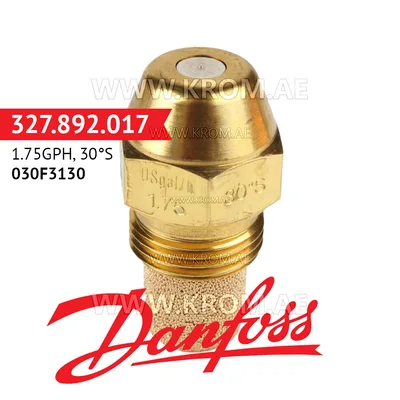

Danfoss 030F3130 1.75GPH, 30S oil nozzle

The Danfoss 030F3130 oil nozzle includes a fuel supply adjustment mechanism, which allows you to adapt the combustion process to the changing operating conditions of the system. This is important to ensure stable and efficient operation of the burner under various loads and changes in external parameters such as ambient temperature or fuel composition. The Danfoss 030F3130 oil nozzle in the burners is the key element responsible for spraying and mixing fuel with air to ensure optimal combustion. Danfoss 030F3130 oil burner nozzle product details: Capacity: 6.55 kg/h Capacity: 1.75 gallons/hour Spray angle: 30° Spray Pattern: Solid Spray pattern marking: S Nozzle Type: OD S Filter grade: 75 µm Filter Type: Sinter Safety Valve: No Material type: Brass Shape: Conical Gross weight: 0.032 kg Net weight: 0.031 kg
