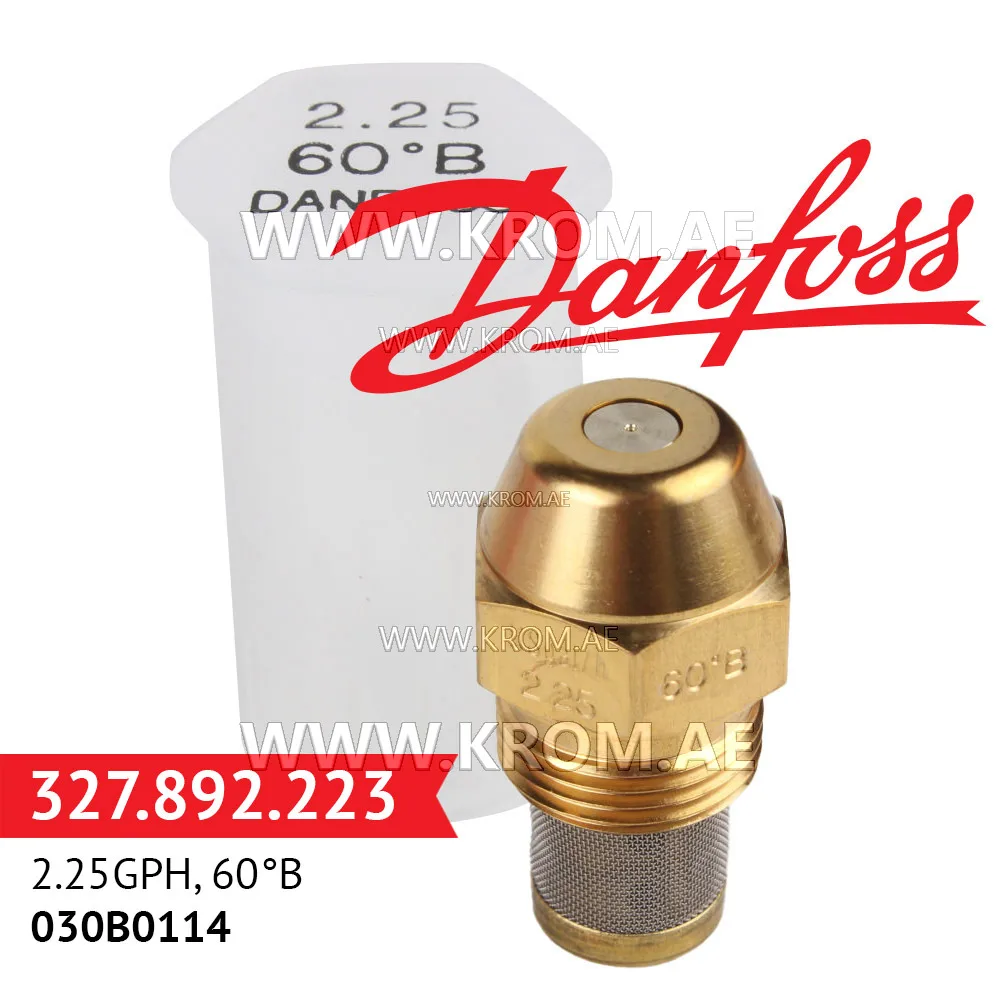

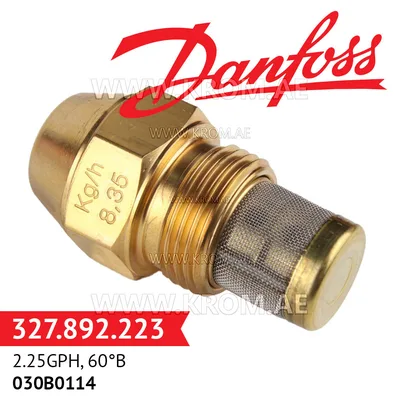

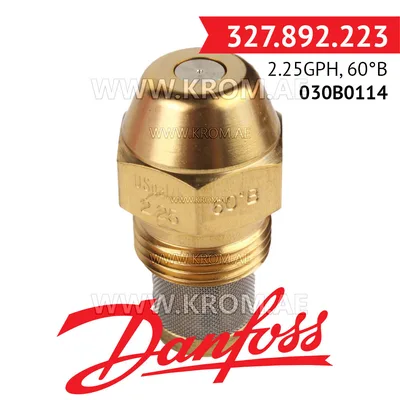

Danfoss 030B0114 2.25GPH, 60B oil nozzle

Danfoss 030B0114 oil nozzles in burners play an important role in burning fuel for power supply of heating systems and other devices. Danfoss 030B0114 oil burner nozzles perform the following functions: 1. Fuel dose adjustment: Provides an optimal fuel-air ratio, maximizing thermal efficiency and reducing emissions. 2. Fuel spraying: Creates fine droplets for uniform mixing with air and efficient combustion. 3. Flame formation: Determines the shape of the flame to evenly warm up and prevent the formation of carbon monoxide. 4. Fuel economy: Promotes efficient and energy-saving use of fuel. 5. Emission reduction: Controls combustion to reduce emissions of harmful substances. Danfoss 030B0114 oil burner nozzle product details: Capacity: 8.35 kg/h Capacity: 2.25 gallons/hour Spray angle: 60° Spray Pattern: Semi-solid Spray pattern marking: B Nozzle type: OD B Filter grade: 140 µm Filter Type: Monel strainer Safety Valve: No Material type: Brass Shape: Conical Gross weight: 0.035 kg Net weight: 0.034 kg
