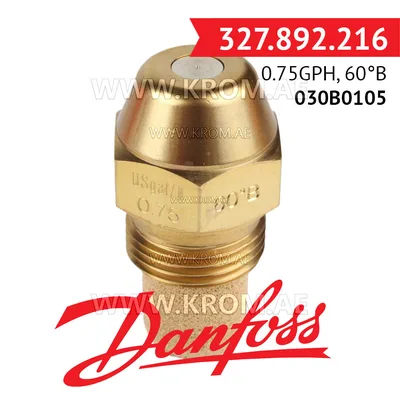

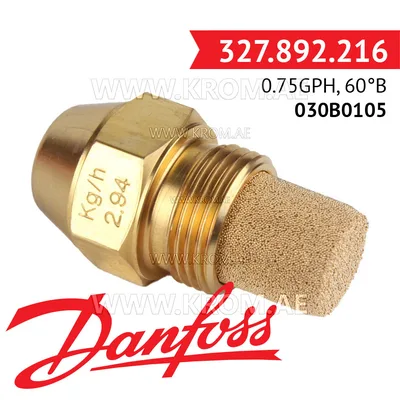

Danfoss 030B0105 0.75GPH, 60B oil nozzle

Danfoss 030B0105 oil nozzles in burners are used to spray fuel before it is fed into the burner or combustion chamber. This is an important element of the system, which ensures efficient mixing of fuel with air, creating optimal conditions for combustion. Danfoss 030B0105 oil burner nozzles are used in various technical devices such as heating boilers, gas stoves, aircraft engines, and many others. The principle of operation of Danfoss 030B0105 oil nozzles is based on the principle of liquid dispersion into small droplets. Under high pressure, the fuel is passed through a narrow channel in the nozzle, where it is separated into small particles. These fuel droplets are then evenly sprayed in the air stream, which creates a mixture of fuel and air with an optimal ratio for combustion. Danfoss 030B0105 oil nozzles play a key role in ensuring fuel combustion efficiency, which is important for saving energy, reducing emissions and ensuring stable operation of technical devices. Danfoss 030B0105 oil burner nozzle product details: Capacity: 2.94 kg/h Capacity: 0.75 gallons/hour Spray angle: 60° Spray Pattern: Semi-solid Spray pattern marking: B Nozzle type: OD B Filter grade: 45 µm Filter Type: Sinter Safety Valve: No Material type: Brass Shape: Conical Gross weight: 0.034 kg Net weight: 0.033 kg
