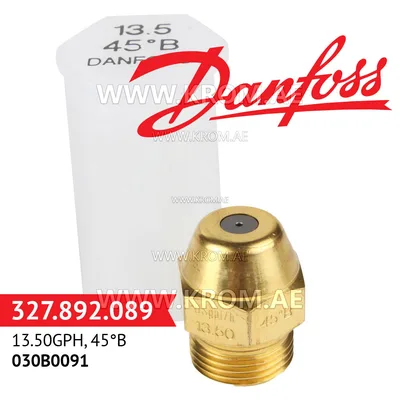

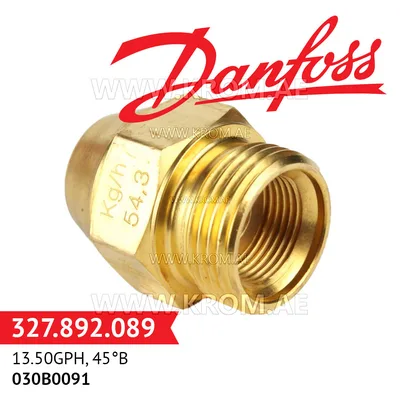

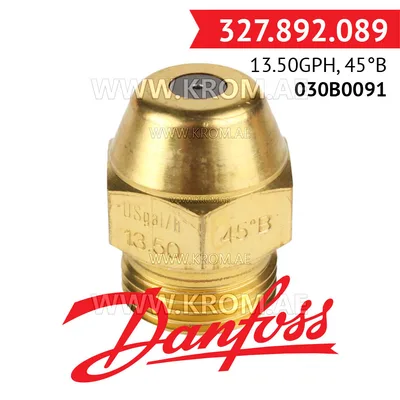

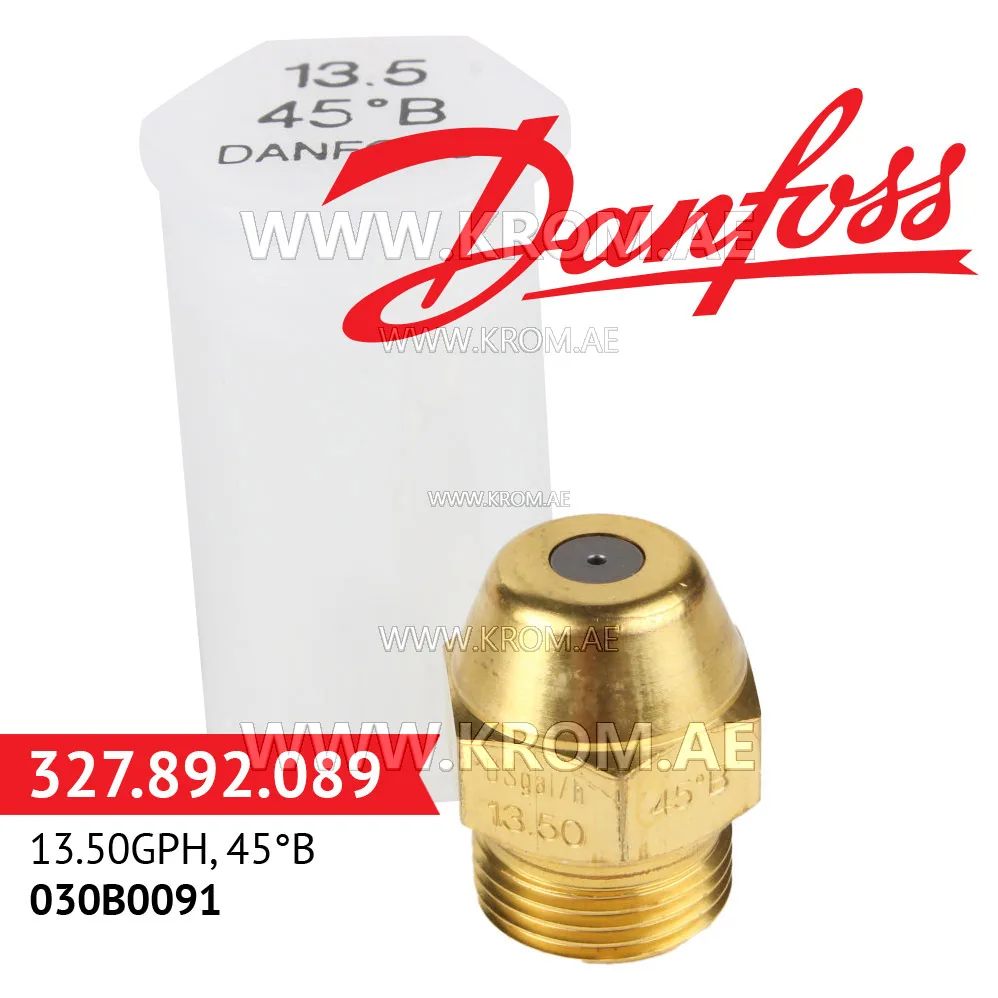

Danfoss 030B0091 13.50GPH, 45B oil nozzle

The principle of operation of the Danfoss 030B0091 oil nozzles is based on the mechanism of liquid dispersion into the smallest droplets. Under the influence of high pressure, the fuel passes through a narrow channel in the nozzle, where it is separated into the smallest particles. These fuel droplets are then evenly sprayed in the air stream, creating a mixture of fuel and air with an optimal ratio for efficient combustion. Danfoss 030B0091 oil burner nozzle product details: Capacity: 54.29 kg/h Capacity: 13.5 gallons/hour Spray angle: 45° Spray Pattern: Semi-solid Spray pattern marking: B Nozzle type: OD B Filter Type: Sinter Safety Valve: No Material type: Brass Shape: Conical Gross weight: 0.027 kg Net weight: 0.026 kg
