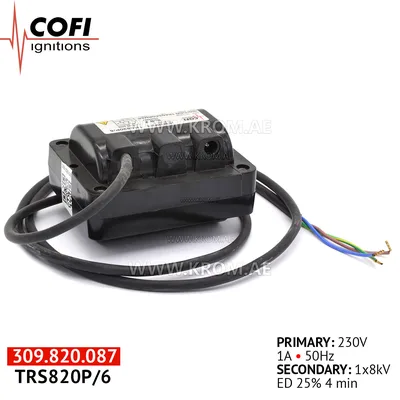

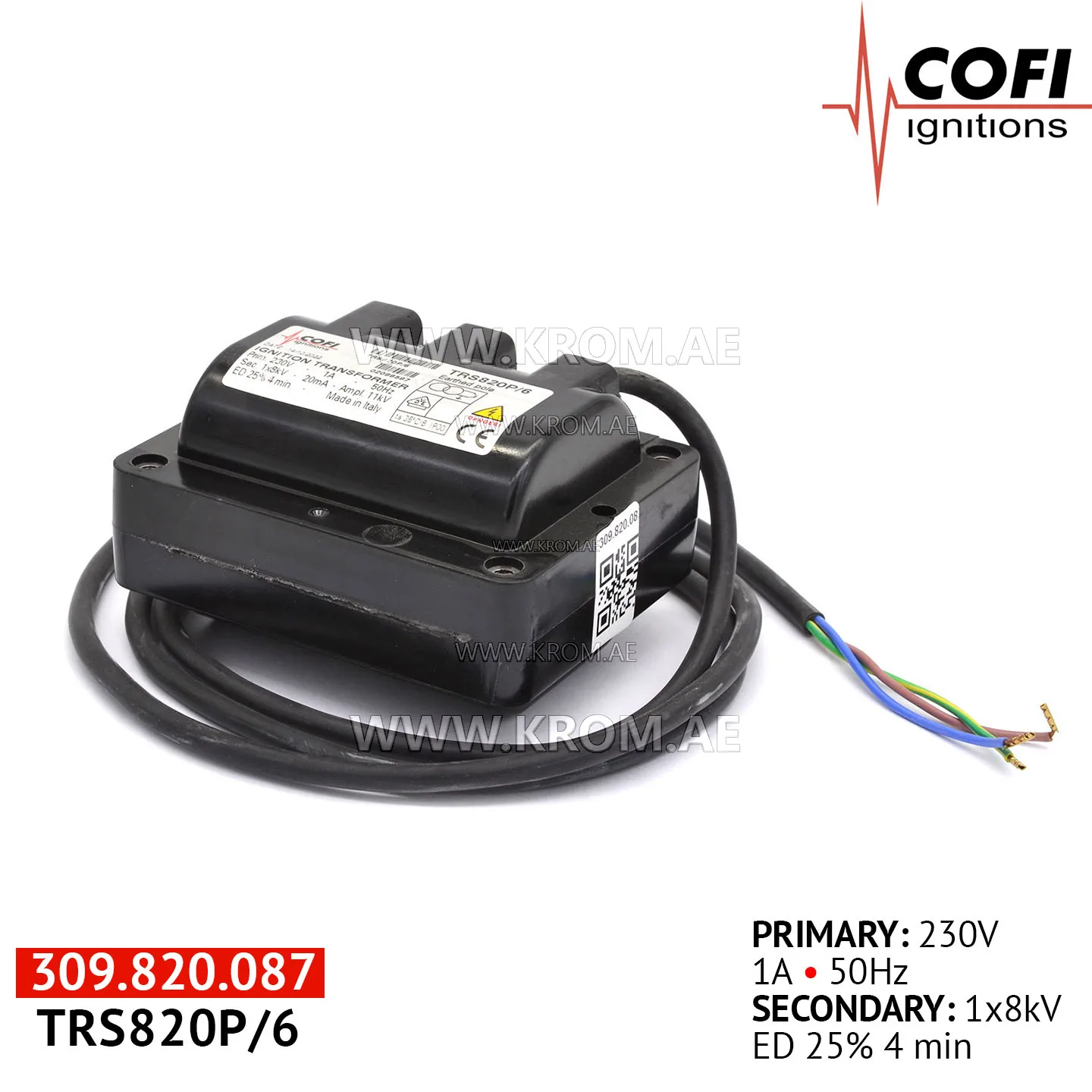

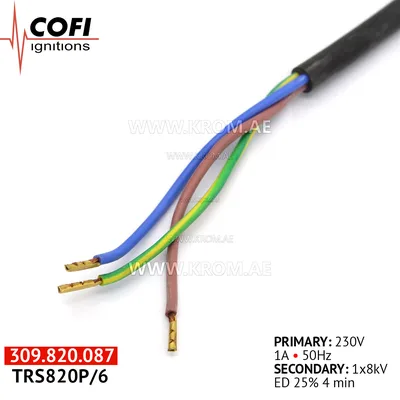

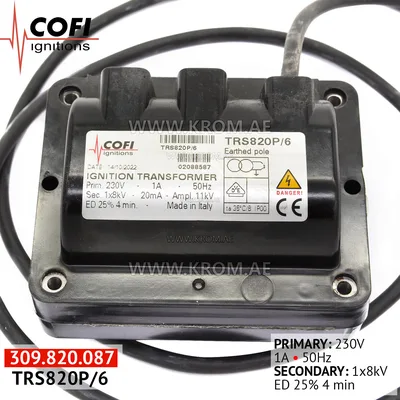

Cofi TRS820P/6 ignition transformer

Ignition transformer COFI TRS820P/6 (part number 309.820.087) — reliable Italian high-voltage transformer with single output 8 kV. COFI TRS820P/6 is a proven Italian-made ignition transformer designed for stable ignition in small and medium power liquid fuel burners running on diesel, fuel oil or waste oil. The model with a single high-voltage output provides a powerful and stable spark, ensuring reliable ignition even in difficult conditions. Main technical specifications: Power supply: 230 V, 50 Hz, 1 A Output voltage: 1 × 8 kV (peak up to 11 kV) Ignition current: 20 mA Duty cycle: 25% ED (within 4 minutes) Type: Traditional electromagnetic, with grounded pole Dimensions (net): 150 × 86 × 66 mm Weight: 1.905 kg (net) / 1.980 kg (gross) Connectors: Ø 4 mm for high-voltage cable Durable epoxy-filled housing reliably protects windings from overheating, vibration and humidity. Compact dimensions allow easy installation of the transformer in limited burner space. Advantages of COFI TRS820P/6: Excellent ignition of heavy fuel — ideal for diesel and fuel oil burners. High reliability and durability — Italian COFI quality according to CEI EN 61558-2-3. Easy installation and standard connectors. Wide compatibility with burners Riello, Ecoflam, FBR, Baltur, Lamborghini, Bentone, Giersch and many others. Cost-effectiveness and stable operation over many years of service. The TRS820P/6 transformer is the optimal choice for service engineers, heating equipment manufacturers and boiler owners operating on liquid fuel. It reduces the number of failed ignition attempts, reduces electrode wear and ensures uninterrupted burner operation. Buy ignition transformer COFI TRS820P/6 — sign
