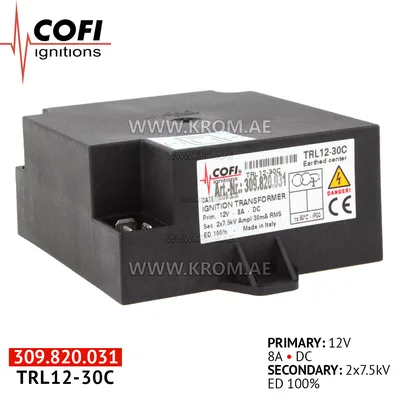

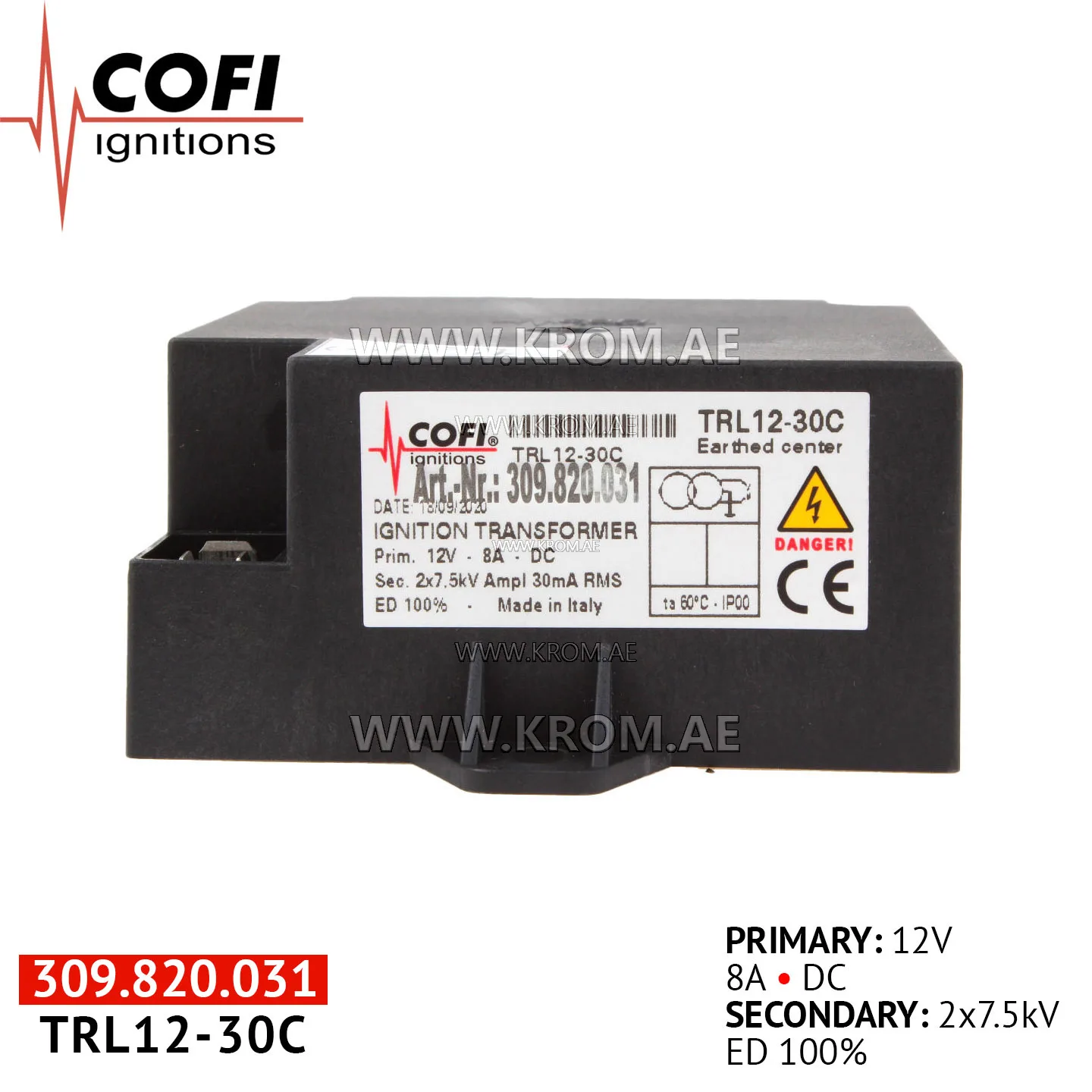

Cofi TRL12-30C ignition transformer

Transformer COFI TRL12-30C (art. TRL12-30C) — high-voltage ignition transformer designed to generate a spark in automatic ignition systems of gas, diesel, and dual-fuel burners. It operates from 12V DC and provides stable fuel ignition in burner equipment. The model is used in systems requiring a compact and reliable high-voltage source for ignition electrodes. Specifications: manufacturer: COFI model: TRL12-30C article: 309.820.031 manufacturer article: TRL12-30C supply voltage: 12V DC current: 8 A output voltage: 2 × 7.5 kV length: 90 mm width: 81 mm depth: 40 mm package length: 140 mm package width: 100 mm package depth: 40 mm net weight: 0.495 kg gross weight: 0.520 kg Advantages: operation from low voltage 12V DC stable spark formation original COFI transformer compact size reliable operation in automatic ignition systems resistance to loads long service life Application: gas burners diesel burners dual-fuel burners boiler equipment automatic ignition systems Using the original COFI TRL12-30C transformer ensures reliable burner start-up, stable operation of the ignition system, and reduced risk of equipment failures.
