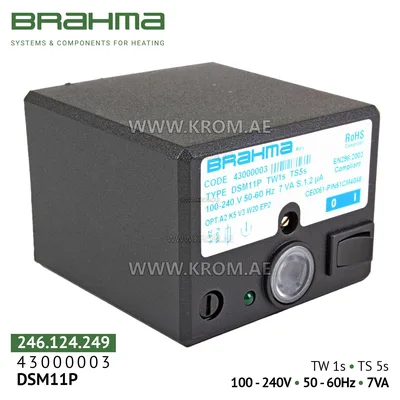

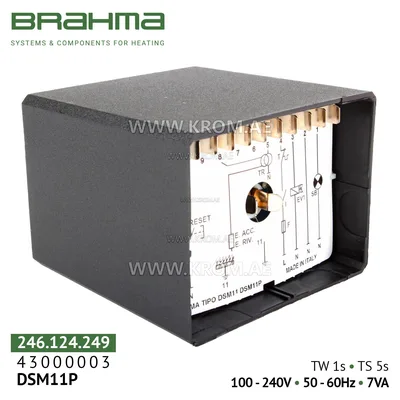

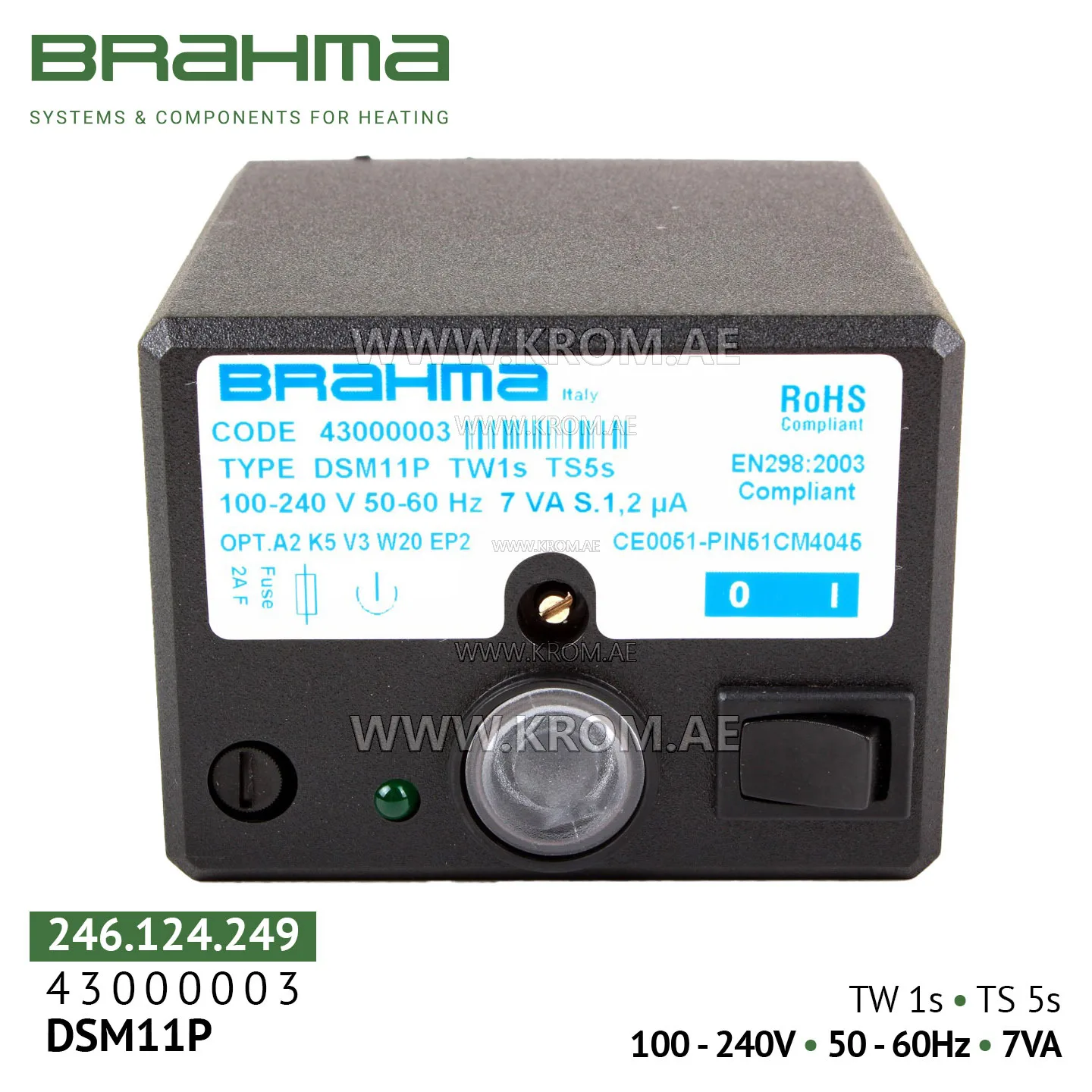

Brahma 43000003 DSM11P control box

Brahma DSM11P (art. 43000003 / 246.124.249) is a modern and reliable solution for automating the combustion process in industrial gas installations. It fully controls the burner operation — from ignition to safe shutdown. Purpose and application The Brahma DSM11P device is specially designed for use with two-stage atmospheric gas burners. It controls burners equipped with one electrode for ignition and flame monitoring, and also works with burners where these functions are separated. This "burner control" is suitable for: Industrial and domestic heating boilers; Heat generators and heat guns; Other gas-consuming equipment with a continuous operating cycle. Main functions and features Full automation of the combustion process: The Brahma DSM11P controller manages all stages of burner operation, from pre-purge to emergency shutdown. All that is required from the operator is to reset the lockout if necessary. Instant response to flame loss: Safety is a key priority. In case of flame extinction, the controller reacts in less than 1 second, instantly shutting off the gas supply. High safety class and manual reset: In any abnormal situation (ignition failure, no flame), the device goes into lockout mode, which can only be reset manually by pressing a button on the housing. This eliminates the risk of spontaneous start-up and meets the highest safety standards. Self-diagnostics and flexible settings: The controller has self-diagnostic functions and allows programming of operating cycles, which makes it possible to adapt it to specific burner requirements. Built-in ignition transformer: The device is equipped with a built-in high-voltage transformer, which simplifies installation and eliminates the need for an external one.
