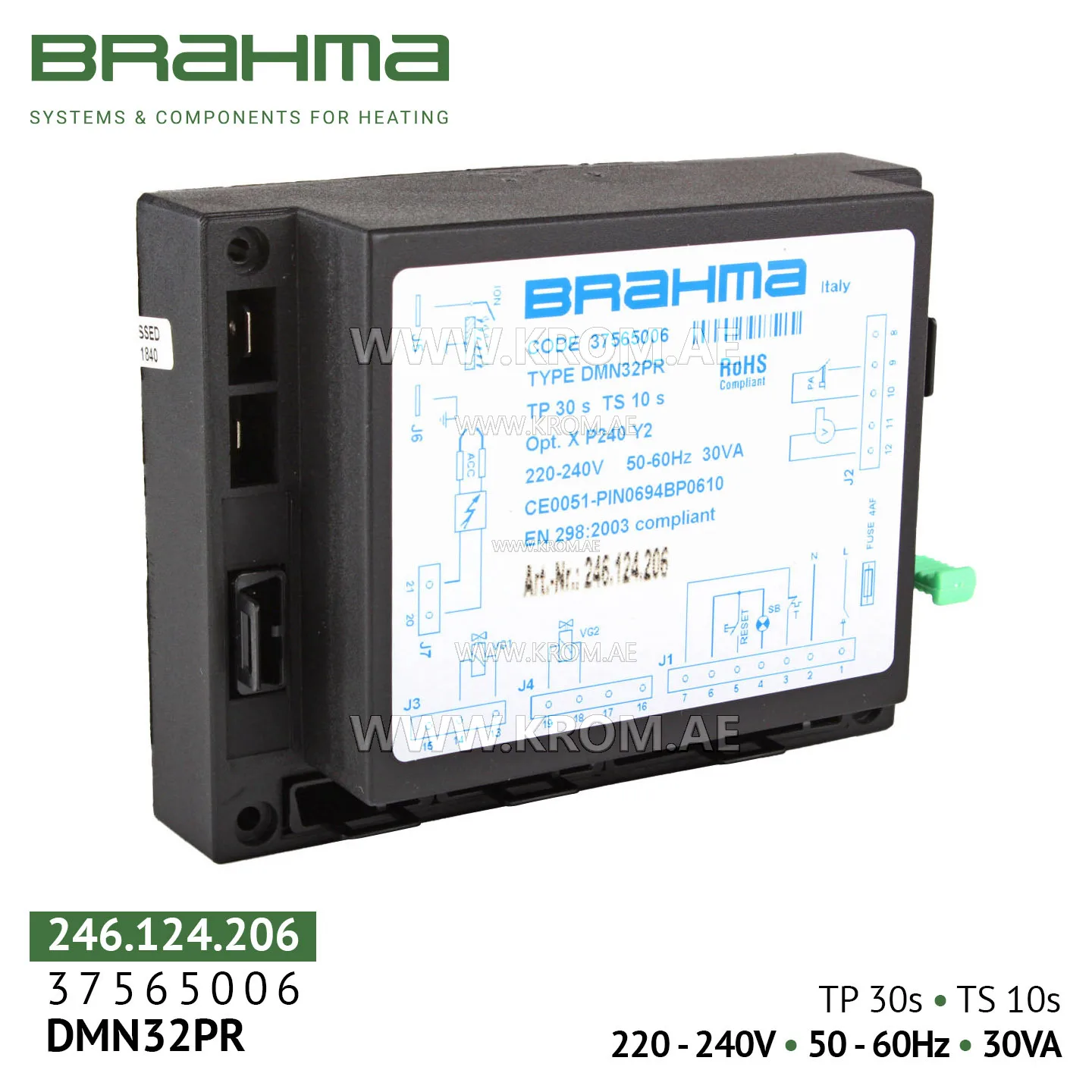

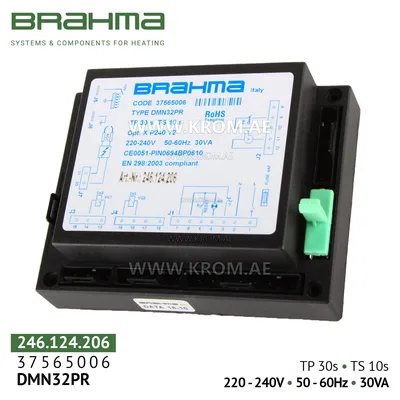

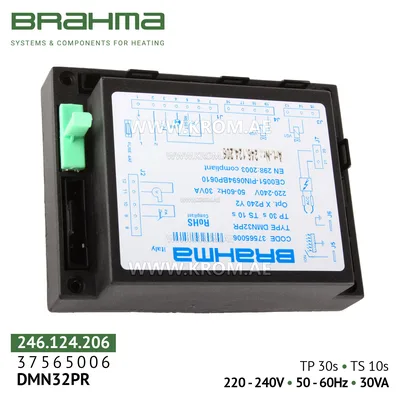

Brahma 37565006 DMN32PR control box

Brahma DMN32PR (art. 37565006 / 246.124.206) is a flagship solid-state microprocessor controller ("burner manager") that provides the highest level of automation and safety for modulating (progressive) gas and oil burners with fan. This intelligent device fully manages all stages of combustion: from ignition to flame monitoring and safe shutdown. For what equipment is it suitable? This controller is an ideal solution for professional heat generating equipment where precise control and maximum reliability are required: Combined and heating boilers for domestic and industrial needs. Steam boilers, hot air generators and air heaters. Industrial furnaces, air heaters and convectors. Water heaters, IR heaters and package burners. Key features and functions PR modification (pilot ignition with external transformer): The model marked PR is specially adapted for systems with pilot (standing) ignition. First, a small pilot flame is lit, which then ignites the main burner. This requires a separate external high-voltage transformer (not included) and provides exceptional start-up reliability in difficult conditions. Two options for resetting safety lockout: This device supports two ways to exit the lockout state: Manual Reset: Restart is performed by the operator by pressing the Reset button on the housing. Electrical Reset: Reset occurs when power is briefly disconnected and reconnected. Instantaneous ionization flame control: Flame detection is based on its rectifying properties. Reaction time upon flame loss is less than 1 second, guaranteeing immediate
