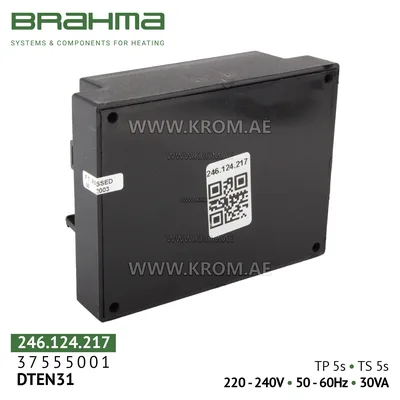

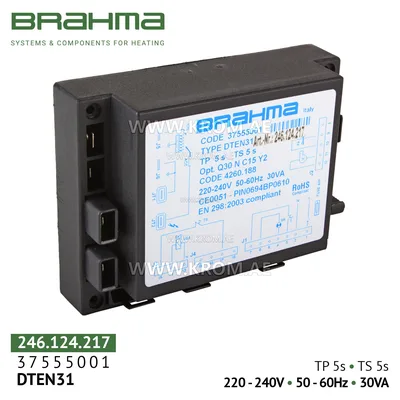

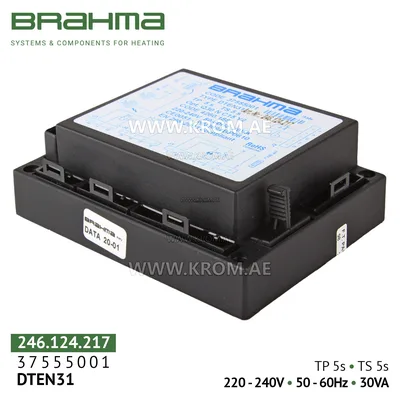

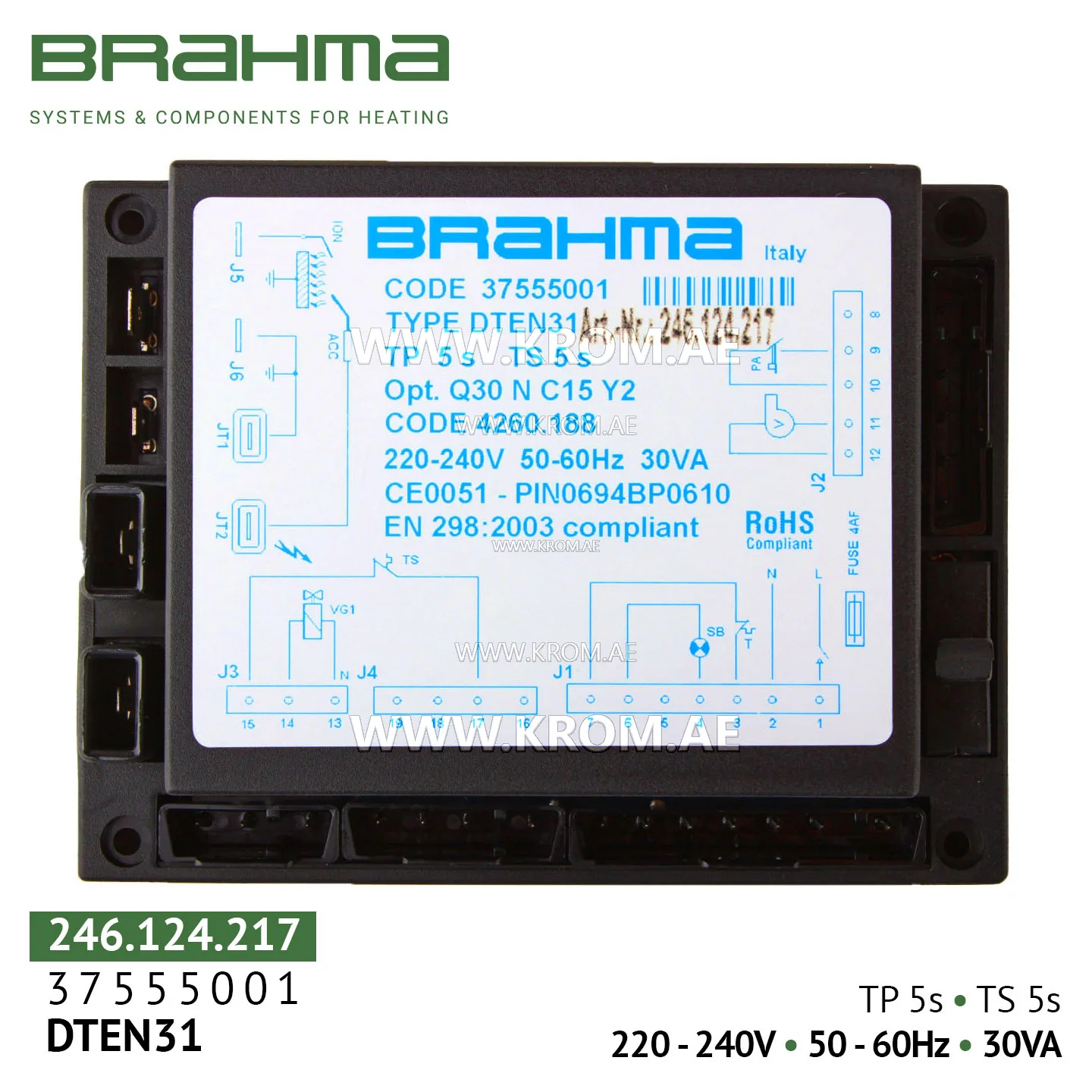

Brahma 37555001 DTEN31 control box

High-tech microprocessor controller Brahma DTEN31 (art. 37555001 / 246.124.217) is a "burner manager" of the DIGITAL MICROFLAT series for full automation and safe operation of two-stage gas burners with electric reset of safety lockout. Purpose and application area: Brahma DTEN31 is a modern microprocessor controller designed for atmospheric gas burners of two-stage type operating in intermittent (cyclic) mode. The device is suitable for burners with or without a fan in the combustion circuit. As a key element of the safety system, it is used in a wide range of heat-generating equipment: heating and combination boilers (domestic and industrial), air heaters, air heaters, furnaces, as well as infrared heaters and water heaters. Main functions and features: Electric reset lockout: The main feature of this model. Unlike versions with manual reset (button), to restart the unit after troubleshooting, it is necessary to briefly disconnect and reapply power. This is convenient for systems with remote control. Two-stage control: Allows the burner to operate at two power levels (partial and full load), optimizing fuel consumption and reducing start/stop cycles. Instant flame monitoring: Provides immediate response to flame loss. Reaction time is less than 1 second, ensuring instant gas shut-off. Built-in powerful ignition transformer: No external ignition unit required, simplifying wiring and installation. Flexible flame monitoring: Supports two types of flame sensors: ionization electrode (standard for gas) and photocell (for oil or in difficult conditions). Built-in E
