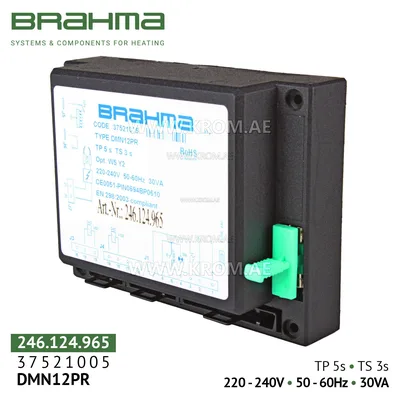

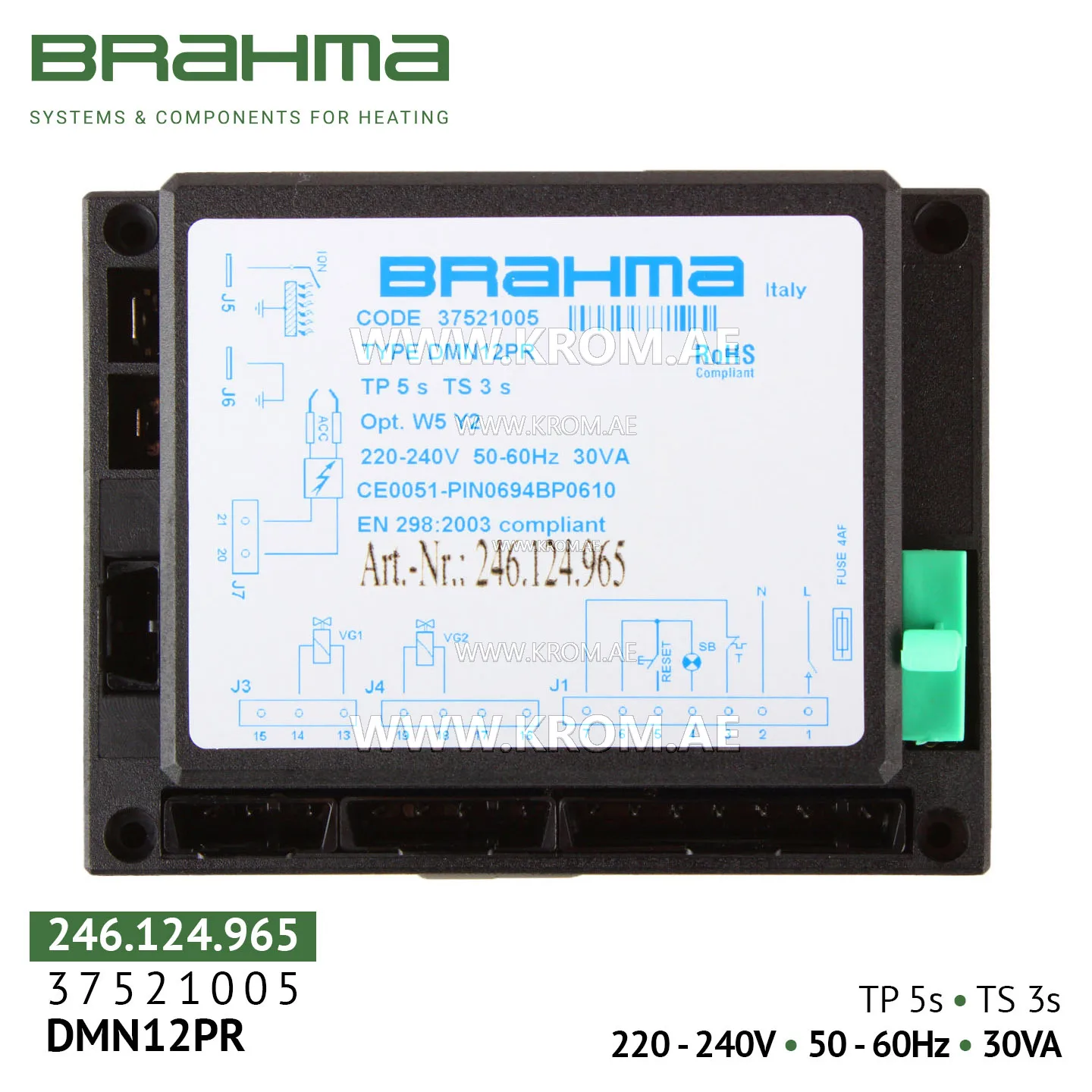

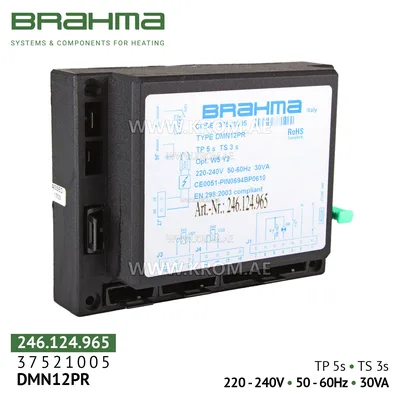

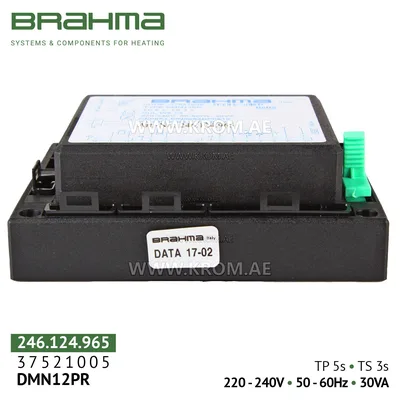

Brahma 37521005 DMN12PR control box

Brahma DMN12PR 37521005 are gas firing devices designed for efficient control of atmospheric gas and liquid fuel burners in systems with a non-constant operation cycle. They have automatic ignition systems with two options for resetting the accident: manual, where the burner is restarted by pressing a button by the operator, and electric, which requires disconnecting and reconnecting the main power supply to resume burner operation. These controllers are used in a variety of devices such as combined boilers, heating installations, steam boilers, air heaters, IR heaters, convectors, water heaters, furnaces and block burners. Specifications: EC certificate (CE PIN 0694BP0610) in accordance with Directives 90/396 and 93/68 on gas equipment; comply with EN 298 (European standard for gas systems and flame detectors); comply with EN 230:2005 (European standard for liquid fuel systems and flame detectors); two independent safety contacts for gas valve control; the ability to control Brahma valves of the VCM0x type; the ability to connect a custom module; direct or pilot ignition; manual reset. Technical information: Rated supply voltage 220-240V, 50-60 Hz; Power Consumption: 30 VA; Temperature: -20 °C - +70 °C; Humidity: Max. 95% at +40 °C; Protection: IP00; Built-in fuse: 4 A; External fuse: 3.15 A; Maximum weight: about 200 g; Maximum cable length of external components: Room thermostat: 20 m, Remote alarm: 20 m, Ignition device (high voltage): 2 m, Other cables: 1 m; Pre-ventilation time (TV/tp): 5 sec; Safety time (ts): 3 sec; Cable set for connection: yes; Dimensions: 10.7x8.1x3.6 cm. Construction: The plastic housing provides reliable protection.
