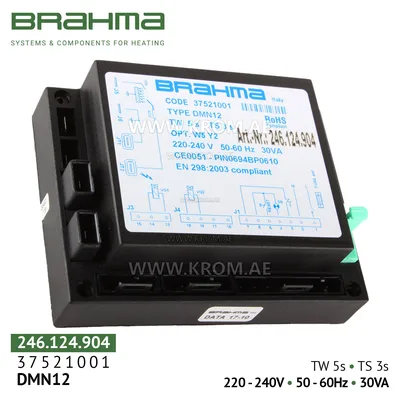

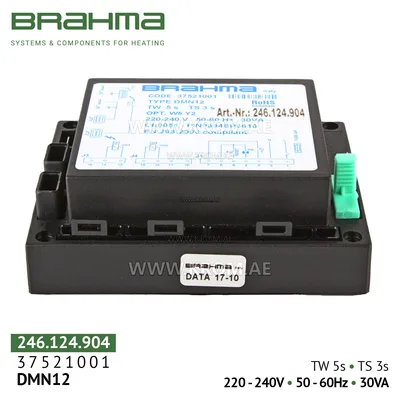

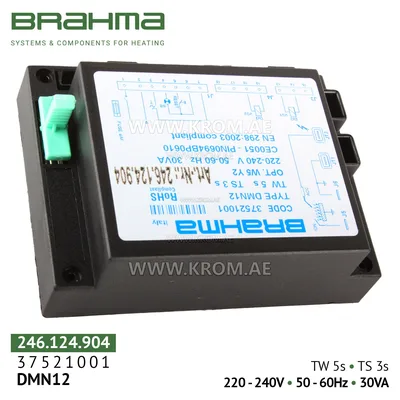

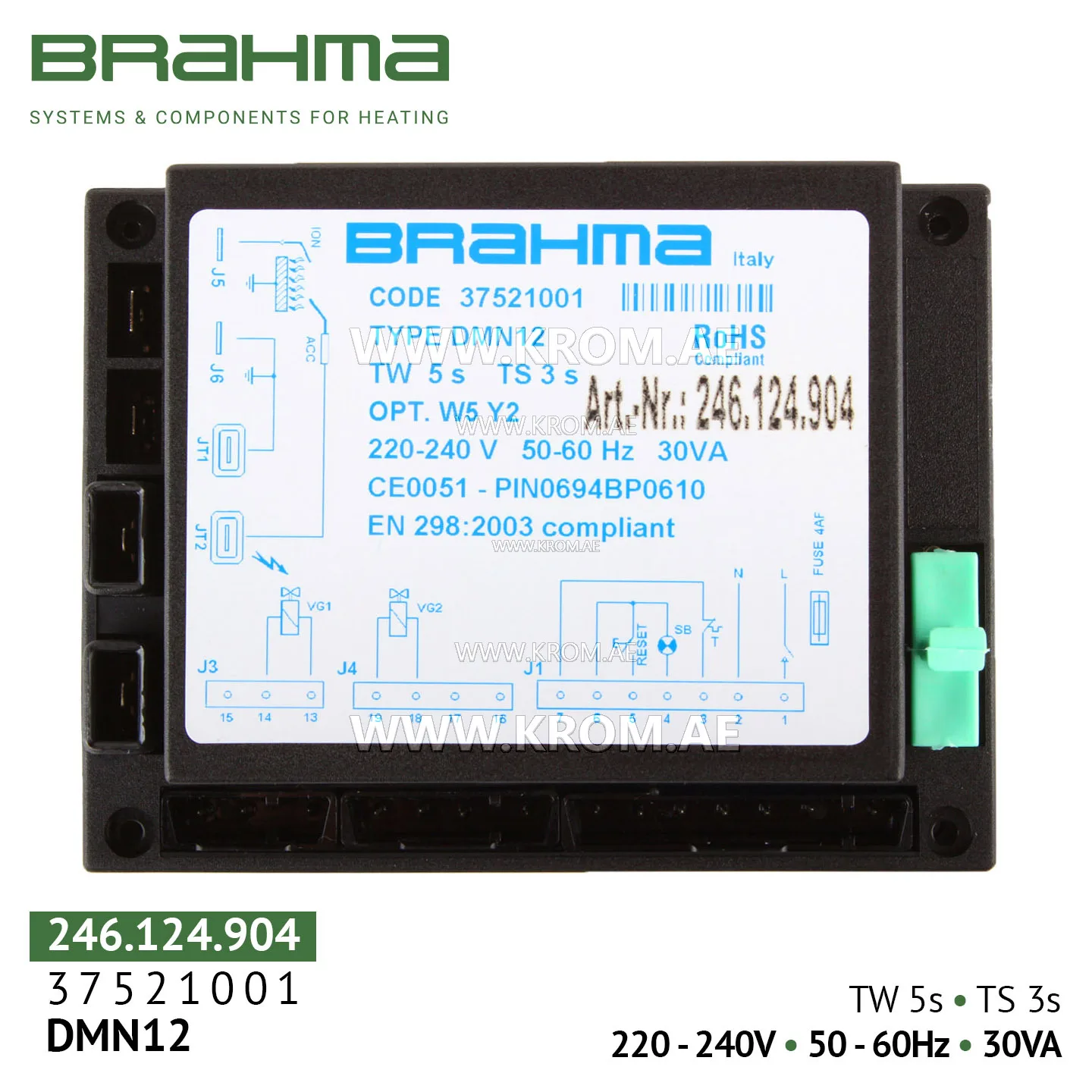

Brahma 37521001 DMN12 control box

Brahma DMN12 is a fully solid-state microprocessor controller ("burner control") that fully automates and ensures safe operation of atmospheric gas and liquid fuel (diesel) burners with two-stage modulation in intermittent mode. It is designed for professional use in heating systems requiring high reliability and uncompromising safety. Purpose and application: Brahma DMN12 (art. 37521001) is a key component for automating ignition processes, flame monitoring, and safe burner shutdown. The controller is compatible with burners from leading brands such as Riello, Baltur, Weishaupt, Lamborghini, and others. The control unit is used in a wide range of heat-generating equipment: Heating and steam boilers (domestic and industrial); Combined boilers; Heat guns, hot air generators; Air heaters and IR heaters, convectors; Water heaters; Industrial furnaces and packaged burners. Main functions and features: Manual reset: A key feature of the model. In case of any emergency, the controller locks and the burner can only be restarted manually by pressing the corresponding reset button on the housing after eliminating the cause of the fault. This eliminates the risk of automatic restart and meets the highest safety class. Two independent safety contacts: For maximum safety, the output to the gas valve is equipped with two independent contacts connected in series. This duplication eliminates the possibility of gas leakage if one of them fails. Instant flame monitoring: Response to flame loss is less than 1 second (typical time), ensuring immediate fuel shut-off to prevent emergency situations.
