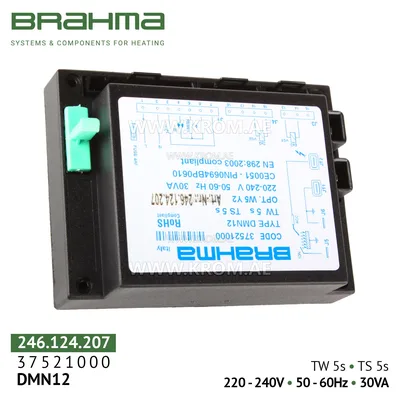

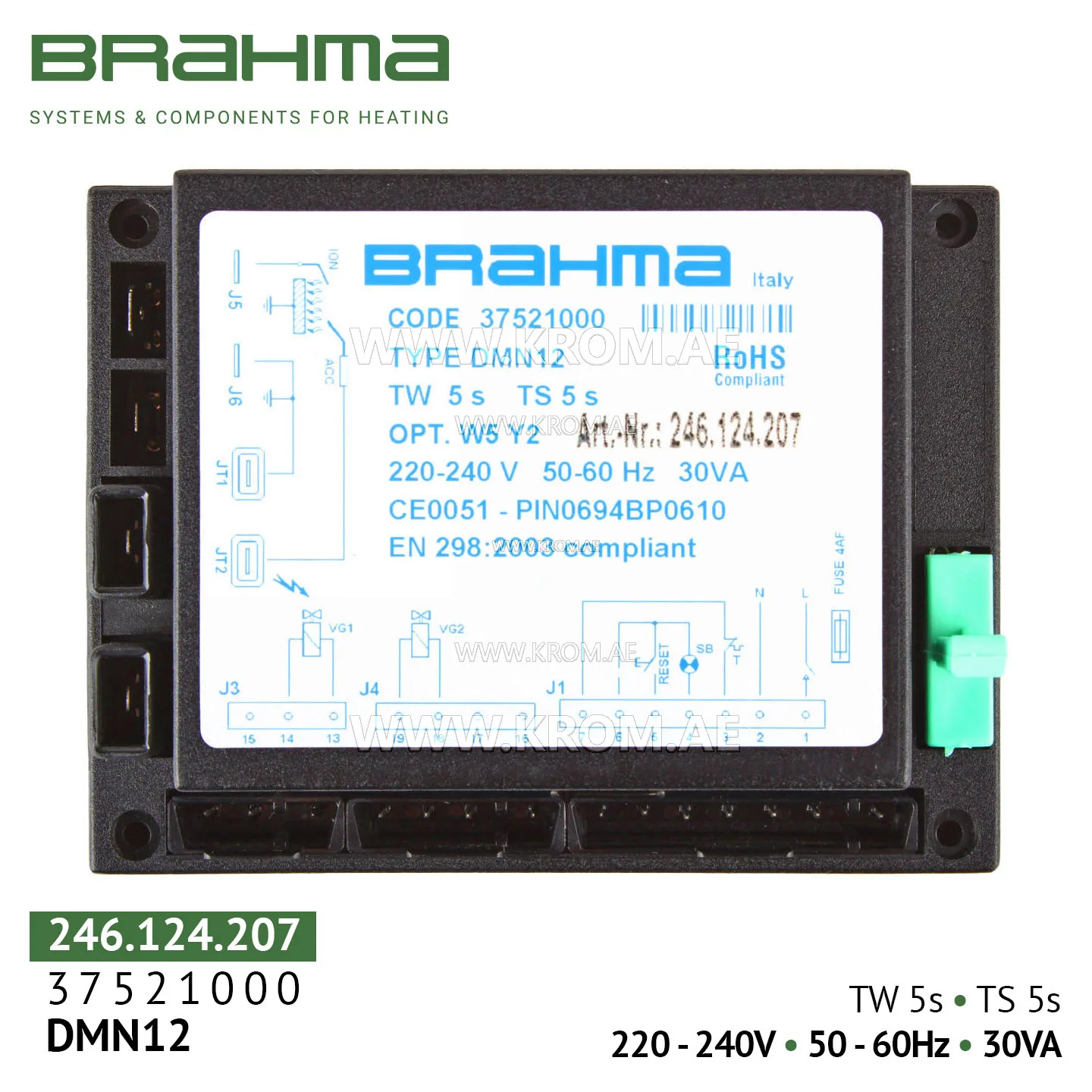

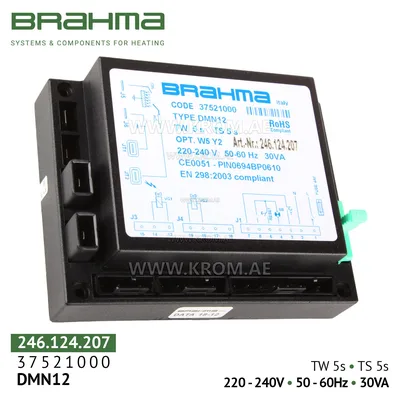

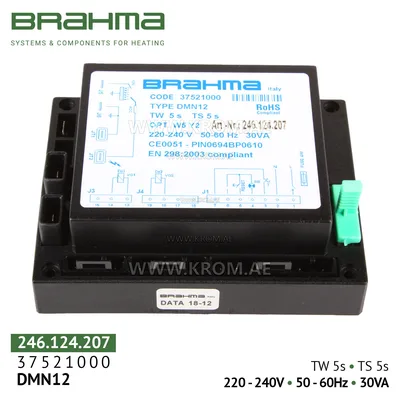

Brahma 37521000 DMN12 control box

Brahma DMN12 is a fully solid-state microprocessor controller ("burner management system") that fully automates and makes safe the operation of atmospheric gas and oil burners with two-stage regulation in intermittent mode. It is designed for professional use in heating systems and industrial heat generating equipment. Purpose and application area Brahma DMN12 (art. 37521000) is a key component for automating ignition processes, flame monitoring and safe burner shutdown in systems with intermittent (cyclic) operation. The controller is compatible with burners from leading brands such as Riello, Baltur, Weishaupt, Lamborghini, and others. The control unit is used in a wide range of heat generating equipment: Heating and steam boilers (domestic and industrial); Combined boilers; Air heaters, hot air generators; Air heaters and IR heaters, convectors; Water heaters; Industrial furnaces and package burners. Main functions and features Manual Reset: A key feature of the model. In any emergency situation, the controller locks out, and burner restart is only possible manually by pressing the corresponding reset button on the housing after eliminating the cause of the fault. This eliminates the risk of automatic restart and meets the highest safety class. Two independent safety contacts: For maximum safety, the gas valve output is equipped with two independent contacts connected in series. This duplication eliminates the possibility of gas leakage if one of them fails. Instantaneous flame monitoring: Reaction to flame loss is less than 1 second, ensuring immediate fuel shut-off to prevent accidents
