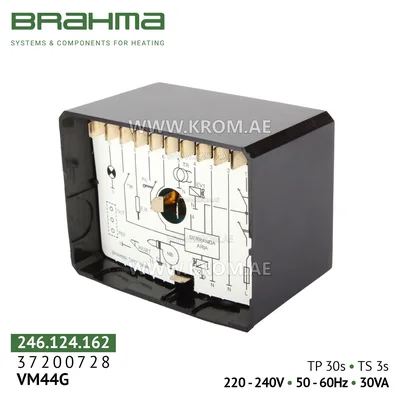

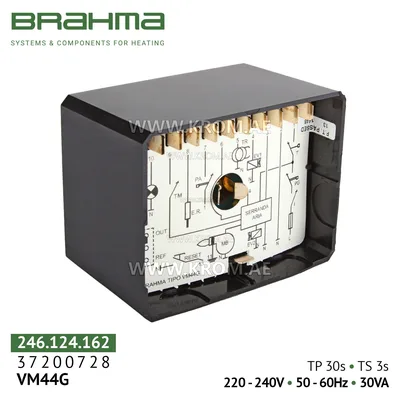

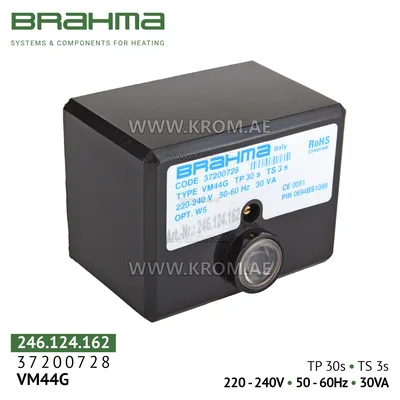

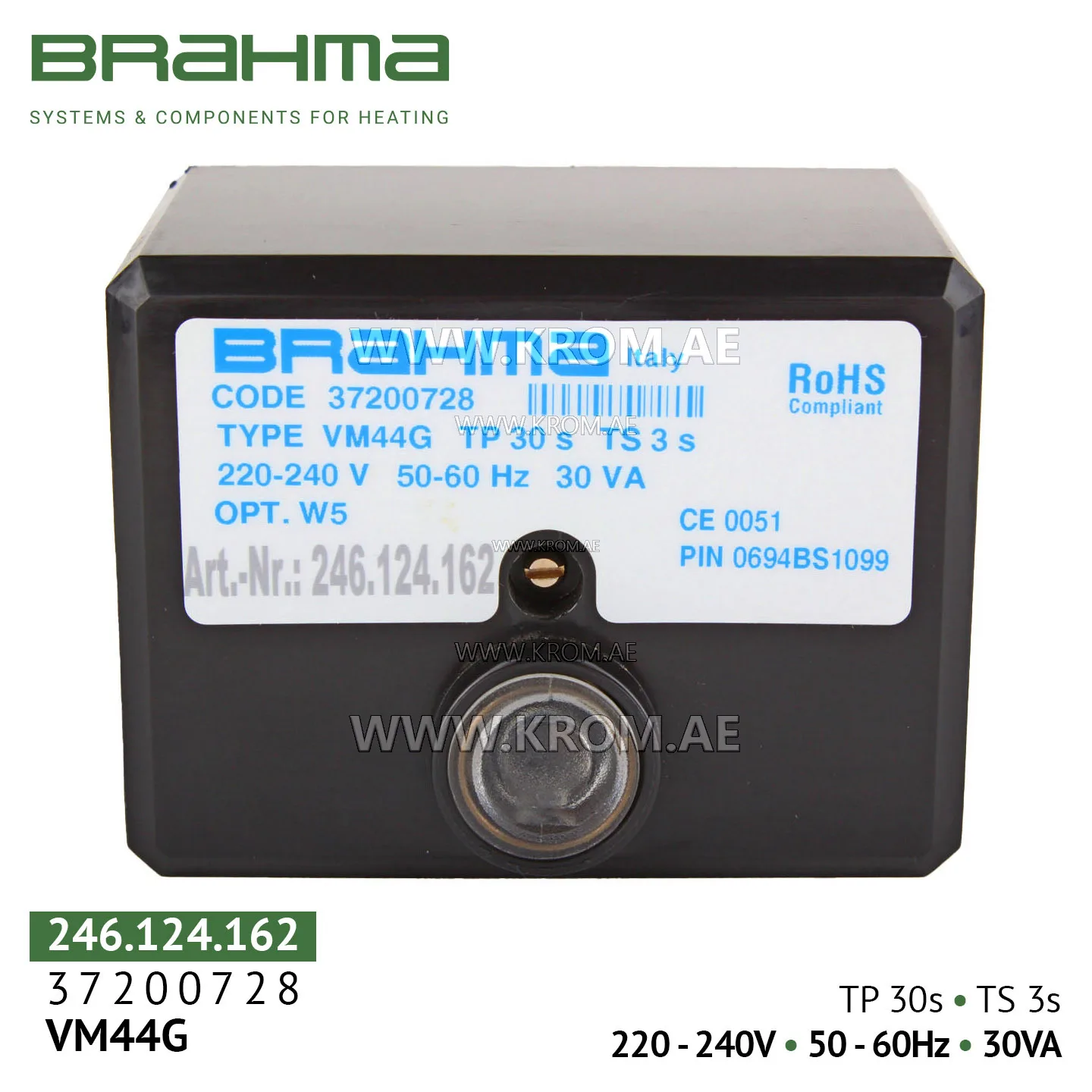

Brahma 37200728 VM44G control box

Brahma VM44G is a microprocessor-based controller ("burner management system") from the EUROGAS series, designed for full automation of ignition, flame monitoring, and safe operation of forced-draft gas burners. The device supports both single-stage and two-stage burners operating in intermittent (cyclic) mode. The VM44G burner control can be used in both domestic and industrial heating and heat generation systems, without limitations on burner thermal power (provided correct timing parameters are set according to the specific application). Applications include: Heating systems: gas boilers for residential buildings, industrial facilities, and boiler houses. Heat generators: hot air generators, air heaters. Industrial equipment: process furnaces, steam boilers, drying chambers. Compatibility with burners: suitable for a wide range of burner brands, including Riello, Baltur, Weishaupt, Giersch, Viessmann, Lamborghini, and others, thanks to standardized timing parameters and universal circuitry. Main functions and features Versatility: The Brahma VM44G burner control is suitable for controlling single-stage and two-stage forced-draft gas burners operating in intermittent mode, making it a flexible solution for a wide range of equipment. It can also be used with oil (liquid fuel) burners. Extended pre-purge time (tv/tp) = 30 seconds. This VM44G variant has a standard pre-purge time of 30 seconds (at startup before ignition). This time is sufficient for thorough purging of the combustion chamber, which is critical for burners installed on boilers with large combustion volumes. Short safety time (ts) = 3 seconds
