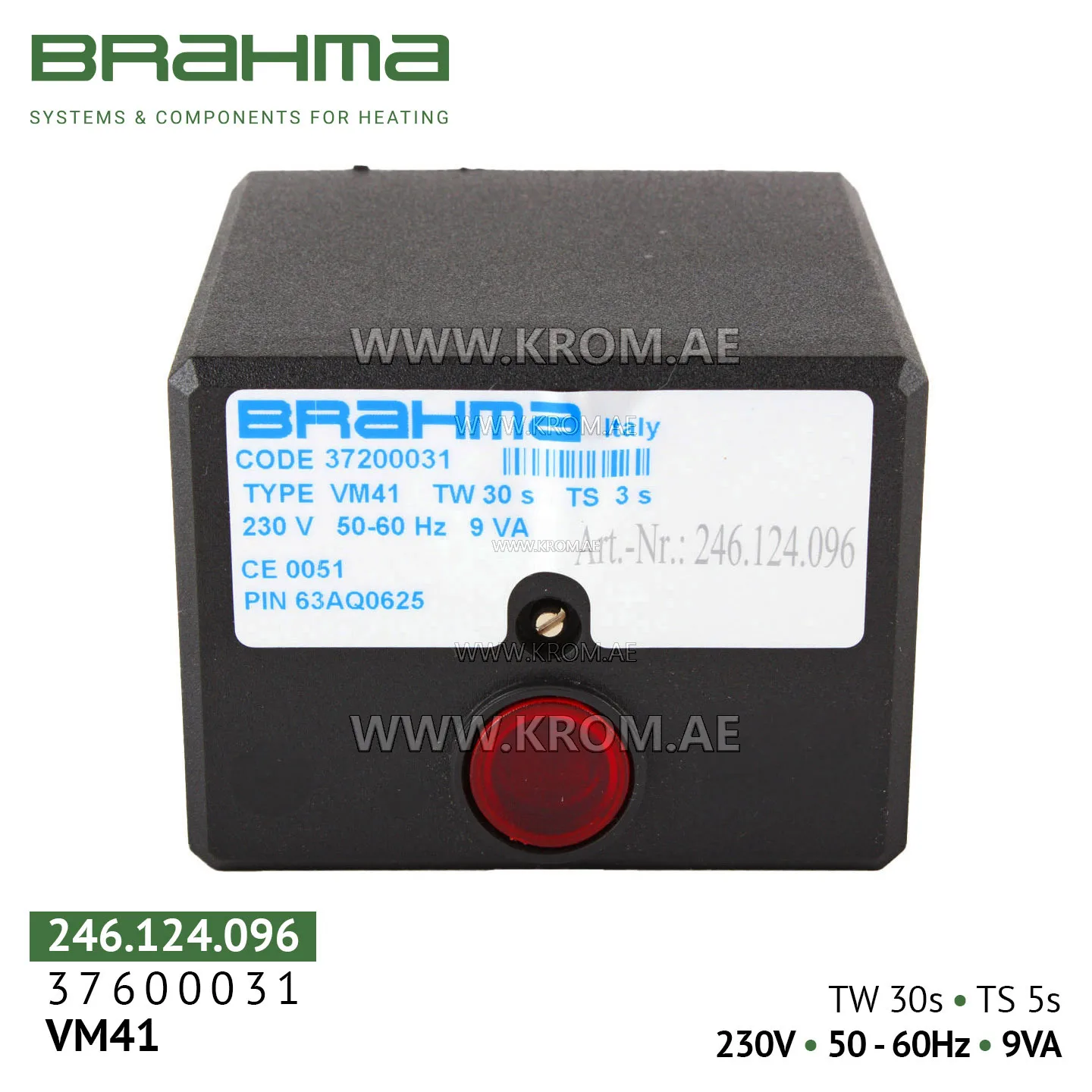

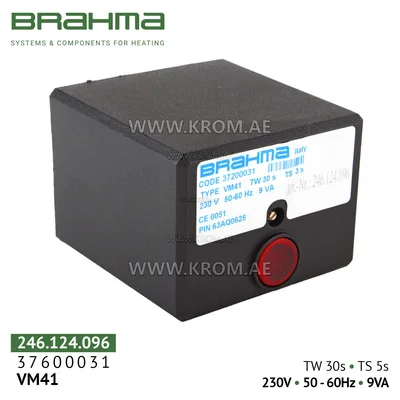

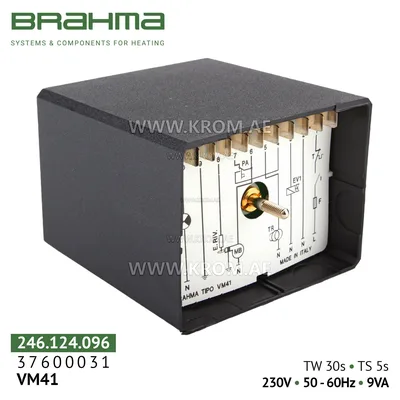

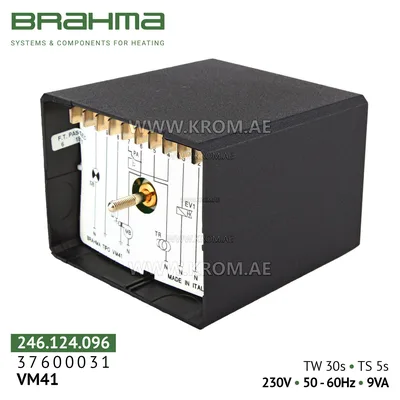

Brahma 37200031 VM41 control box

Brahma VM41 is a microprocessor controller ("burner manager") from the EUROGAS series, designed for automatic ignition control, flame monitoring and safe operation of gas forced draught (with fan) burners operating in intermittent (cyclic) mode. Model VM41 (art. 37200031) is specially designed for single-stage burners (with one flame) with direct ignition. The controller is intended for installations with thermal power up to 120 kW according to EN 676 (European standard for forced draught burners) and up to 350 kW according to DIN 4788 (German standard), making it an optimal solution for both domestic and industrial applications. The application area includes: heating and combination boilers (domestic and industrial); steam generators, heat generators and industrial furnaces; drying and heating installations; OEM equipment where a reliable and compact control unit is required. Main functions and features Support for single-stage burners: model VM41 is designed for burners with one flame, providing direct ignition and reliable ionization monitoring. Ionization flame detection: accurate flame detection via ionization electrode with instant response to flame loss (less than 1 second), meeting the strictest safety standards. High safety class: Manual reset of safety lockout: in any abnormal situation (flame loss, ignition failure) the unit goes into lockout state. Restart is possible only manually, after eliminating the cause, by pressing the "RESET" button on the housing, which prevents spontaneous ignition. Remote reset is also supported. Two independent safety contacts: provide redundancy of critical gas valve control circuits. Built-in varistor and fuse
