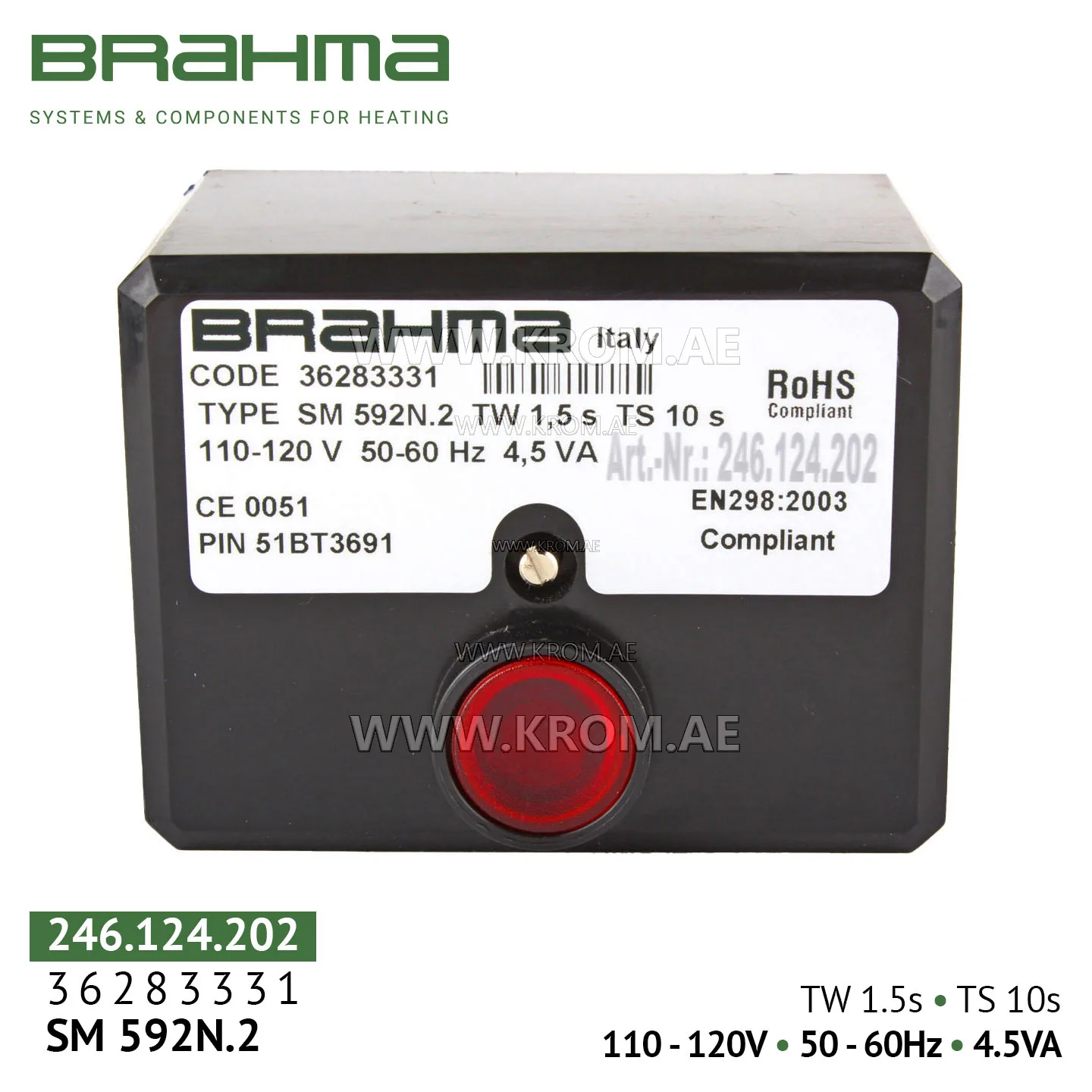

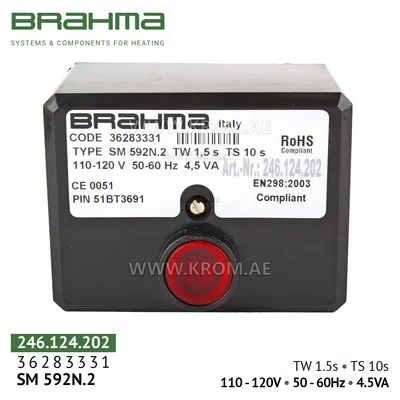

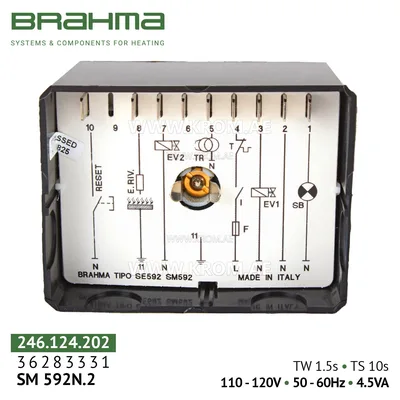

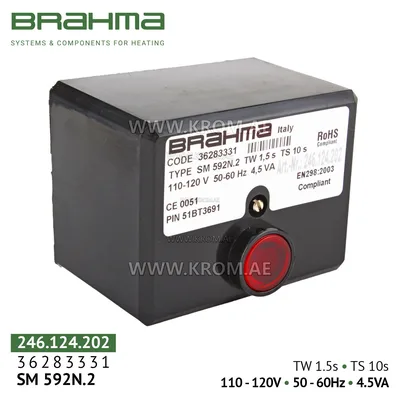

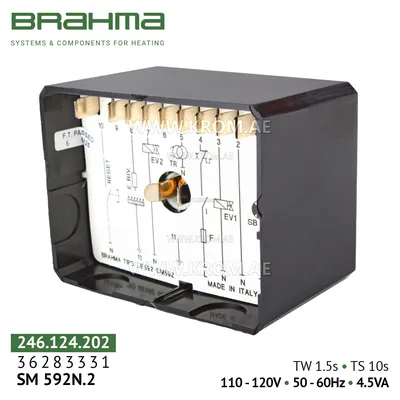

Brahma 36283331 SM592N.2 control box

Brahma SM592N.2 is a microprocessor controller ("burner management system") for automatic ignition control, flame monitoring and safe operation of atmospheric gas burners of both single-stage and two-stage types. The device operates in an intermittent cycle and is suitable for burners with natural draft (without fan) and forced air supply (with fan). Model SM592N.2 (art. 36283331) is a modern modification that may have different time parameters depending on the batch. Before purchasing, be sure to check the values (tv, ts, tw) indicated on the unit housing against the requirements of your burner. Typical combinations: 1.5/5/1.5 s, 1.5/10/1.5 s, 5/10/5 s and others. Application area includes: gas heating and combined boilers (domestic and industrial); air heaters, hot air generators; air heaters, infrared heaters; water heaters, process furnaces, drying chambers; burners Riello, Baltur, Weishaupt, Lamborghini and other brands. ✨ Main functions and features Versatility: Supports both single-stage and two-stage burners, making it a flexible solution for different types of equipment. Full automation of the combustion cycle: The unit independently performs the sequence: check for absence of false flame → pre-purge → ignition (first stage, then second if necessary) → combustion monitoring → safe shutdown upon flame loss. Ionization flame control: Flame detection via ionization electrode (rectification effect). Reaction time upon flame loss is less than 1 second, meeting EN 298 requirements. High safety class: Manual reset lockout – in any abnormal situation (no flame, ionization circuit break, ignition failure
