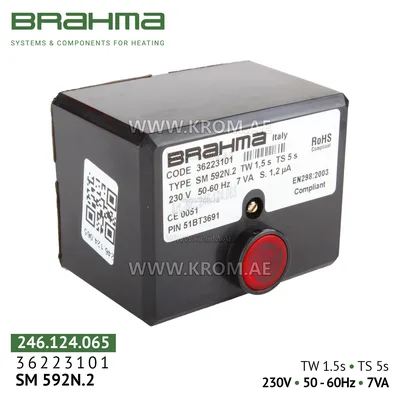

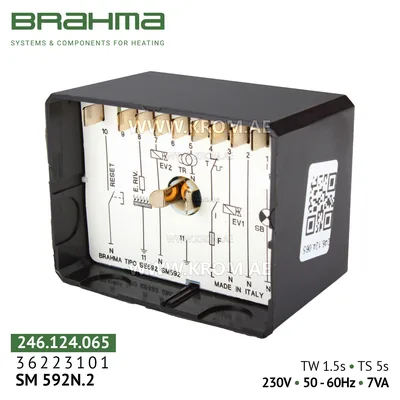

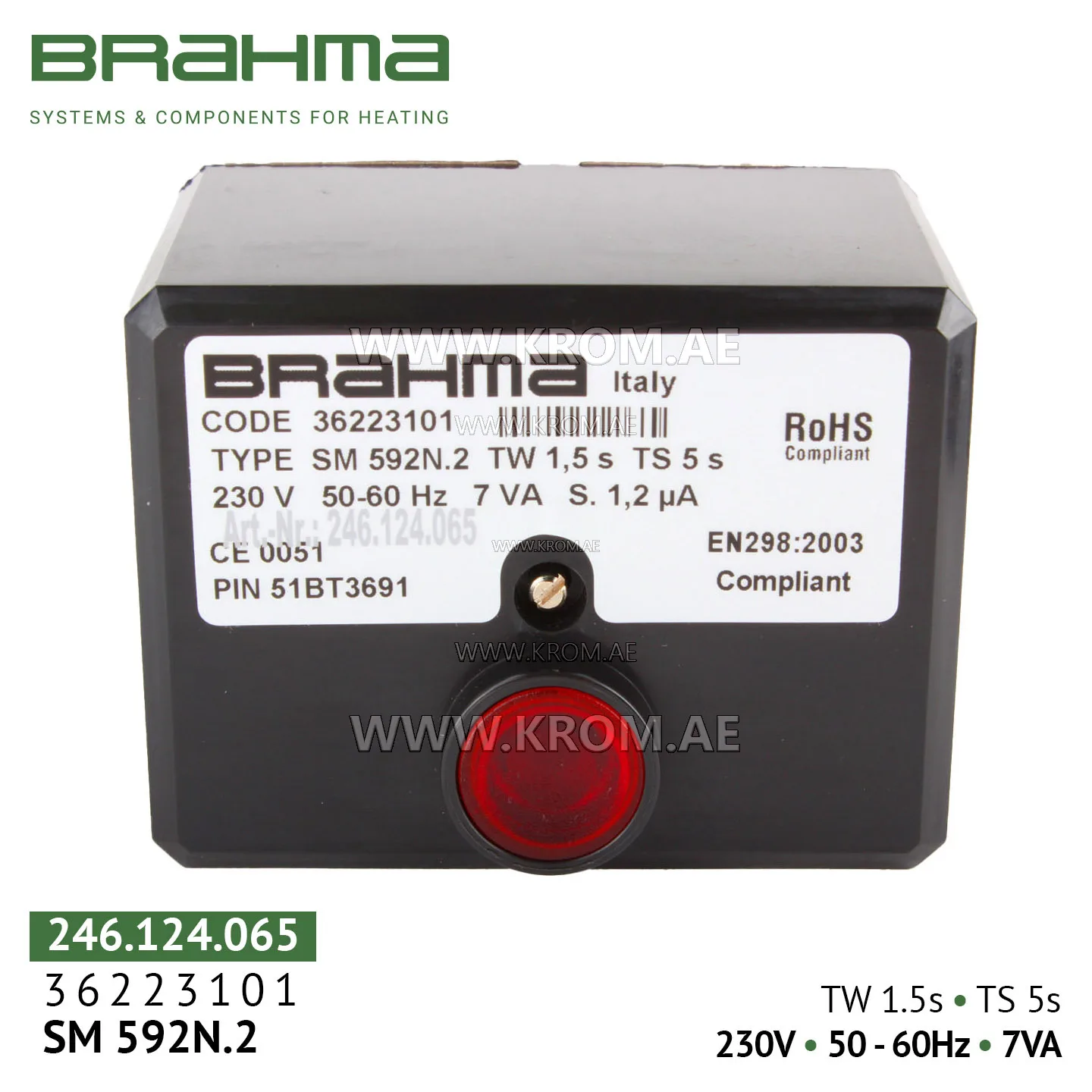

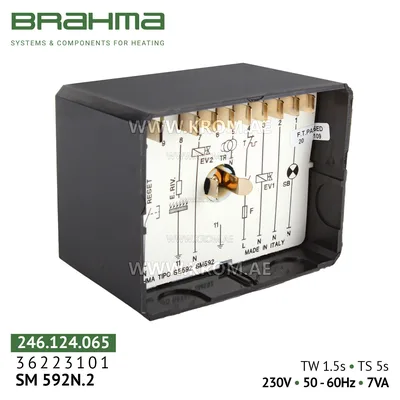

Brahma 36223101 SM592.2 control box

Brahma SM592.2 is a microprocessor-based controller ("burner manager") for automatic ignition control, flame monitoring and safe operation of atmospheric gas burners of both single-stage and two-stage types. The device operates in intermittent cycle and is suitable for burners with natural draft (without fan) and forced air supply (with fan in the combustion circuit). Model SM592.2 (art. 36223101) features increased waiting time (tw) and safety time (ts), making it an ideal choice for equipment requiring longer flame monitoring during ignition. Application area includes: gas heating and combi boilers (domestic and industrial); air heaters, hot air generators; air heaters, infrared heaters; water heaters, process furnaces, drying chambers; burners Riello, Baltur, Weishaupt, Lamborghini and other brands. Main functions and features Versatility: Supports both single-stage and two-stage burners, making it a flexible solution for different types of equipment. Full automation of the combustion cycle: The unit independently performs the sequence: check for absence of false flame → pre-purge → ignition (first stage, then second if necessary) → combustion monitoring → safe shutdown upon flame loss. Ionization flame detection: Flame detection via ionization electrode (rectification effect). Reaction time upon flame loss is less than 1 second, meeting EN 298 requirements. High safety class: Manual reset lockout – in any abnormal situation (no flame, ionization circuit break, ignition failure) the unit goes into emergency lockout. Restart is possible only after eliminating
