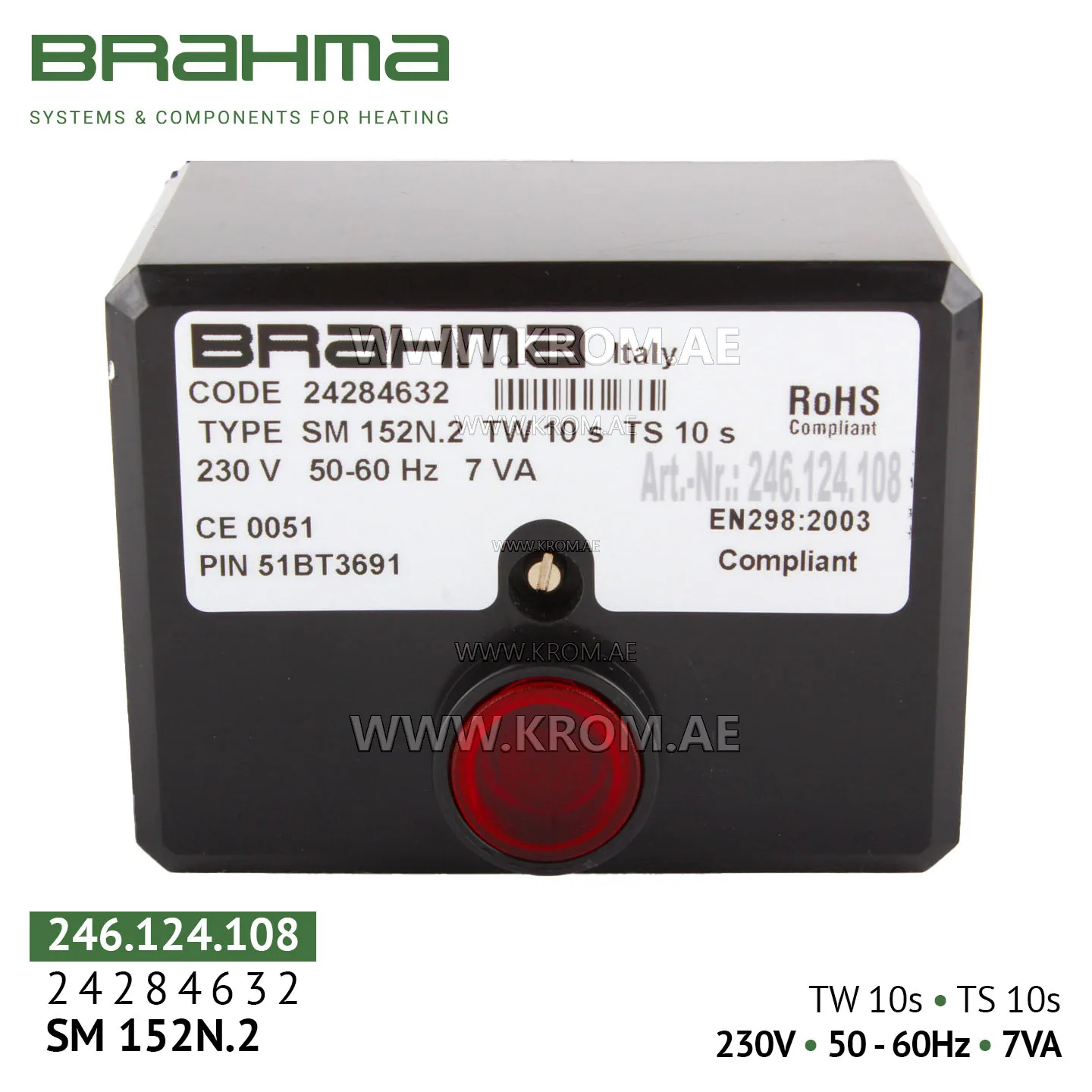

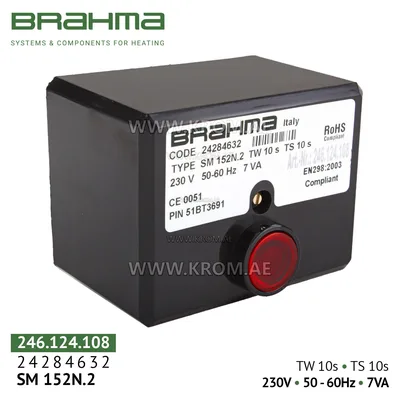

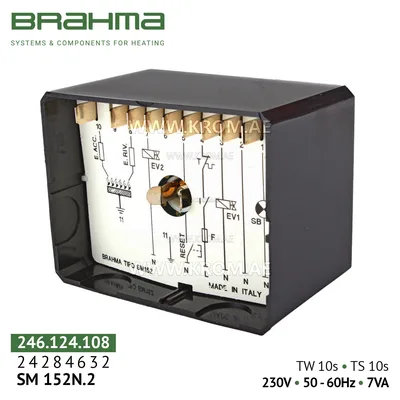

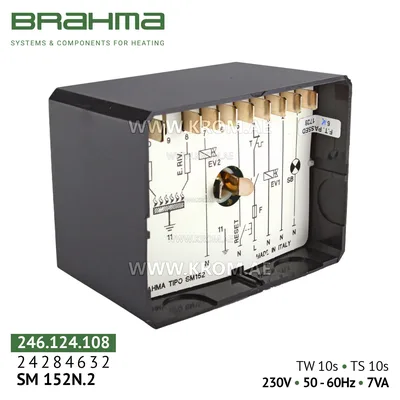

Brahma 24284632 SM152N.2 control box

Brahma SM152N.2 (modification with article 24284632) is a microprocessor controller ("burner management system") designed for automatic ignition control, flame monitoring and safe operation of atmospheric gas burners with intermittent cycle. The device is suitable for burners both with natural draft (without fan) and with forced air supply (with fan in the combustion circuit). Application area includes: gas heating and combined boilers (domestic and industrial); air heaters, hot air generators; air heaters, infrared heaters; water heaters; furnaces, drying chambers, professional kitchen equipment. This modification SM152N.2 with article 24284632 is often used as a replacement for control units in equipment of brands Riello, Baltur, Lamborghini, Weishaupt, Zanussi and others where specific timing parameters are required (see specifications). ✨ Main functions and features Full automation of the combustion cycle: the unit independently performs the sequence: check for absence of false flame → pre-purge → ignition → flame monitoring → safe shutdown upon flame loss. Built-in ignition transformer: the device is equipped with a built-in high-voltage coil, simplifying installation and reducing the number of external components. Ionization flame detection: flame detection is performed via an ionization electrode (rectification effect). Reaction time upon flame loss is less than 1 second, meeting high safety standards. High safety class: Manual reset lockout (Reset button). In case of any abnormal situation (no flame, ionization circuit break, ignition failure) the unit goes into safety lockout, preventing automatic restart. Energy
