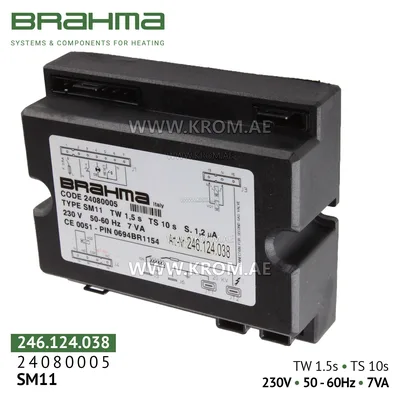

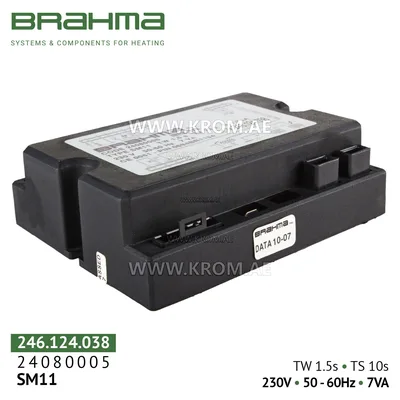

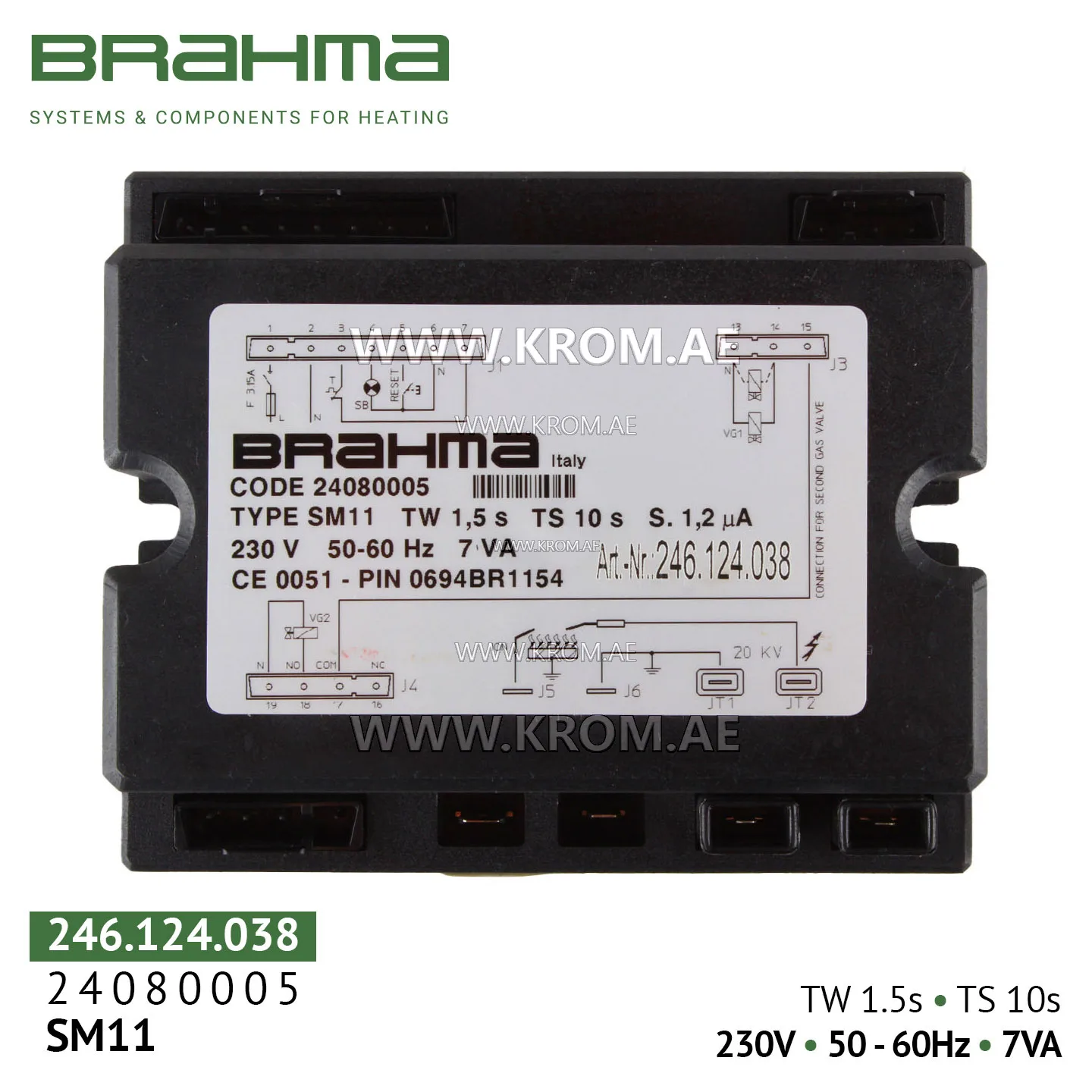

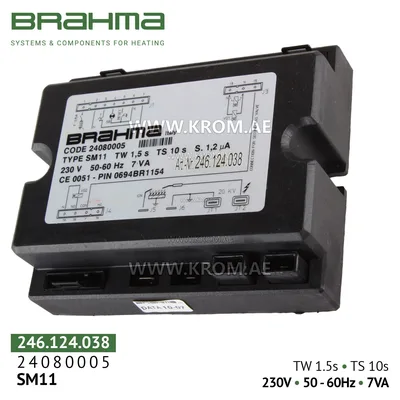

Brahma 24080005 SM11 control box

Brahma SM11 combustion control unit (part no. 24080005 / 246.124.038) is a modern "flame safeguard" designed for automation and safe control of atmospheric gas burners operating in intermittent mode. Purpose and application This device is ideal for a wide range of heat-generating equipment using gas as fuel: Gas heating and combined boilers for private homes, offices and industrial facilities. Heat guns and hot air generators. Infrared heaters and radiant tubes. Water heating installations and instantaneous water heaters. Various furnaces and other equipment with atmospheric burner. ✨ Main functions and features Full automation of the combustion process: The unit controls the complete burner cycle: pre-purge (1.5 s), ignition, flame monitoring and safe shutdown upon flame loss. Ionization flame control: Monitoring is carried out via an ionization electrode that detects the presence of flame by its rectifying properties. Reaction time to flame loss is less than 1 second, minimizing risks. High safety class: In any abnormal situation, the controller locks out and requires manual reset (by pressing the "Reset" button). This approach eliminates spontaneous restart and meets the highest safety class. Built-in ignition transformer: The device is equipped with a built-in high-efficiency ignition transformer, simplifying installation and reducing the number of external components. Surge protection: Built-in protective devices (varistor, fuse) prevent malfunctions due to voltage fluctuations and short circuits. High reliability: The unit is rated for more than 250,000 switching cycles, confirming its reliability
